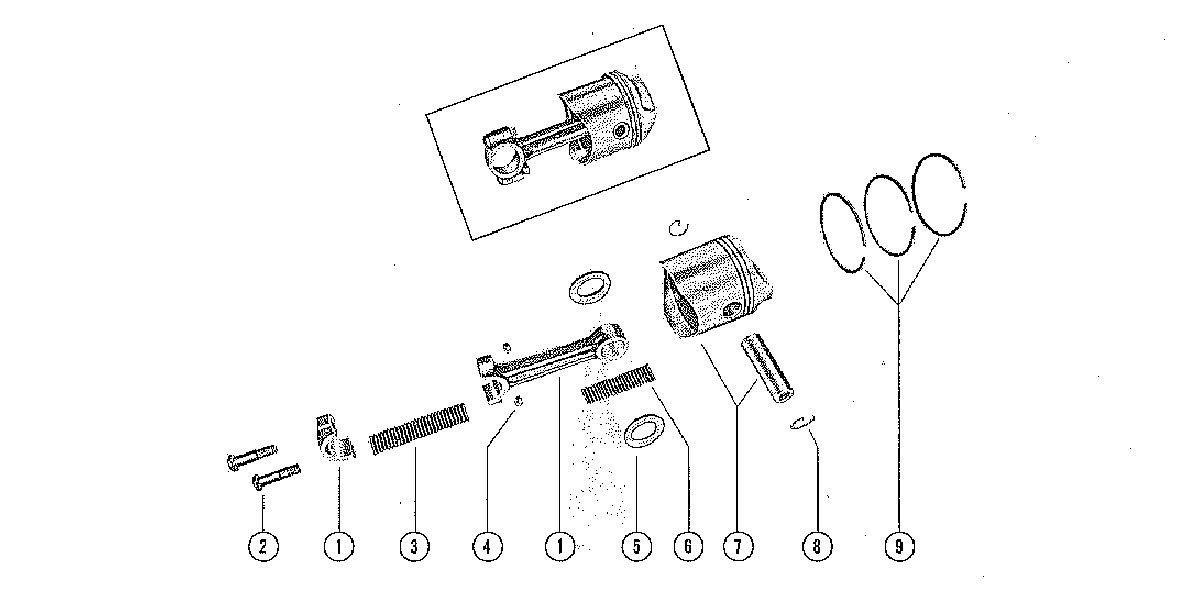

PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 200 1558310 THRU 1866495
-
№АртикулНазвание
-
1600-2748A2 CONNECTING ROD ASSEMBLY (SEE NOTE BELOW)CONNECTING ROD ASSEMBLY (SEE NOTE BELOW)
-
210-45379 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
329-20046T BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
411-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
512-28121 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
629-20063 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
7724-2537A2 PISTON AND PISTON PIN ASSEMBLY
SERIAL 00000000-01858008PISTON AND PISTON PIN ASSEMBLY
SERIAL 00000000-01858008 -
7724-2537A2 PISTON AND PISTON PIN ASSEMBLY
SERIAL 01858009-09999999PISTON AND PISTON PIN ASSEMBLY
SERIAL 01858009-09999999 -
840-20057 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
939-27841A12 RING, PISTONRING, PISTON
-
-724-2553A2 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
SERIAL 00000000-01858008PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
SERIAL 00000000-01858008 -
-724-2553A2 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
SERIAL 01858009-09999999PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
SERIAL 01858009-09999999 -
-39-28616A12 RING, PISTON (.015 OVERSIZE)RING, PISTON (.015 OVERSIZE)
