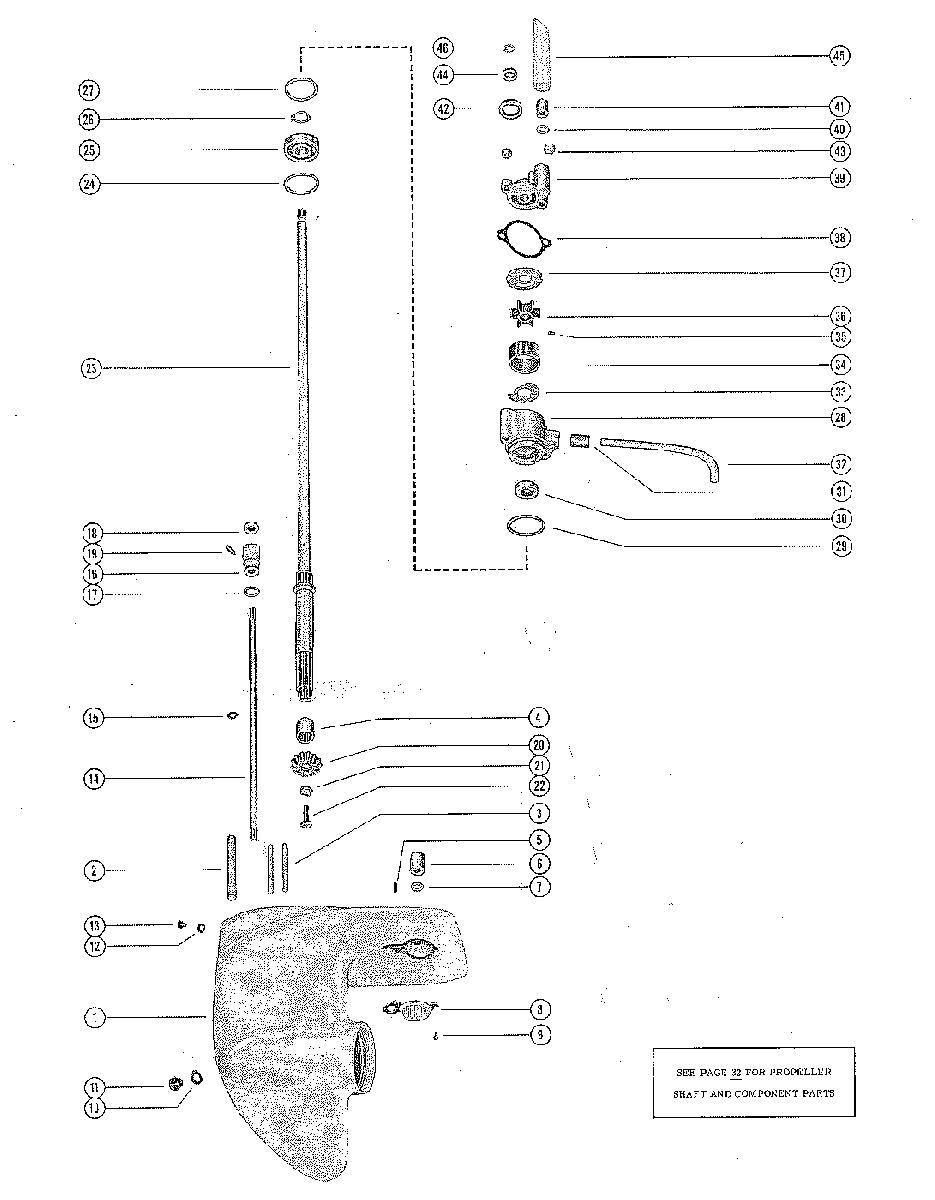

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 200 1558310 THRU 1866495
-
№АртикулНазвание
-
-1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE (SEE NOTE BELOW)GEAR HOUSING ASSEMBLY, COMPLETE (SEE NOTE BELOW)
-
11627-2090A1 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
216-33471 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSINGSTUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
-
316-33472 STUD, WATER PUMP HOUSING TO GEAR HOUSINGSTUD, WATER PUMP HOUSING TO GEAR HOUSING
-
431-28157 BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
517-20201 DOWEL, HOLLOW - DRIVE SHAFT HOUSING STUDDOWEL, HOLLOW - DRIVE SHAFT HOUSING STUD
-
626-26865 SEAL, RUBBER - WATER INTAKE TUBE
SERIAL 00000000-00170817SEAL, RUBBER - WATER INTAKE TUBE
SERIAL 00000000-00170817 -
626-33613 SEAL, RUBBER - WATER INTAKE TUBE
SERIAL 01708179-09999999SEAL, RUBBER - WATER INTAKE TUBE
SERIAL 01708179-09999999 -
723-86215 WASHER, NYLON - INTAKE TUBE SEAL
SERIAL 01708179-09999999WASHER, NYLON - INTAKE TUBE SEAL
SERIAL 01708179-09999999 -
835-33425 SCREEN, WATER INTAKESCREEN, WATER INTAKE
-
910-28642 SCREW, SCREEN TO GEAR HOUSINGSCREW, SCREEN TO GEAR HOUSING
-
1012-191833 WASHER, GREASE FILLER HOLE SCREWWASHER, GREASE FILLER HOLE SCREW
-
1110-79953Q04 SCREW, GREASE FILLER HOLESCREW, GREASE FILLER HOLE
-
1219643 WASHER, GREASE VENT HOLE SCREWWASHER, GREASE VENT HOLE SCREW
-
1310-28653 SCREW, GREASE VENT HOLESCREW, GREASE VENT HOLE
-
1456829A1 SHAFT, SHIFT - LOWER
SERIAL 00000000-01906565SHAFT, SHIFT - LOWER
SERIAL 00000000-01906565 -
1456829A1 SHAFT ASSY, SHIFT - LOWER
SERIAL 01906566-09999999SHAFT ASSY, SHIFT - LOWER
SERIAL 01906566-09999999 -
--25-38933 "O" RING - SHIFT SHAFT
SERIAL 01906566-09999999"O" RING - SHIFT SHAFT
SERIAL 01906566-09999999 -
1553-30899 RING, RETAINING - SHIFT SHAFTRING, RETAINING - SHIFT SHAFT
-
1623-30676A1 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
1725-26802 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
1826-30696 OIL SEAL, SHIFT SHAFT BUSHINGOIL SEAL, SHIFT SHAFT BUSHING
-
1910-39149 SCREW, SHIFT SHAFT BUSHING RETAINERSCREW, SHIFT SHAFT BUSHING RETAINER
-
2043-45227A3 GEAR, PINIONGEAR, PINION
-
2114-20806 TAB WASHER, PINION GEAR TO DRIVE SHAFT SCREWTAB WASHER, PINION GEAR TO DRIVE SHAFT SCREW
-
2210-20807 SCREW, PINION GEAR TO DRIVE SHAFTSCREW, PINION GEAR TO DRIVE SHAFT
-
2345-93300A1 DRIVE SHAFTDRIVE SHAFT
-
2415-20804A1 SHIM, BALL BEARING TO GEAR HOUSINGSHIM, BALL BEARING TO GEAR HOUSING
-
2530-69389 BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
2653-33463 RING, RETAINING - BALL BEARINGRING, RETAINING - BALL BEARING
-
2715-20804A1 SHIM, BALL BEARING TO WATER PUMP HOUSINGSHIM, BALL BEARING TO WATER PUMP HOUSING
-
2846-33408A1 WATER PUMP HOUSING ASSEMBLYWATER PUMP HOUSING ASSEMBLY
-
2925-33466 "O" RING, WATER PUMP HOUSING"O" RING, WATER PUMP HOUSING
-
3026-897154 OIL SEAL, WATER PUMP HOUSINGOIL SEAL, WATER PUMP HOUSING
-
3126-33613 SEAL, WATER INTAKE TUBESEAL, WATER INTAKE TUBE
-
3232-33426 TUBE, WATER INTAKETUBE, WATER INTAKE
-
3333429 PLATE, WATER PUMP HOUSINGPLATE, WATER PUMP HOUSING
-
3420811 INSERT, WATER PUMP HOUSINGINSERT, WATER PUMP HOUSING
-
3528-28784 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
3647-26554 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
3733428 PLATE, FACE - WATER PUMP HOUSING TO COVERPLATE, FACE - WATER PUMP HOUSING TO COVER
-
3827-33427 GASKET, FACE PLATE TO WATER PUMP COVERGASKET, FACE PLATE TO WATER PUMP COVER
-
3933409A1 WATER PUMP COVER ASSEMBLYWATER PUMP COVER ASSEMBLY
-
4023-86215 WASHER, NYLON - WATER PUMP COVER
SERIAL 01708179-09999999WASHER, NYLON - WATER PUMP COVER
SERIAL 01708179-09999999 -
4126-33613 SEAL, WATER PUMP COVERSEAL, WATER PUMP COVER
-
4226-20070 OIL SEA, WATER PUMP COVEROIL SEA, WATER PUMP COVER
-
4311-24652 NUT, WATER PUMP HOUSING STUDSNUT, WATER PUMP HOUSING STUDS
-
4412-20684 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
4523-45170 SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
4625-26802 "O" RING, UPPER - DRIVE SHAFT"O" RING, UPPER - DRIVE SHAFT
