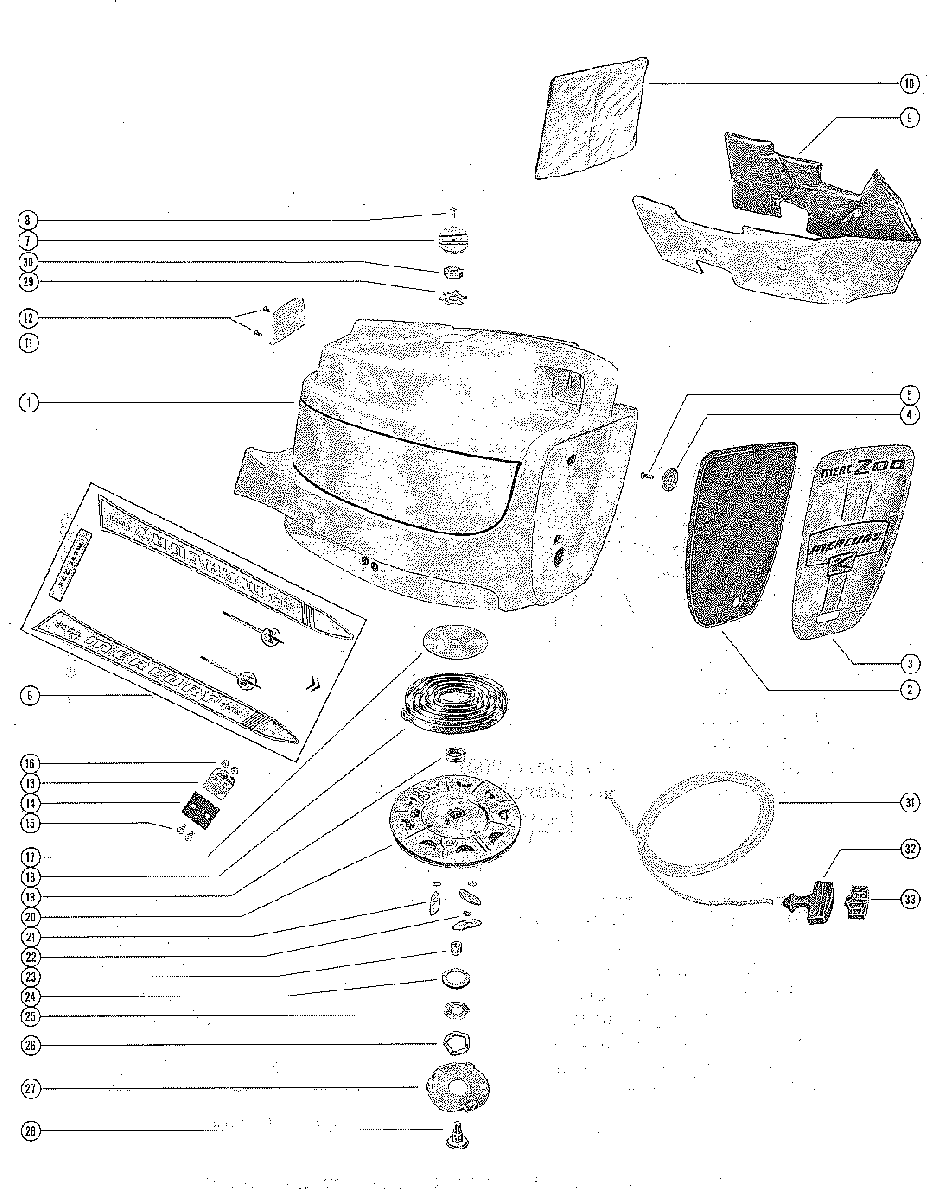

TOP COWL AND STARTER ASSEMBLY (MERC 200) для Mercury - 200 1558310 THRU 1866495
-
№АртикулНазвание
-
1176-1425 TOP COWLTOP COWL
-
233733 PLAQUE, FRONT-TOP COWLPLAQUE, FRONT-TOP COWL
-
337-33732 DECAL, FRONT PLAQUE-TOP COWLDECAL, FRONT PLAQUE-TOP COWL
-
412-33961 WASHER, FRONT PLAQUE TO TOP COWLWASHER, FRONT PLAQUE TO TOP COWL
-
510-25255 SCREW, FRONT PLAQUE TO TOP COWLSCREW, FRONT PLAQUE TO TOP COWL
-
637-89323A80 DECAL SET, TOP COWLDECAL SET, TOP COWL
-
728041 COVER, TRIM-TOP COWLCOVER, TRIM-TOP COWL
-
810-28156 SCREW, TRIM COVER TO TOP COWLSCREW, TRIM COVER TO TOP COWL
-
933575 BLANKET, TOP COWL-FRONT AND SIDEBLANKET, TOP COWL-FRONT AND SIDE
-
1028278 BLANKET, TOP COWL-REARBLANKET, TOP COWL-REAR
-
1128823 SCREEN, VENT-TOP COWLSCREEN, VENT-TOP COWL
-
1210-62568 SCREW, SCREEN TO TOP COWLSCREW, SCREEN TO TOP COWL
-
1328113 BRACKET, TOP COWL MOUNTINGBRACKET, TOP COWL MOUNTING
-
1427-28448 GASKET, TOP COWL MOUNTING BRACKETGASKET, TOP COWL MOUNTING BRACKET
-
1510-29072 SCREW, MOUNTING BRACKET TO TOP COWLSCREW, MOUNTING BRACKET TO TOP COWL
-
1611-27164 NUT, MOUNTING BRACKET SCREWNUT, MOUNTING BRACKET SCREW
-
1720155 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
1824-29340T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
1923-20159 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
2050-64008A1 SHEAVE ASSEMBLY, STARTERSHEAVE ASSEMBLY, STARTER
-
2120162 PAWL, STARTERPAWL, STARTER
-
2213-29402 WASHER, WAVE - STARTER PAWLWASHER, WAVE - STARTER PAWL
-
2323-20158 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
2426179 RETAINER, WAVE WASHERRETAINER, WAVE WASHER
-
2512-26180 WASHER, WAVE WASHER RETAINERWASHER, WAVE WASHER RETAINER
-
2613-20160 WASHER, WAVE - STARTER SHEAVE TENSIONWASHER, WAVE - STARTER SHEAVE TENSION
-
2720164 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
2820157 SHAFT, SHEAVESHAFT, SHEAVE
-
2914-20165 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
3011-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
3150-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
3228747 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
3379470A1 RETAINER, STARTER CABLE HANDLERETAINER, STARTER CABLE HANDLE
-
--92-86166Q1 GLUE, ADHESIVE - BLANKET FASTENINGGLUE, ADHESIVE - BLANKET FASTENING
