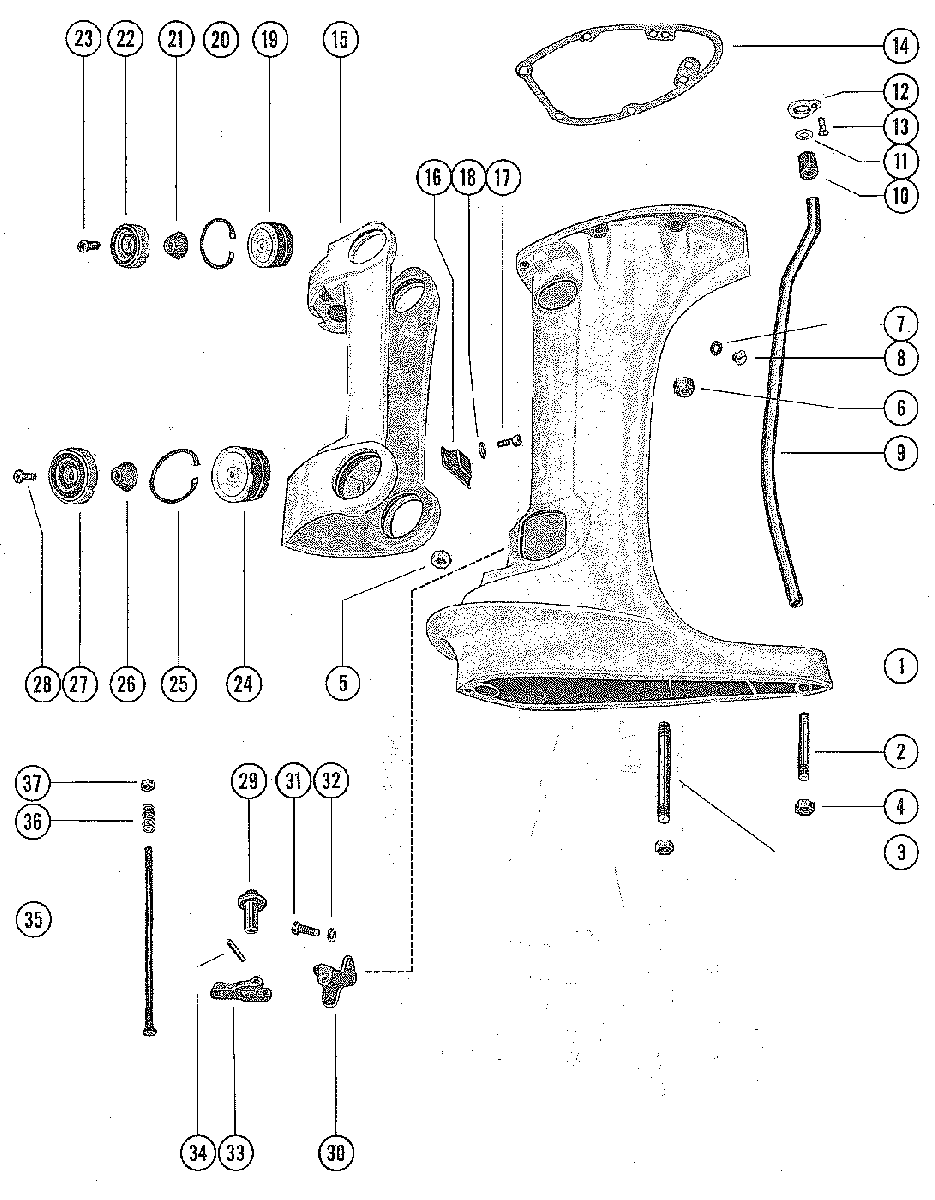

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 200 1558310 THRU 1866495
-
№АртикулНазвание
-
11549-2091A2 DRIVE SHAFT ASSEMBLYDRIVE SHAFT ASSEMBLY
-
216-33469 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
316-33470 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
411-82670911 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDNUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
-
511-8M0042636 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDNUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
-
611-24652 NUT, POWERHEAD TO DRIVE SHAFT HOUSINGNUT, POWERHEAD TO DRIVE SHAFT HOUSING
-
712-191833 WASHER, DRIVE SHAFT HOUSING FLUSHING HOLE SCREWWASHER, DRIVE SHAFT HOUSING FLUSHING HOLE SCREW
-
810-79953Q04 SCREW, DRIVE SHAFT HOUSING FLUSHING HOLESCREW, DRIVE SHAFT HOUSING FLUSHING HOLE
-
932-33494 TUBE, WATER INLETTUBE, WATER INLET
-
1026-26865 SEAL, RUBBER - WATER INLET TUBE
SERIAL 00000000-01708178SEAL, RUBBER - WATER INLET TUBE
SERIAL 00000000-01708178 -
1026-25329 SEAL, RUBBER - WATER INLET TUBE
SERIAL 01708179-09999999SEAL, RUBBER - WATER INLET TUBE
SERIAL 01708179-09999999 -
1123-86215 WASHER, NYLON - INLET TUBE SEALWASHER, NYLON - INLET TUBE SEAL
-
1233513 RETAINER, WATER INLET TUBE SEALRETAINER, WATER INLET TUBE SEAL
-
1310-20540 SCREW, INLET TUBE SEAL RETAINER TO BOTTOM COWLSCREW, INLET TUBE SEAL RETAINER TO BOTTOM COWL
-
1427-33516 GASKET, POWERHEAD TO DRIVE SHAFT HOUSINGGASKET, POWERHEAD TO DRIVE SHAFT HOUSING
-
151548-2089 SADDLESADDLE
-
1633420 BUMPER, RUBBER - SADDLEBUMPER, RUBBER - SADDLE
-
1710-20540 SCREW, RUBBER BUMPER TO SADDLESCREW, RUBBER BUMPER TO SADDLE
-
1813-26992 LOCKWASHER, RUBBER BUMPER SADDLE SCREWLOCKWASHER, RUBBER BUMPER SADDLE SCREW
-
1985003 MOUNT, RUBBER (UPPER)MOUNT, RUBBER (UPPER)
-
2053-23720 RING, RETAINING - UPPER MOUNTRING, RETAINING - UPPER MOUNT
-
2123-31270 SPACER, UPPER MOUNT COVER RETAINING SCREWSPACER, UPPER MOUNT COVER RETAINING SCREW
-
2230887 COVER, UPPER MOUNTCOVER, UPPER MOUNT
-
2310-33726 SCREW, UPPER MOUNT COVER RETAININGSCREW, UPPER MOUNT COVER RETAINING
-
2479948A1 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
2553-8M0051043 RING, RETAINING - LOWER MOUNTRING, RETAINING - LOWER MOUNT
-
2623-31270 SPACER, LOWER MOUNT COVER RETAINING SCREWSPACER, LOWER MOUNT COVER RETAINING SCREW
-
2747943 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
2810-33726 SCREW, LOWER MOUNT COVER RETAININGSCREW, LOWER MOUNT COVER RETAINING
-
2939241A1 CAM COUPLING ASSEMBLY, SHIFT SHAFT
SERIAL 00000000-01906565CAM COUPLING ASSEMBLY, SHIFT SHAFT
SERIAL 00000000-01906565 -
2939241A1 CAM COUPLING ASSEMBLY, SHIFT SHAFT
SERIAL 01906566-09999999CAM COUPLING ASSEMBLY, SHIFT SHAFT
SERIAL 01906566-09999999 -
3035653 RETAINER, REVERSE LOCK CAMRETAINER, REVERSE LOCK CAM
-
3110-20540 SCREW, CAM RETAINER TO DRIVE SHAFT HOUSINGSCREW, CAM RETAINER TO DRIVE SHAFT HOUSING
-
3213-26992 LOCKWASHER, REVERSE LOCK CAM RETAINER SCREWLOCKWASHER, REVERSE LOCK CAM RETAINER SCREW
-
3333407 LEVER, REVERSE LOCK CAMLEVER, REVERSE LOCK CAM
-
3417-58998 ROLL PIN, REVERSE LOCK CAM LEVER TO RETAINERROLL PIN, REVERSE LOCK CAM LEVER TO RETAINER
-
3533495 LINK ROD, REVERSE LOCKLINK ROD, REVERSE LOCK
-
3624-33413 SPRING, TENSION - REVERSE LOCK LINK RODSPRING, TENSION - REVERSE LOCK LINK ROD
-
3711-57146 NUT, REVERSE LOCK LINK RODNUT, REVERSE LOCK LINK ROD
