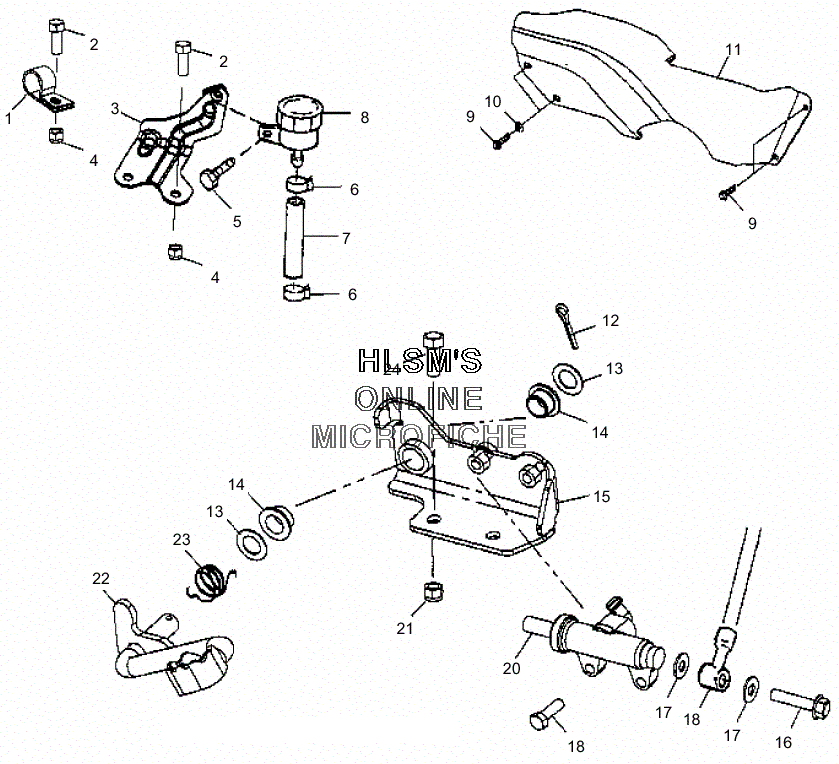

BRAKE - REAR MASTER CYLINDER для Polaris SCRAMBLER 2X4 (A00BA38CA) - 2000 года выпуска
-
№АртикулНазвание
-
17080880 CLAMP, HOSE (.625 DIA.) (VNL COATED)CLAMP, HOSE (.625 DIA.) (VNL COATED)
-
27512113 SCREWSCREW
-
35244091-067 BRACKET, RESERVOIR MOUNT (BLACK)BRACKET, RESERVOIR MOUNT (BLACK)
-
47542122 NUT, LOCKNUT, LOCK
-
57512208 SCREWSCREW
-
67080003 CLAMP, HOSECLAMP, HOSE
-
71910404 HOSE, RESERVOIR (1/4 I.D.) (4.75 IN)HOSE, RESERVOIR (1/4 I.D.) (4.75 IN)
-
81930854 RESERVOIR ASSY., REAR BRAKERESERVOIR ASSY., REAR BRAKE
-
97512232 BOLTBOLT
-
107558301 WASHERWASHER
-
115433547 BUSHING, RAD RODBUSHING, RAD ROD
-
127661401 COTTER PINCOTTER PIN
-
137555919 WASHERWASHER
-
145431107 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
151910375-067 MOUNT, BRAKE CDS (BLACK)MOUNT, BRAKE CDS (BLACK)
-
161930674 BOLT, BANJO BRAKEBOLT, BANJO BRAKE
-
175410988 SEALSEAL
-
197515179 SCREWSCREW
-
201910311 BRAKE MASTER CYL, FOOT BANJOBRAKE MASTER CYL, FOOT BANJO
-
217542324 NUTNUT
-
221910377-067 BRAKE ROD, CDS GEN 3 (BLACK)BRAKE ROD, CDS GEN 3 (BLACK)
-
237041750 SPRING, TORSION BRAKESPRING, TORSION BRAKE
-
247512383 BOLTBOLT
