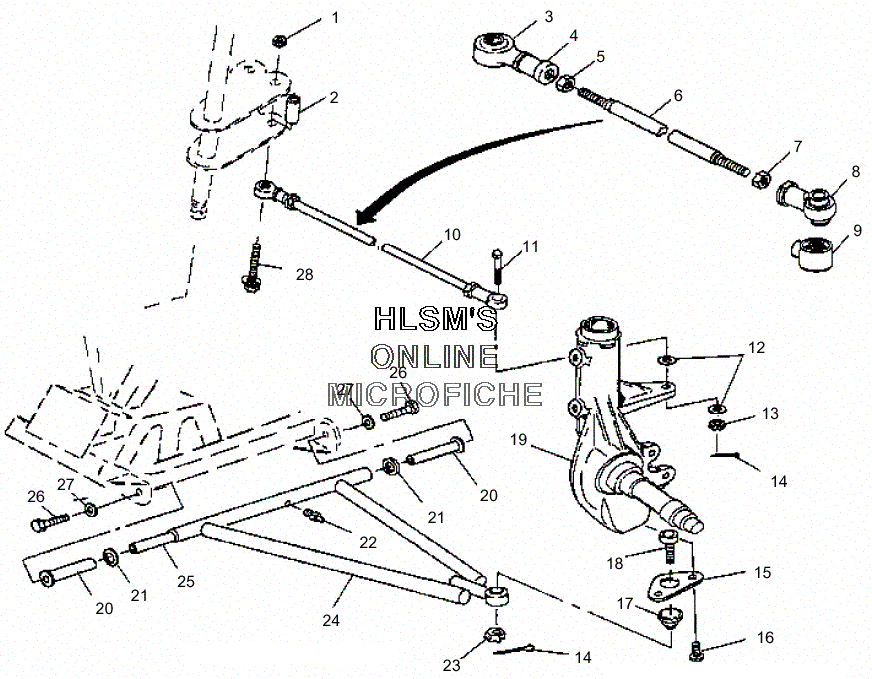

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris SCRAMBLER 2X4 (A00BA38CA) - 2000 года выпуска
-
№АртикулНазвание
-
17542403 NUT LOCKNUT LOCK
-
25333367 BUSHINGBUSHING
-
35411291 SEAL,BOOTROD END (1/2 IN)SEAL,BOOTROD END (1/2 IN)
-
47061034 ROD END (RIGHT)ROD END (RIGHT)
-
57542711 NUT-JAMNUT-JAM
-
65020927 ROD,TIEROD,TIE
-
77547028 NUT,JAM (LEFT)NUT,JAM (LEFT)
-
87061054 ROD,END (10MM) (1/2-20) (42 DEG) (LEFT)ROD,END (10MM) (1/2-20) (42 DEG) (LEFT)
-
95411920 BOOT, SEAL ROD END (10MM)BOOT, SEAL ROD END (10MM)
-
101820806 TIE,ROD (1/2-20X14.0) ASSY.TIE,ROD (1/2-20X14.0) ASSY.
-
117517674 BOLT,HEXAGON WASH HEADBOLT,HEXAGON WASH HEAD
-
127556099 WASHERWASHER
-
137546904 NUT, CASTLENUT, CASTLE
-
147661203 PIN COTTERPIN COTTER
-
155240717 BRACKET,BALLJOINTBRACKET,BALLJOINT
-
167512284 BOLT, SOCKETBOLT, SOCKET
-
175410548 BOOT, RUBBERBOOT, RUBBER
-
187080673 BALL JOINT (52 DEG)BALL JOINT (52 DEG)
-
205433066 BUSHING, A-ARM LONG BLOCKBUSHING, A-ARM LONG BLOCK
-
215020677 BUSHING, A-ARM SPACERBUSHING, A-ARM SPACER
-
227080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
237542438 NUT, CASTLENUT, CASTLE
-
242200560 A-FRAME KIT (LEFT)A-FRAME KIT (LEFT)
-
242200561 A-FRAME KIT (RIGHT)A-FRAME KIT (RIGHT)
-
255020681 SHAFT, A-ARMSHAFT, A-ARM
-
267512492 SCREWSCREW
-
277552603 WASHERWASHER
-
287517527 BOLTBOLT
