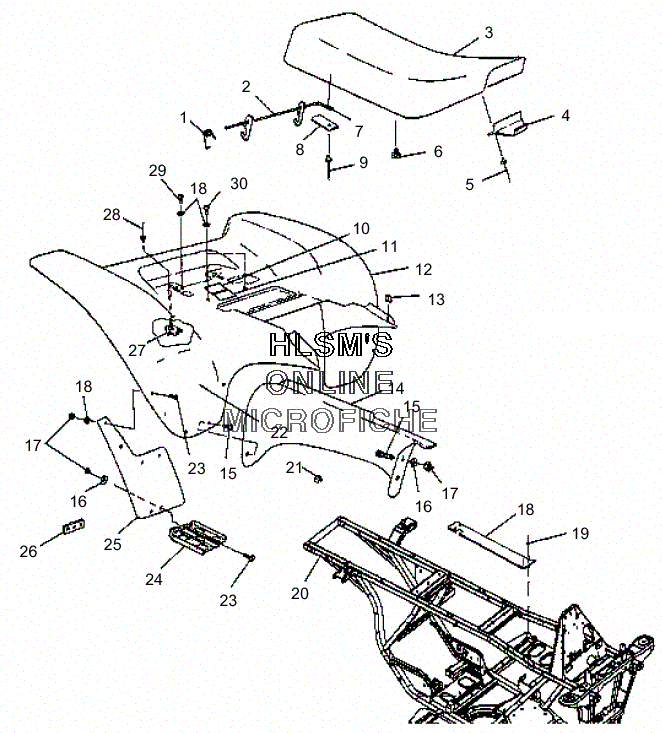

FENDER - REAR W/ SEAT для Polaris SCRAMBLER 2X4 (A00BA38CA) - 2000 года выпуска
-
№АртикулНазвание
-
17041607 SPRING, LATCH LIGHTSPRING, LATCH LIGHT
-
21040412-067 LATCH, SEATBACKLATCH, SEATBACK
-
32682453-288 SEAT, "POLARIS" (RED, W/WHITE)SEAT, "POLARIS" (RED, W/WHITE)
-
32681769-288 COVER, SEAT (BLAZING RED)COVER, SEAT (BLAZING RED)
-
45431986 TONGUE, SEATTONGUE, SEAT
-
57621479 RIVETRIVET
-
65410414 BUMPER, RUBBERBUMPER, RUBBER
-
75411392 CAP, SEAT LATCH (GEN 3)CAP, SEAT LATCH (GEN 3)
-
85211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
97621403 BLIND RIVETBLIND RIVET
-
107073761 DECAL, CARB.INFO.DECAL, CARB.INFO.
-
117072791 DECAL, FILTER ELEMENTDECAL, FILTER ELEMENT
-
125432820-288 FENDER, REAR GEN 3 (BLAZING RED)FENDER, REAR GEN 3 (BLAZING RED)
-
137670057 NUT, SPEEDNUT, SPEED
-
145431869-070 SHIELD, MUFFLER/FOIL ASSY. (GEN 3)SHIELD, MUFFLER/FOIL ASSY. (GEN 3)
-
145811113 FOIL, FOAMFOIL, FOAM
-
157517264 SCREWSCREW
-
167555859 WASHER, FLATWASHER, FLAT
-
177542122 NUT, LOCKNUT, LOCK
-
185241403-067 GUARD, CLUTCH (BLACK)GUARD, CLUTCH (BLACK)
-
197661638 RIVET, INTERLOCK BRIVET, INTERLOCK B
-
202670133 REFLECTOR ASSY. (RED)REFLECTOR ASSY. (RED)
-
215432831 PLUG, ENDCAP RIBBEDPLUG, ENDCAP RIBBED
-
225810957 FOIL, REAR FENDERFOIL, REAR FENDER
-
225810991 FOIL, REAR FENDER SMALLFOIL, REAR FENDER SMALL
-
237512282 BOLT (BLACK)BOLT (BLACK)
-
255850147 MUDFLAP, REAR (LEFT)MUDFLAP, REAR (LEFT)
-
255850148 MUDFLAP, REAR (RIGHT)MUDFLAP, REAR (RIGHT)
-
265211131-067 BRACKET, MUD FLAP (LEFT)BRACKET, MUD FLAP (LEFT)
-
275220880 BRACKET, REAR HOLDDOWNBRACKET, REAR HOLDDOWN
-
287621472 RIVETRIVET
-
297512232 BOLTBOLT
-
307512242 SCREWSCREW
