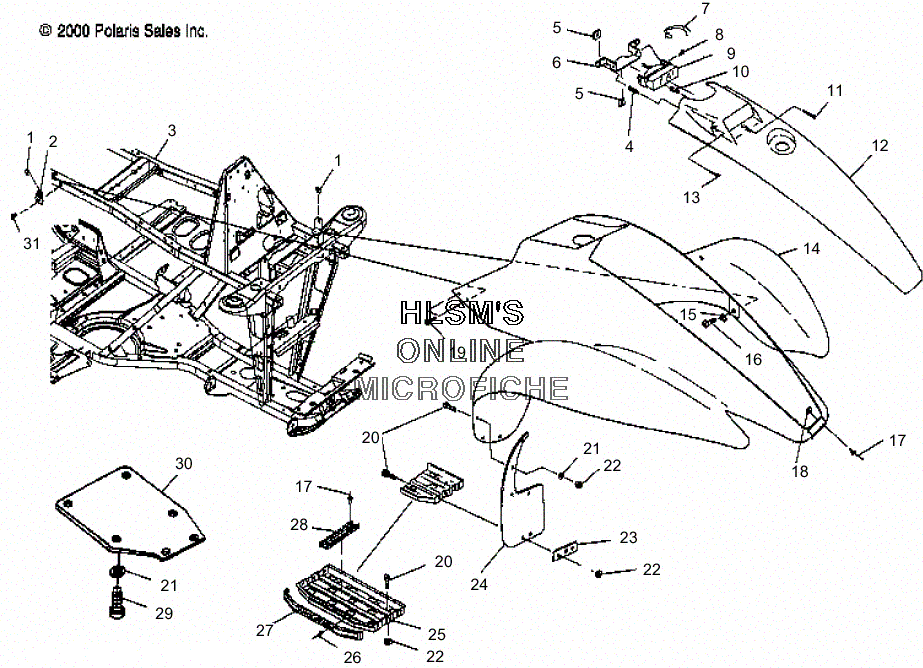

FENDER - FRONT W/ SIDE PANELS для Polaris SCRAMBLER 2X4 (A00BA38CA) - 2000 года выпуска
-
№АртикулНазвание
-
17670060 NUT, SPEEDNUT, SPEED
-
25224718-067 BRACKET,CAB MOUNT,GEN III (BLACK)BRACKET,CAB MOUNT,GEN III (BLACK)
-
31013039-067 FRAME, MAIN (BLACK)FRAME, MAIN (BLACK)
-
44032093 SPRING, ADJ (.9 IN )SPRING, ADJ (.9 IN )
-
57670095 MOUNT ASSY., HEADLIGHTMOUNT ASSY., HEADLIGHT
-
65241436-067 MOUNT ASSY., HEADLIGHTMOUNT ASSY., HEADLIGHT
-
74030056 BULB, HEADLIGHT (BLAZER/SPORT)BULB, HEADLIGHT (BLAZER/SPORT)
-
87512084 SCREWSCREW
-
94010206 HEADLIGHT (2X5, SINGLE BEAM, 55W) (INCL. 7)HEADLIGHT (2X5, SINGLE BEAM, 55W) (INCL. 7)
-
104032094 SPRING, ADJ (2.5 IN)SPRING, ADJ (2.5 IN)
-
117511886 SCREWSCREW
-
125432179-288 COVER-FRONT (BLAZING RED)COVER-FRONT (BLAZING RED)
-
137511887 SCREWSCREW
-
142631988-288 ASSY, FENDER FRONT (GEN III) (BLAZING RED)ASSY, FENDER FRONT (GEN III) (BLAZING RED)
-
157558301 WASHERWASHER
-
167522026 SCREWSCREW
-
177621472 RIVETRIVET
-
187558201 WASHER, FLATWASHER, FLAT
-
197517264 SCREWSCREW
-
207512282 BOLT, BLACKBOLT, BLACK
-
217555859 WASHER, FLATWASHER, FLAT
-
227542122 NUT, LOCKNUT, LOCK
-
235211131-067 BRACKET MUD FLAP (LEFT)BRACKET MUD FLAP (LEFT)
-
245811831 MUDFLAP, FRONT (LEFT)MUDFLAP, FRONT (LEFT)
-
245850150 MUDFLAP (RIGHT) (FRONT)MUDFLAP (RIGHT) (FRONT)
-
251012997-067 FOOTPAD (HEEL CLEAT) (BLACK) (BUILT BEFORE 11/22/99)FOOTPAD (HEEL CLEAT) (BLACK) (BUILT BEFORE 11/22/99)
-
251013084-067 FOOTPAD, CDS STEEL (RIGHT/BLACK) (BUILT BEFORE 11/22/99)FOOTPAD, CDS STEEL (RIGHT/BLACK) (BUILT BEFORE 11/22/99)
-
251013249-067 FOOTPAD, CDS STEEL (BLACK) (BUILTAFTER 11/22/99)FOOTPAD, CDS STEEL (BLACK) (BUILTAFTER 11/22/99)
-
267661825 RIVETRIVET
-
275431484 TRIM, FOOTRESTTRIM, FOOTREST
-
285242525-067 BRKT, HEEL CLEAT (BLACK)BRKT, HEEL CLEAT (BLACK)
-
297515179 SCREWSCREW
-
305432763 GUARD, ROCKGUARD, ROCK
-
317517386 SCREWSCREW
