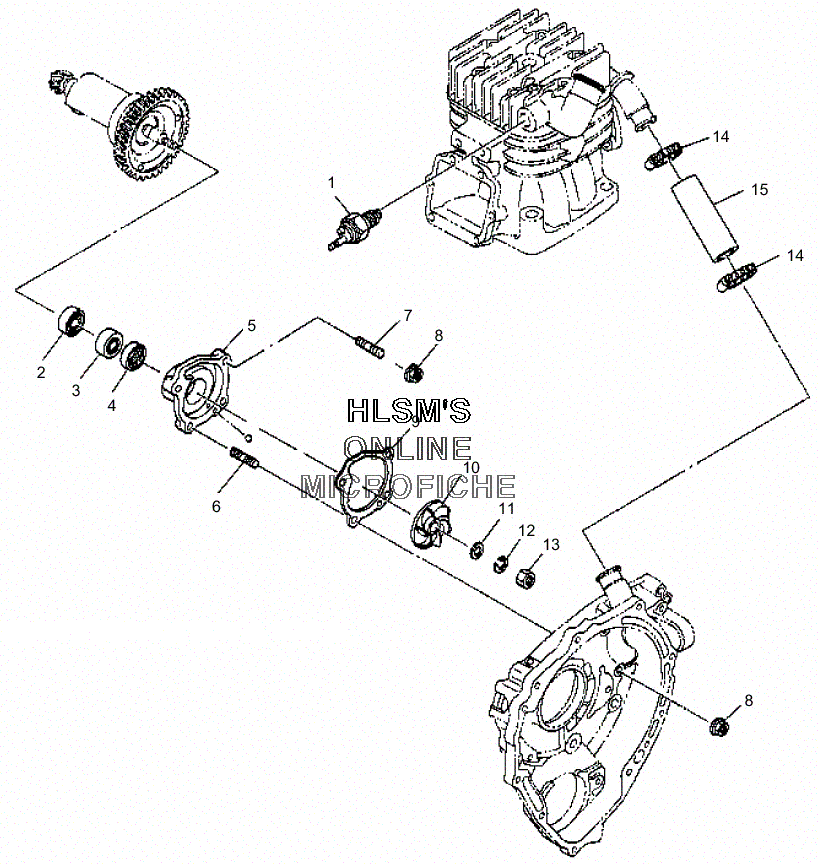

WATER PUMP для Polaris SCRAMBLER 2X4 (A00BA38CA) - 2000 года выпуска
-
№АртикулНазвание
-
13084284 SWITCH, THERMALSWITCH, THERMAL
-
23084183 BEARING, BALLBEARING, BALL
-
33084184 SEAL, OILSEAL, OIL
-
43084185 SEAL, OILSEAL, OIL
-
53086770 CASING, WATER PUMP (INCL. 2-7)CASING, WATER PUMP (INCL. 2-7)
-
53086771 CASING, WATER PUMPCASING, WATER PUMP
-
63086772 STUDSTUD
-
73086775 STUDSTUD
-
83083856 NUT, FLANGENUT, FLANGE
-
93084187 GASKETGASKET
-
103084186 IMPELLERIMPELLER
-
113082206 WASHERWASHER
-
123080077 WASHER SPRINGWASHER SPRING
-
133083073 NUTNUT
-
143086774 CLAMP, HOSECLAMP, HOSE
-
153086773 HOSE, MAINHOSE, MAIN
