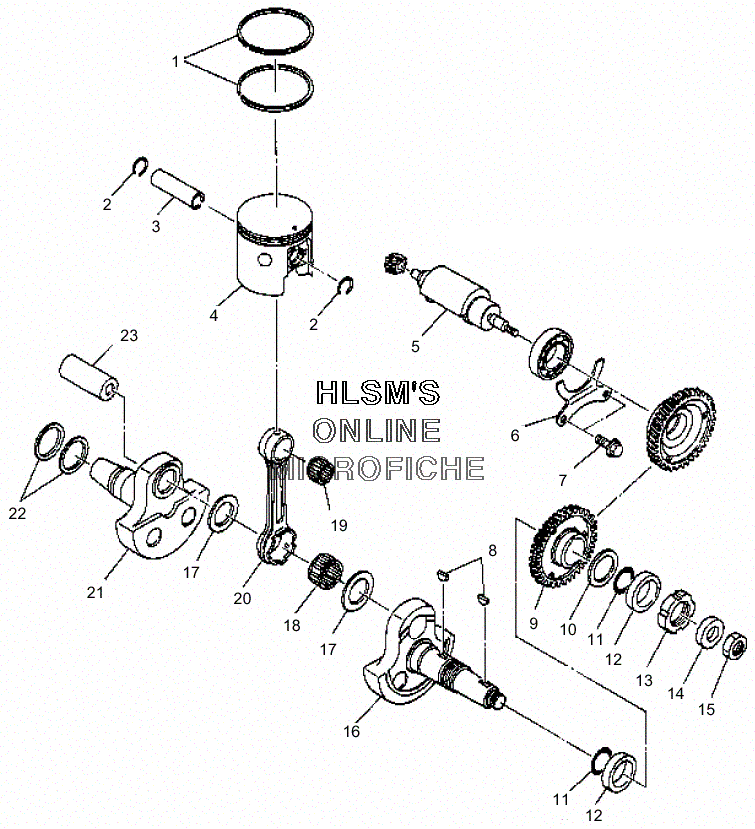

PISTON AND CRANKSHAFT для Polaris SCRAMBLER 2X4 (A00BA38CA) - 2000 года выпуска
-
№АртикулНазвание
-
13084737 RING, PISTON STD.RING, PISTON STD.
-
13084738 RING, PISTON (.25MM O/S) (0.25MM/.010 O/S)RING, PISTON (.25MM O/S) (0.25MM/.010 O/S)
-
13084739 RING, PISTON (.50MM O/S) (0.50MM/.020 O/S)RING, PISTON (.50MM O/S) (0.50MM/.020 O/S)
-
23084167 CLIPCLIP
-
33083838 PIN, PISTONPIN, PISTON
-
43085886 PISTON SET (STD)PISTON SET (STD)
-
43085887 PISTON SET (0.25 O/S) (0.25MM/.010 O/S)PISTON SET (0.25 O/S) (0.25MM/.010 O/S)
-
43085888 PISTON SET (0.50 O/S) (0.50MM/.020 O/S)PISTON SET (0.50 O/S) (0.50MM/.020 O/S)
-
53084172 BALANCERBALANCER
-
63086768 PLATEPLATE
-
73086769 BOLT, HEXAGON HEADBOLT, HEXAGON HEAD
-
83080130 KEY, WOODRUFFKEY, WOODRUFF
-
93084156 GEAR, DRIVEGEAR, DRIVE
-
103086764 WASHER, GUIDEWASHER, GUIDE
-
113084160 O RINGO RING
-
123086763 COLLARCOLLAR
-
133086762 NUT, SLITNUT, SLIT
-
143086767 WASHERWASHER
-
153083905 LOCKNUTLOCKNUT
-
163084776 CRANKSHAFT ASSY. (INCL. 16,17,18,20,21,23)CRANKSHAFT ASSY. (INCL. 16,17,18,20,21,23)
-
163084149 CRANKSHAFT #1, MAG SIDECRANKSHAFT #1, MAG SIDE
-
173084155 SPACER, CRANK PINSPACER, CRANK PIN
-
183084154 BEARING, LARGE ENDBEARING, LARGE END
-
193084168 BEARING, SMALL ENDBEARING, SMALL END
-
203084153 ROD, CONNECTINGROD, CONNECTING
-
213084777 CRANKSHAFT #2, PTO SIDECRANKSHAFT #2, PTO SIDE
-
223086765 SPACER-1 (0.2MM) (OPT)SPACER-1 (0.2MM) (OPT)
-
223086766 SPACER-2 (0.3MM) (OPT)SPACER-2 (0.3MM) (OPT)
-
233084152 PIN, CRANK #1PIN, CRANK #1
