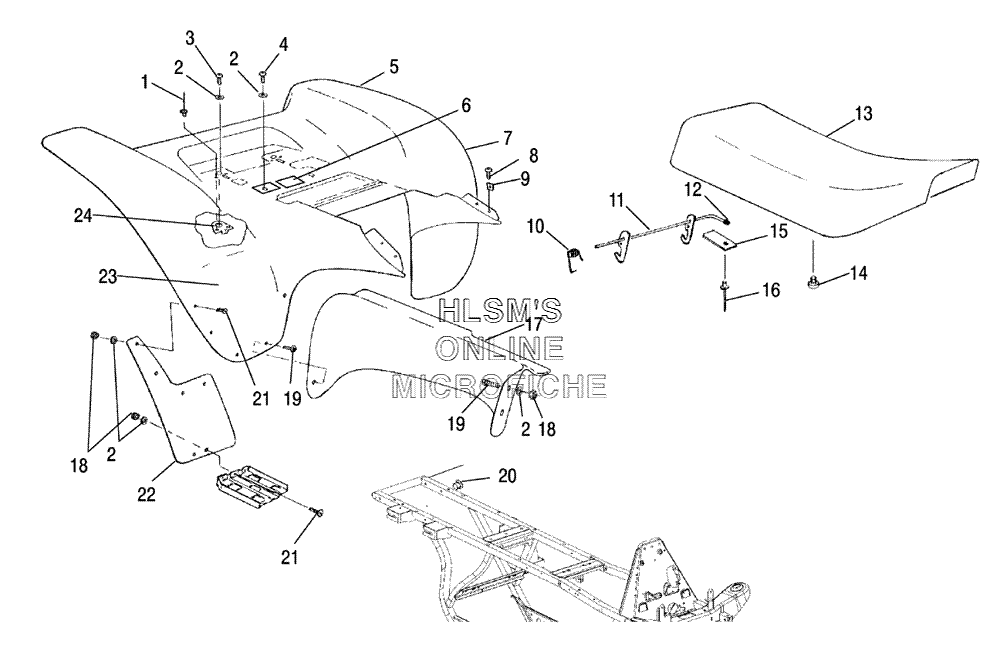

CAB - REAR для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
17621472 RIVETRIVET
-
27555859 WASHER, FLATWASHER, FLAT
-
37512232 BOLTBOLT
-
47512242 SCREWSCREW
-
55810991 FOIL, SMALLFOIL, SMALL
-
67079902 DECAL, CARB/FILTER INFODECAL, CARB/FILTER INFO
-
75430007-496 CAB, REAR (COSMIC SO NON METAL)CAB, REAR (COSMIC SO NON METAL)
-
87517916 SCREWSCREW
-
97670057 NUT, SPEEDNUT, SPEED
-
107041607 SPRING, LATCH, LIGHTSPRING, LATCH, LIGHT
-
111040412 LATCH, SEATBACKLATCH, SEATBACK
-
125411392 CAP, SEAT LATCHCAP, SEAT LATCH
-
132683329-070 SEAT ASSY. (BLACK) (W/WHITE POLARIS)SEAT ASSY. (BLACK) (W/WHITE POLARIS)
-
132683328-070 COVER, SEAT (BLACK)COVER, SEAT (BLACK)
-
145412067 BUMPER, RUBBERBUMPER, RUBBER
-
155211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
167621403 BLIND RIVETBLIND RIVET
-
172632280 SHIELD ASSY., MUFFLER/FOILSHIELD ASSY., MUFFLER/FOIL
-
175811230 FOILFOIL
-
187542122 NUT, NYLOKNUT, NYLOK
-
197517264 SCREWSCREW
-
205432831 PLUG, ENDCAP, RIBBEDPLUG, ENDCAP, RIBBED
-
217512282 BOLT (BLACK)BOLT (BLACK)
-
225812134 MUDFLAP, REAR (LEFT)MUDFLAP, REAR (LEFT)
-
225812543 MUDFLAP, REAR (RIGHT)MUDFLAP, REAR (RIGHT)
-
235810957 FOILFOIL
-
245220880 BRACKET, REAR HOLDDOWNBRACKET, REAR HOLDDOWN
