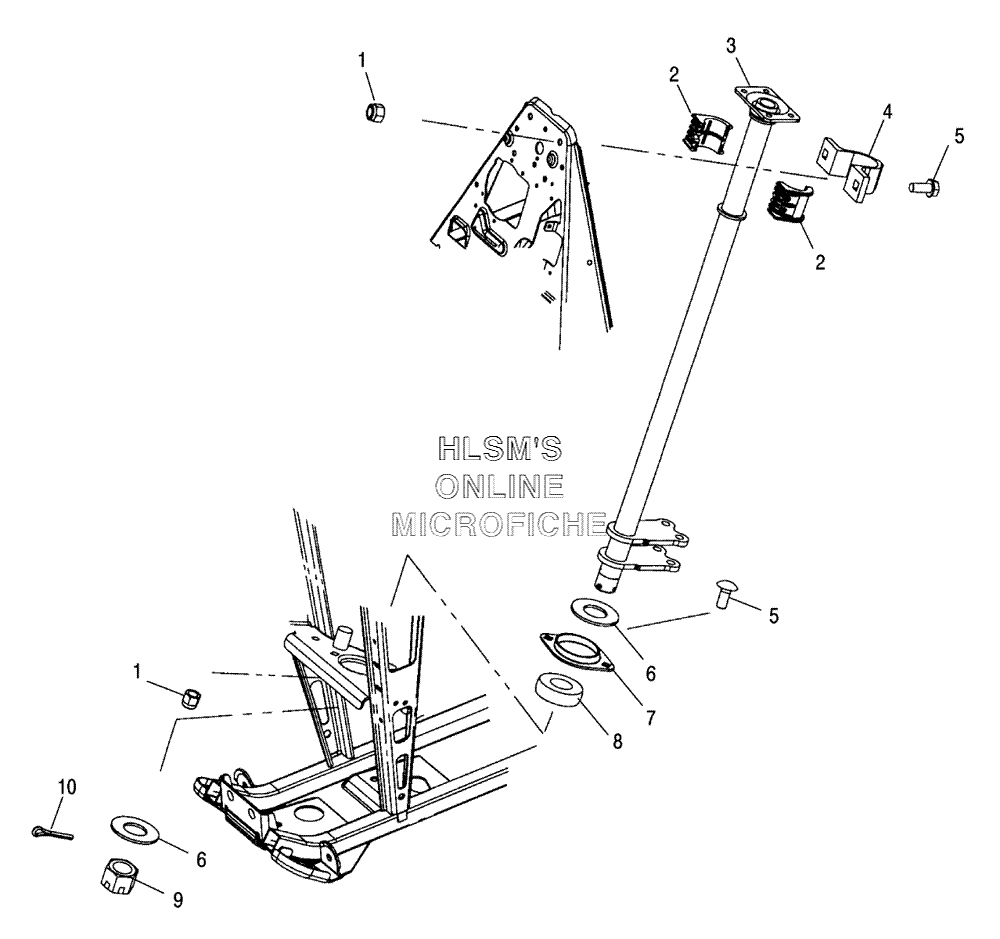

STEERING POST для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
17542343 NUT, FLANGENUT, FLANGE
-
25433866 BUSHING, UPPERBUSHING, UPPER
-
31822630-067 STEERING POST KITSTEERING POST KIT
-
45246732 BRACKET, UPPER BUSHINGBRACKET, UPPER BUSHING
-
57517428 BOLTBOLT
-
67556162 BUSHINGBUSHING
-
75222393 FLANGETTE (2, BOLT)FLANGETTE (2, BOLT)
-
83514352 BEARINGBEARING
-
97547158 NUT, SLOTTED HEXNUT, SLOTTED HEX
-
107661633 PIN, COTTERPIN, COTTER
