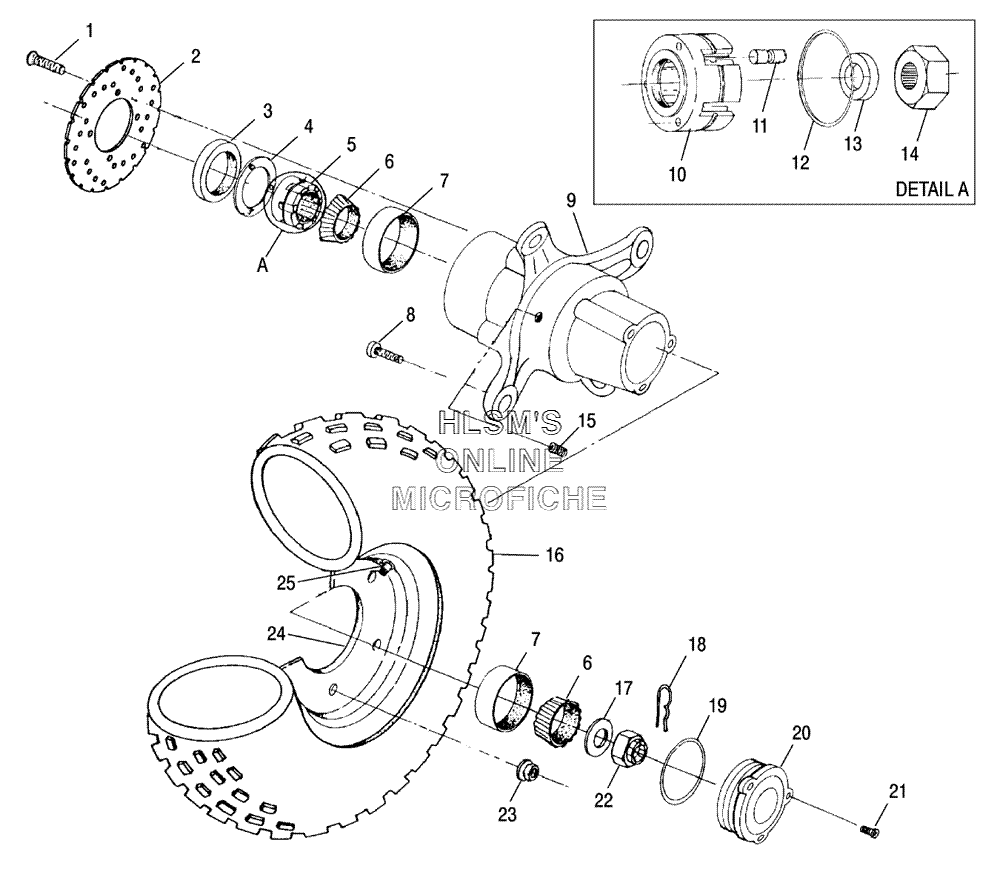

WHEEL - FRONT для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
17512325 BOLTBOLT
-
25240035 DISC, BRAKE (20 TEETH)DISC, BRAKE (20 TEETH)
-
33610019 SEAL, FRONT. HUBSEAL, FRONT. HUB
-
45211148 PLATE, ARMATUREPLATE, ARMATURE
-
51520281 CLUTCH, FRONT HUB E/M (SPLINED DRIVE SHAFT)CLUTCH, FRONT HUB E/M (SPLINED DRIVE SHAFT)
-
63554506 BEARING, TAPER ROLL.CONEBEARING, TAPER ROLL.CONE
-
73554507 BEARING, TAPER ROLL CUPBEARING, TAPER ROLL CUP
-
87515513 STUDSTUD
-
91520243 WHEEL HUB KIT, W/CAP (INCL. 3, 7, 8)WHEEL HUB KIT, W/CAP (INCL. 3, 7, 8)
-
103250028 CAGE, ROLLCAGE, ROLL
-
113250010 ROLLROLL
-
123250032 SPRING, GARTERSPRING, GARTER
-
131321814 SPACERSPACER
-
143250030 CAMCAM
-
157052045 PLUG, MAGNETIC DRAINPLUG, MAGNETIC DRAIN
-
165412324 TIRE (23X7) (AA)TIRE (23X7) (AA)
-
165412514 TIRE, FRONT (23X7) (FA)TIRE, FRONT (23X7) (FA)
-
177556004 WASHERWASHER
-
187661402 PIN, COTTERPIN, COTTER
-
195410470 O-RINGO-RING
-
205432611 CAP, HUB, 3, LOBE, AWDCAP, HUB, 3, LOBE, AWD
-
217512027 SCREWSCREW
-
227542810 NUT, SLOTTEDNUT, SLOTTED
-
237547237 NUT, FLANGENUT, FLANGE
-
241520175-486 RIM, FRONT (5.86X10)RIM, FRONT (5.86X10)
-
251525017 VALVE, RIMVALVE, RIM
