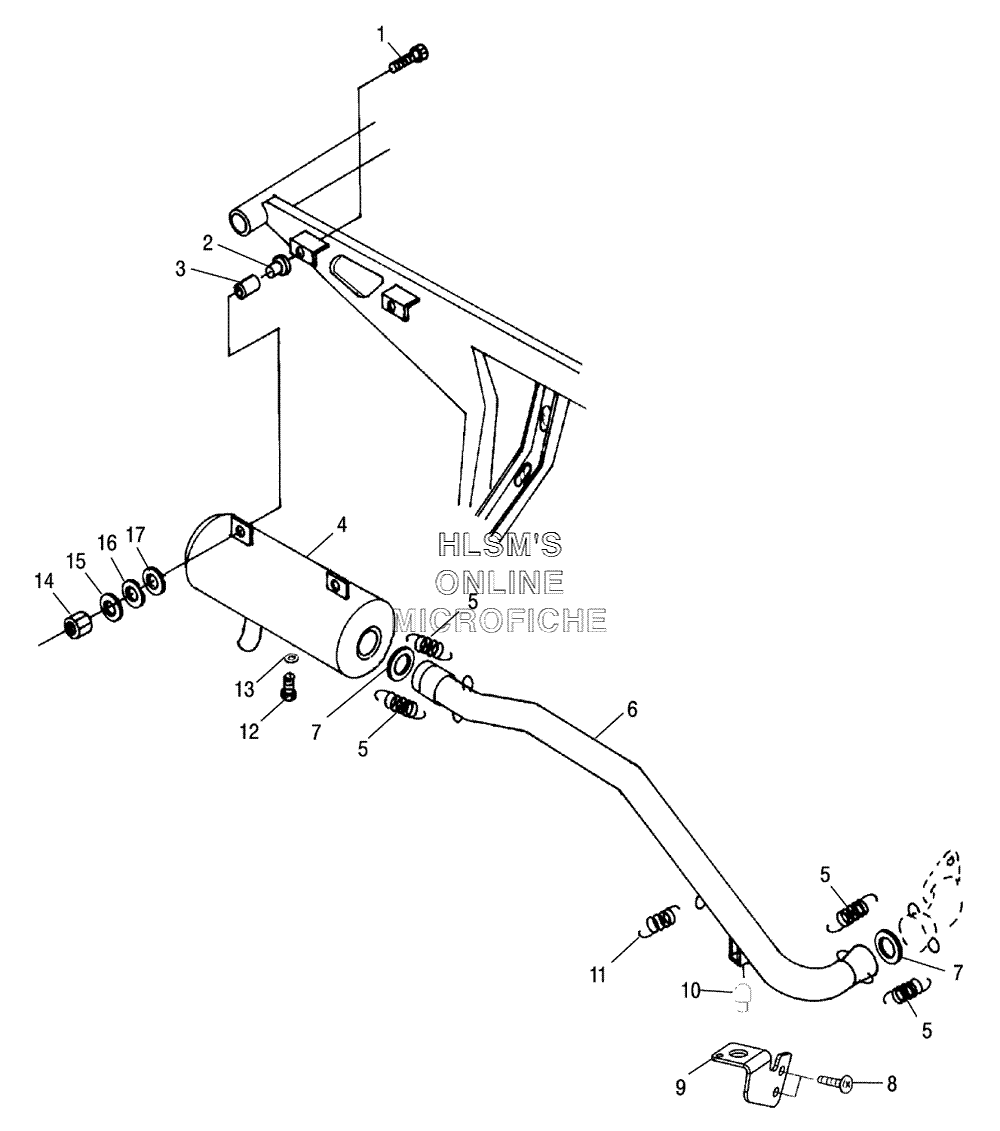

EXHAUST SYSTEM для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
17515316 BOLTBOLT
-
25412659 DAMPENER, VIBRATIONDAMPENER, VIBRATION
-
35010192 BUSHINGBUSHING
-
41261006-029 SILENCER (BLACK)SILENCER (BLACK)
-
57041804 SPRINGSPRING
-
61261005-029 WELD, EXHAUST PIPE (BLACK)WELD, EXHAUST PIPE (BLACK)
-
75243518 SEAL, EXHAUSTSEAL, EXHAUST
-
87517386 SCREWSCREW
-
95248301 BRACKET, EXHAUST PIPE SUPPORTBRACKET, EXHAUST PIPE SUPPORT
-
105411576 DAMPENER, VIBRATION, W/RIBSDAMPENER, VIBRATION, W/RIBS
-
117041769 SPRING, EXTENSIONSPRING, EXTENSION
-
127512666 BOLTBOLT
-
137556230 WASHER, CLEAN OUTWASHER, CLEAN OUT
-
147542324 NUT, NYLOKNUT, NYLOK
-
157555716 WASHERWASHER
-
167555859 WASHER, FLATWASHER, FLAT
-
175410436 WASHER, RUBBERWASHER, RUBBER
