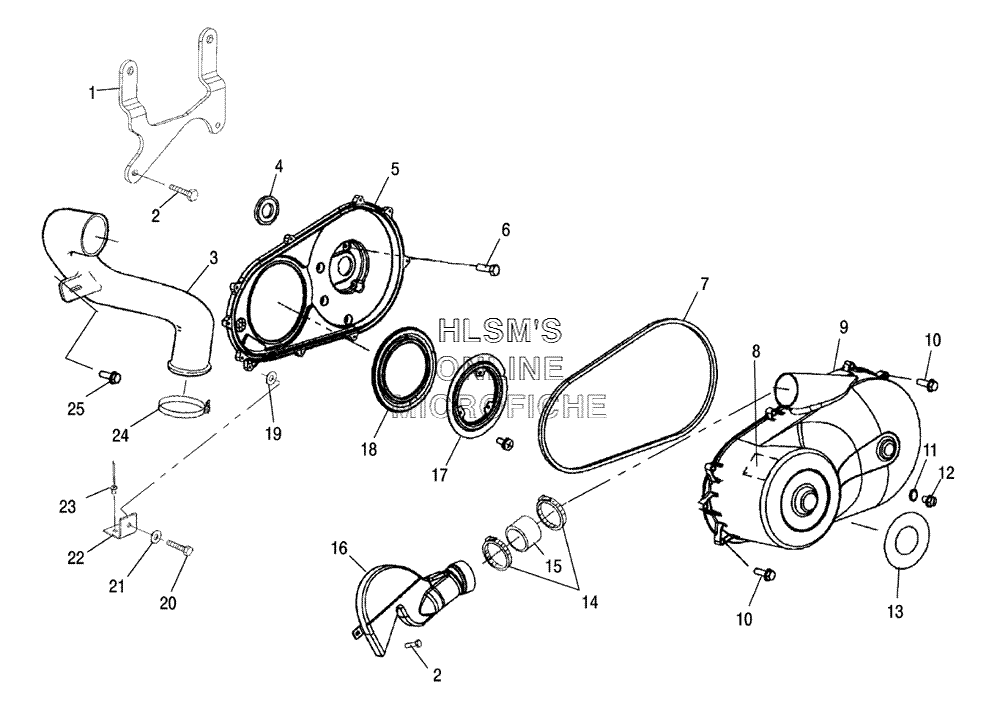

CLUTCH COVER для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
15247524-067 BRACKET, CLUTCH COVER (BLACK)BRACKET, CLUTCH COVER (BLACK)
-
27517386 SCREWSCREW
-
35432698 DUCT, INLET, DOWN TUBEDUCT, INLET, DOWN TUBE
-
45411553 SEAL, COVER (INNER)SEAL, COVER (INNER)
-
52201957 CLUTCH, COVER (INCL. 7, 10, 18, 20)CLUTCH, COVER (INCL. 7, 10, 18, 20)
-
67510000 BOLT W/ WASHER ASSY.BOLT W/ WASHER ASSY.
-
75521578 SEAL, OUTER CLUTCH COVERSEAL, OUTER CLUTCH COVER
-
87172563 DECAL-WARN, CLUTCH COVERDECAL-WARN, CLUTCH COVER
-
95434255-070 COVER, CLUTCH, OUTER (BLACK)COVER, CLUTCH, OUTER (BLACK)
-
107512094 SCREWSCREW
-
115410542 O-RINGO-RING
-
125434264 PLUG, DRAINPLUG, DRAIN
-
137172746 DECAL, AUTOMATIC TRANSMISSIONDECAL, AUTOMATIC TRANSMISSION
-
147080707 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
155412636 BOOT, DUCT HI FLOWBOOT, DUCT HI FLOW
-
165434160 DUCT, CLUTCH, OUTER HI-FLOWDUCT, CLUTCH, OUTER HI-FLOW
-
175242046 BRACKET, CLUTCH SEALBRACKET, CLUTCH SEAL
-
185410575 SEAL, COVER CASESEAL, COVER CASE
-
197555932 WASHER, NYLONWASHER, NYLON
-
207512098 SCREWSCREW
-
217555935 WASHERWASHER
-
225247949 BRACKET, CLUTCH COVER FRONTBRACKET, CLUTCH COVER FRONT
-
237661637 RIVET, INNERTERLOCK, ZRIVET, INNERTERLOCK, Z
-
247080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
257517916 SCREWSCREW
