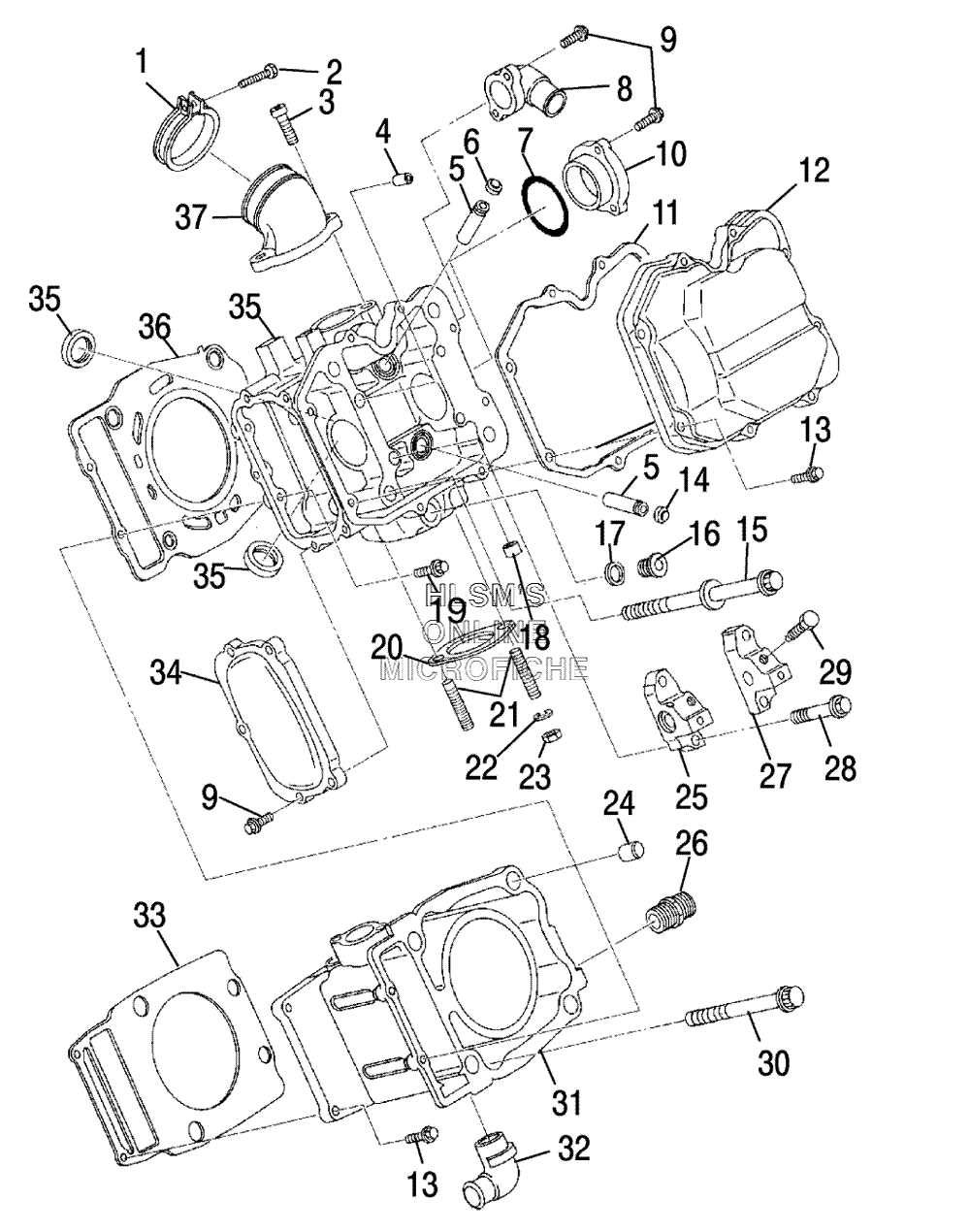

CYLINDER для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
13084045 BAND ASSY. (INCL. 2)BAND ASSY. (INCL. 2)
-
23081497 SCREW, PAN HEADSCREW, PAN HEAD
-
33081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
43084857 KNOCK, PIPEKNOCK, PIPE
-
53084994 GUIDE, VALVEGUIDE, VALVE
-
63084858 SEAL, INTAKE VALVESEAL, INTAKE VALVE
-
73084867 O-RINGO-RING
-
83084870 ADAPTER, WATER OUTADAPTER, WATER OUT
-
93084877 BOLT, FLANGEBOLT, FLANGE
-
103084866 ADAPTER, CAMSHAFTADAPTER, CAMSHAFT
-
113085074 GASKET (ROCKER COVER)GASKET (ROCKER COVER)
-
123085073 COVER, ROCKERCOVER, ROCKER
-
133084874 BOLT, FLANGEBOLT, FLANGE
-
143084859 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
153084875 BOLTBOLT
-
163084860 PLUGPLUG
-
173084861 GASKETGASKET
-
183084862 PLUG, BLINDPLUG, BLIND
-
193086781 BOLT, FLANGEBOLT, FLANGE
-
203085075 GASKET ASSY. (EXHAUST)GASKET ASSY. (EXHAUST)
-
213085326 STUDSTUD
-
223080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
233087199 NUTNUT
-
243087266 KNOCK, PIPEKNOCK, PIPE
-
253084863 SUPPORT, VALVE ROCKER SHAFT (MAG)SUPPORT, VALVE ROCKER SHAFT (MAG)
-
263084849 UNION, OIL PUMPUNION, OIL PUMP
-
273084864 SUPPORT, VALVE ROCKER SHAFT (PTO)SUPPORT, VALVE ROCKER SHAFT (PTO)
-
283084876 BOLTBOLT
-
293085854 BOLT, ROCKER SHAFTBOLT, ROCKER SHAFT
-
303084873 BOLT, FLANGEBOLT, FLANGE
-
313089256 CYLINDER ASSY. (INCL. 32)CYLINDER ASSY. (INCL. 32)
-
323086747 PIPE, 2, ELBOWPIPE, 2, ELBOW
-
333085370 GASKET, CYLINDERGASKET, CYLINDER
-
343089242 COVER, CAMSHAFTCOVER, CAMSHAFT
-
353085527 HEAD, CYLINDER ASSY. (INCL. 4, 6, 14, 16, 18, 21)HEAD, CYLINDER ASSY. (INCL. 4, 6, 14, 16, 18, 21)
-
363085371 GASKET, HEAD ASSY.GASKET, HEAD ASSY.
-
373085809 ADAPTER ASSY.ADAPTER ASSY.
