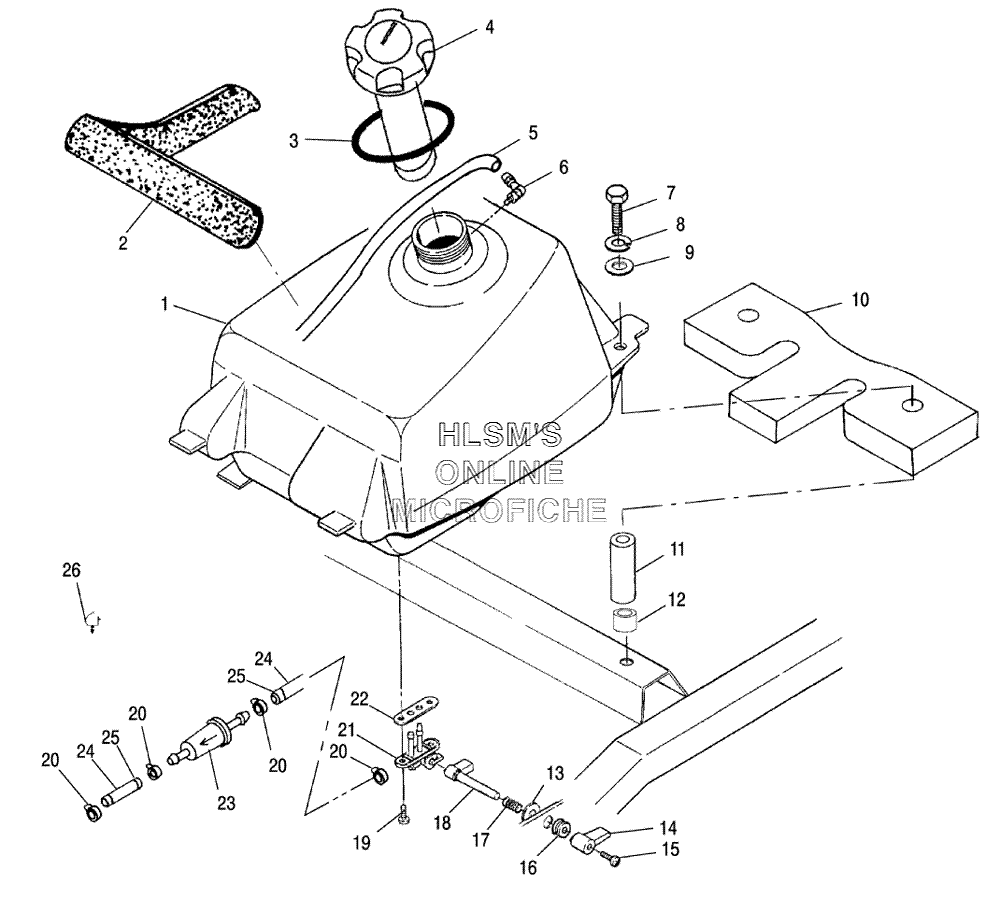

FUEL TANK для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
12520241 FUEL TANK ASSY., W/ VALVE (INCL. 6, 19, 21, 22)FUEL TANK ASSY., W/ VALVE (INCL. 6, 19, 21, 22)
-
25811527 SEAL, FOAMSEAL, FOAM
-
35812123 GASKETGASKET
-
42871441 CAP, FUEL GAUGE, SHORTCAP, FUEL GAUGE, SHORT
-
58360009-600 LINE, FUEL (1/8 ID, 600 CM.)LINE, FUEL (1/8 ID, 600 CM.)
-
65431053 VENT, TANKVENT, TANK
-
77512249 BOLTBOLT
-
87552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
97555859 WASHER, FLATWASHER, FLAT
-
105811526 SEAL, FOAMSEAL, FOAM
-
115332457 SPACERSPACER
-
127547069 NUTSERT, HEXNUTSERT, HEX
-
137555726 WASHERWASHER
-
145431021 LEVER, FUELLEVER, FUEL
-
157511840 SCREWSCREW
-
165412423 GROMMETGROMMET
-
177041209 SPRING, LEVER, COMPRESS.SPRING, LEVER, COMPRESS.
-
185431391 EXT., FUEL LEVEREXT., FUEL LEVER
-
197515136 SCREWSCREW
-
207080003 CLAMP, HOSECLAMP, HOSE
-
217051006 VALVE ASSY., FUELVALVE ASSY., FUEL
-
225810859 GASKET, FUEL VALVEGASKET, FUEL VALVE
-
232530009 FILTER, SMALL, INNER, LINEFILTER, SMALL, INNER, LINE
-
248450080-27 SHEATH-REFLECT SLEEVE (16MMX65CM)SHEATH-REFLECT SLEEVE (16MMX65CM)
-
258450040-600 LINE FUEL (1/4 ID 600 CM.)LINE FUEL (1/4 ID 600 CM.)
-
267670109 CLIP, ROUTINGCLIP, ROUTING
