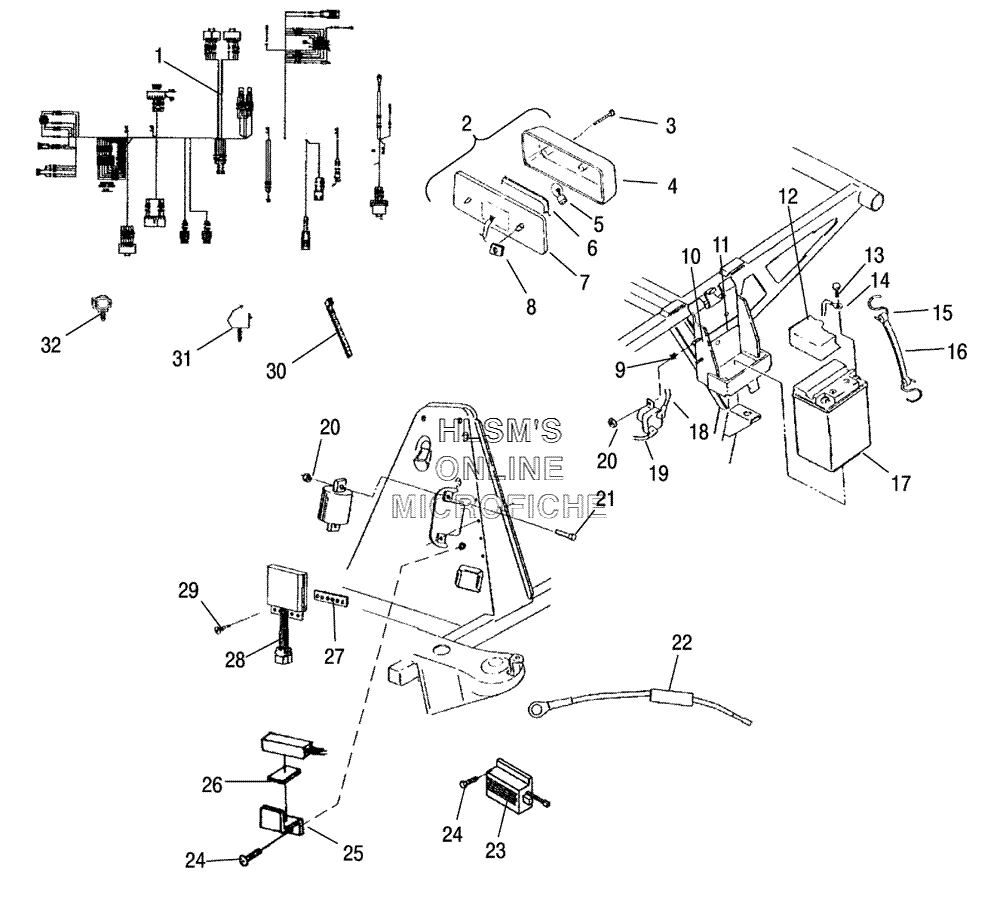

ELECTRICAL W/ TAILLIGHT ASSY. для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
12410505 HARNESS, MAINHARNESS, MAIN
-
22410319 TAILLIGHT ASSY., 12V, SERIES (INCL. 3, 7) (AA)TAILLIGHT ASSY., 12V, SERIES (INCL. 3, 7) (AA)
-
37512088 SCREWSCREW
-
44032085 LENS, STOP AND TAILLIGHTLENS, STOP AND TAILLIGHT
-
54030043 BULBBULB
-
64032086 GASKET, TAILLIGHT AND STOPLIGHTGASKET, TAILLIGHT AND STOPLIGHT
-
74032087 BACKING (STOP AND TAIL)BACKING (STOP AND TAIL)
-
87670093 CLIP, RETAINERCLIP, RETAINER
-
97571602 WASHERWASHER
-
107512027 SCREWSCREW
-
115810290 PAD, BATTERYPAD, BATTERY
-
125431769 COVER, BATTERYCOVER, BATTERY
-
132202848 BATTERY KIT, BOLTBATTERY KIT, BOLT
-
144010095 CABLE, BATT/ENG. (BLACK)CABLE, BATT/ENG. (BLACK)
-
157010032 HOOK, BATTERY STRAPHOOK, BATTERY STRAP
-
165412499 STRAP, BATTERY HOLD DOWN, CSTRAP, BATTERY HOLD DOWN, C
-
174011138 BATTERY, SEALED, 14AH ETX15 (AA)BATTERY, SEALED, 14AH ETX15 (AA)
-
174140006 BATTERY (FA)BATTERY (FA)
-
184010094 CABLE, BATT/SOLENOID (RED)CABLE, BATT/SOLENOID (RED)
-
194010093 CABLE, SOL/STARTERCABLE, SOL/STARTER
-
207541925 NUTNUT
-
217512007 BOLTBOLT
-
222202147 KIT, FUSIBLE LINKKIT, FUSIBLE LINK
-
234011110 SUREPOWER MODULE KITSUREPOWER MODULE KIT
-
247512024 SCREWSCREW
-
255246747 BRACKET, CDI, DIGITAL, LONGBRACKET, CDI, DIGITAL, LONG
-
265810317 PAD, BULK FUELPAD, BULK FUEL
-
275210650 HEAT SINKHEAT SINK
-
284010994 LIMITER, RPM HUB GROUND W/CONLIMITER, RPM HUB GROUND W/CON
-
297512018 SCREWSCREW
-
307080138 CABLE TIECABLE TIE
-
317670109 CLIP, ROUTINGCLIP, ROUTING
-
324020139 CLIP, ROSEBUDCLIP, ROSEBUD
