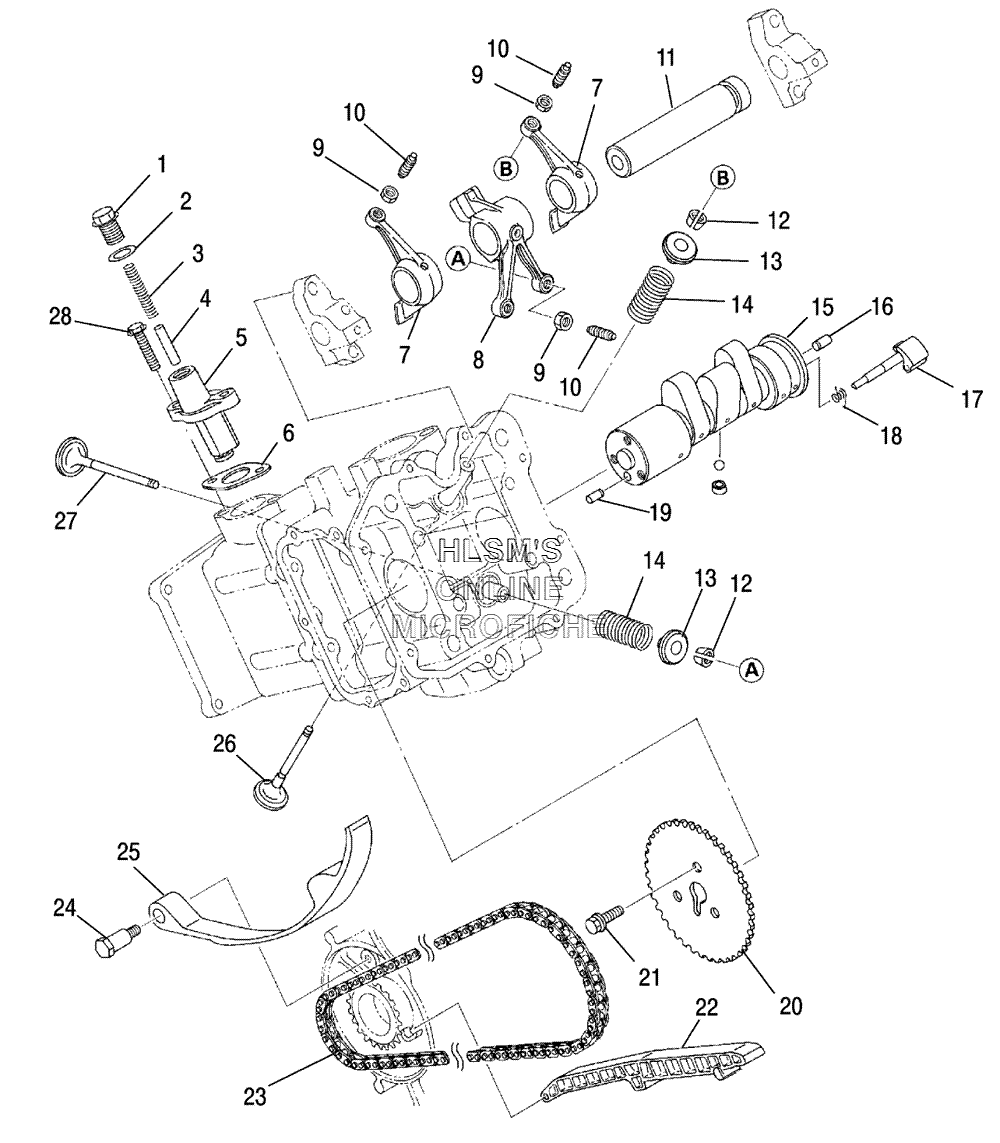

CAMSHAFT W/ VALVE ASSY. для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
13087129 PLUGPLUG
-
23087130 GASKET, PLUGGASKET, PLUG
-
33087131 SPRING, TENSIONERSPRING, TENSIONER
-
43087132 PINPIN
-
53086493 TENSIONER ASSY. (INCL. 1, 4)TENSIONER ASSY. (INCL. 1, 4)
-
63086448 GASKET, TENSIONERGASKET, TENSIONER
-
73084910 ROCKER ARM ASSY., INTAKE (INCL. 9, 10)ROCKER ARM ASSY., INTAKE (INCL. 9, 10)
-
83084913 ROCKER ARM ASSY., EXHAUST (INCL. 9, 10)ROCKER ARM ASSY., EXHAUST (INCL. 9, 10)
-
93084912 NUTNUT
-
103084911 SCREW, ADJUSTINGSCREW, ADJUSTING
-
113084909 SHAFT, ROCKERSHAFT, ROCKER
-
123084908 COLLET, VALVECOLLET, VALVE
-
133087203 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
143086892 SPRING, VALVESPRING, VALVE
-
153085855 CAMSHAFT ASSY. (INCL. 16, 19)CAMSHAFT ASSY. (INCL. 16, 19)
-
163086838 PIN, DOWELPIN, DOWEL
-
173085348 LEVER, RELEASELEVER, RELEASE
-
183085076 SPRING, RETURNSPRING, RETURN
-
193084899 PIN, DOWELPIN, DOWEL
-
203084914 SPROCKET 2SPROCKET 2
-
213081657 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
223084916 GUIDE, CHAINGUIDE, CHAIN
-
233084915 CHAIN, TIMINGCHAIN, TIMING
-
243084924 BOLT ASSY., PIVOT, LEVERBOLT ASSY., PIVOT, LEVER
-
253084917 LEVERLEVER
-
263085349 VALVE, INTAKEVALVE, INTAKE
-
273085412 VALVE, EXHAUSTVALVE, EXHAUST
-
283083361 BOLT, FLANGEBOLT, FLANGE
