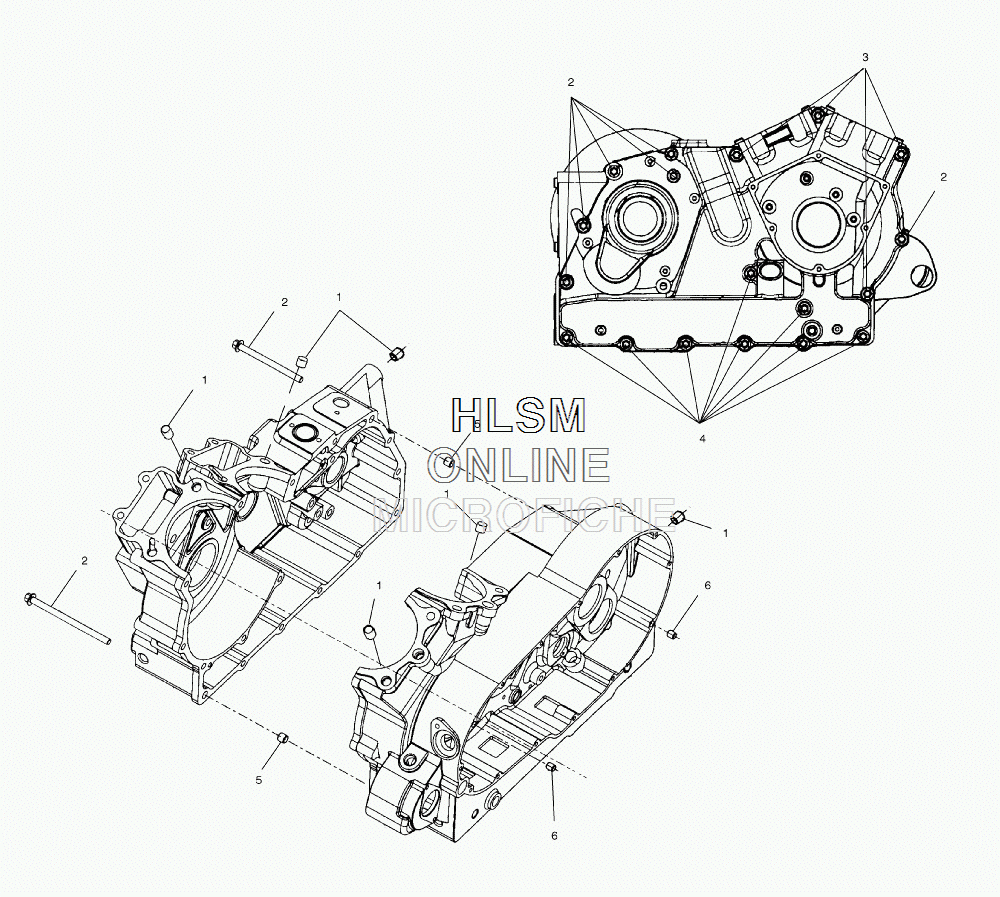

CRANKCASE для Polaris STANDARD CRUISER (49 STATE) [V99CB15DA] - 1999 года выпуска
-
№АртикулНазвание
-
151201699 CRANKCASE ASM,#1 S (INCL. 1,3,6,8,7)CRANKCASE ASM,#1 S (INCL. 1,3,6,8,7)
-
13585706 BEARING,MAIN, RIGHT HANDBEARING,MAIN, RIGHT HAND
-
27663008 DOWL,HOL,M13X10DOWL,HOL,M13X10
-
37517254 SCREW,HXFLGHD,M8X100SCREW,HXFLGHD,M8X100
-
47517409 SCREWSCREW
-
57517253 SCREWSCREW
-
67663005 DOWL,HOL,M11X10DOWL,HOL,M11X10
-
77663007 DOWEL,HOL,M9X10DOWEL,HOL,M9X10
-
83585705 BEARING,MAIN, LEFT HAND (NO LONGER AVAILABLE)BEARING,MAIN, LEFT HAND (NO LONGER AVAILABLE)
-
17663008 DOWL,HOL,M13X10DOWL,HOL,M13X10
-
27517254 SCREW,HXFLGHD,M8X100SCREW,HXFLGHD,M8X100
-
37517409 SCREWSCREW
-
47517253 SCREWSCREW
-
57663005 DOWL,HOL,M11X10DOWL,HOL,M11X10
-
67663007 DOWEL,HOL,M9X10DOWEL,HOL,M9X10
-
61201699 CRANKCASE ASM,#1 S (INCL. 2,5,6)CRANKCASE ASM,#1 S (INCL. 2,5,6)
