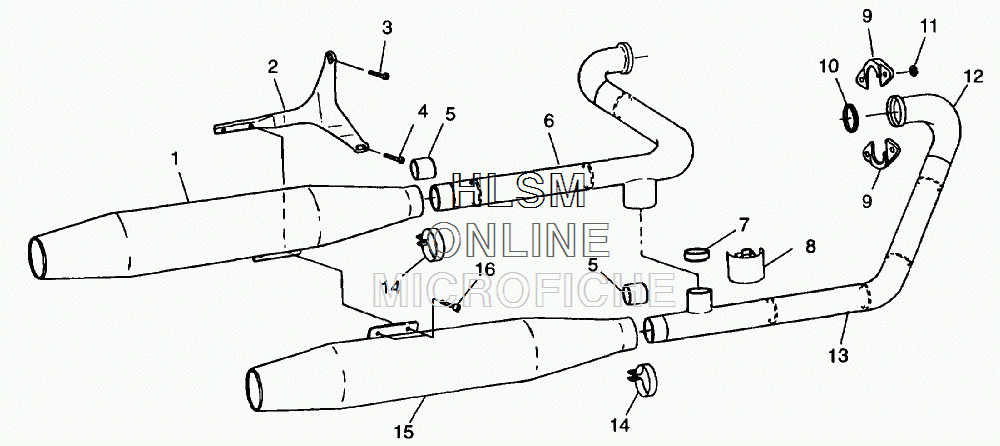

EXHAUST SYSTEM для Polaris STANDARD CRUISER (49 STATE) [V99CB15DA] - 1999 года выпуска
-
№АртикулНазвание
-
11260949 MUFFLER,ASM.REAR,V92C (INCL. REF.14)MUFFLER,ASM.REAR,V92C (INCL. REF.14)
-
25242187-067 MOUNT,REAR EXHAUST, BLACK.MOUNT,REAR EXHAUST, BLACK.
-
37517553 SCR-BTNHD,M8X20,0600095SCR-BTNHD,M8X20,0600095
-
47517458 SCREW,SCREW,
-
55811770 GASKET,EXHAUST,MUFFLERGASKET,EXHAUST,MUFFLER
-
61260954 EXHAUST,PIPE REAR,V92C (INCL. SHIELD)EXHAUST,PIPE REAR,V92C (INCL. SHIELD)
-
75811769 GASKET,EXHAUST,CROSSOVER SGASKET,EXHAUST,CROSSOVER S
-
87080835 CLAMP,CROSSOVER,V92CCLAMP,CROSSOVER,V92C
-
95131916 FLANGE,EXH,TOP/BOTTOMFLANGE,EXH,TOP/BOTTOM
-
105211770 GASKET,EXH.SEALINGGASKET,EXH.SEALING
-
117546805 NUT,SS.NUT,SS.
-
121260953 EXHAUST,PIPE,FRONT,V92C (INCL. SHIELD)EXHAUST,PIPE,FRONT,V92C (INCL. SHIELD)
-
137080774 CLAMP,EXH,HEATSHIELDCLAMP,EXH,HEATSHIELD
-
147080834 CLAMP,MUFFLERCLAMP,MUFFLER
-
151260951 MUFFLER,ASM.FRNT,V92C (INCL. REF.14)MUFFLER,ASM.FRNT,V92C (INCL. REF.14)
-
167516738 SCREW,SOCHD,M8X20SCREW,SOCHD,M8X20
-
37517553 SCR-BTNHD,M8X20,0600095SCR-BTNHD,M8X20,0600095
