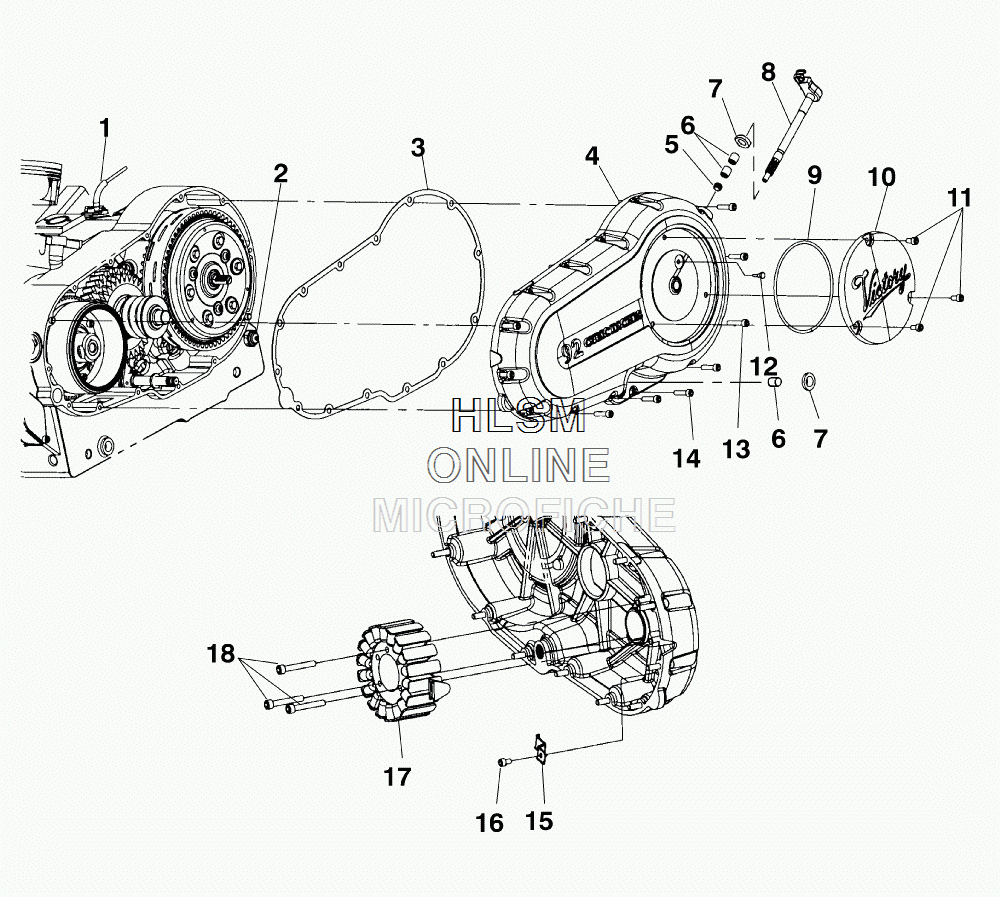

PRIMARY COVER для Polaris STANDARD CRUISER (49 STATE) [V99CB15DA] - 1999 года выпуска
-
№АртикулНазвание
-
17517272 SCREW,SOCHD,M6X15SCREW,SOCHD,M6X15
-
35830119 GASKET,PRIMARY COVERGASKET,PRIMARY COVER
-
41201730 COVER,PRIMARY S (INCL. 5,6,7)COVER,PRIMARY S (INCL. 5,6,7)
-
53512106 BEARING,NDL,M7X11X9,CLTSHHFBEARING,NDL,M7X11X9,CLTSHHF
-
63552105 BEARING,NDL,M12X16X10,CLTSHF (NO LONGER AVAILABLE)BEARING,NDL,M12X16X10,CLTSHF (NO LONGER AVAILABLE)
-
73610059 SEAL,12X22X7SEAL,12X22X7
-
81080040 PINION,CLUTCHPINION,CLUTCH
-
95411499 O-RINGO-RING
-
105131531 PLATE,EMBLEM,PRI.CVR,MACHPLATE,EMBLEM,PRI.CVR,MACH
-
117517405 SCREWSCREW
-
127517499 SCR-M5X.8X16,HEXHD,DOG POINTSCR-M5X.8X16,HEXHD,DOG POINT
-
137517301 SCREW,SOCHD,M6X30SCREW,SOCHD,M6X30
-
147517259 SCREW,SOCHD,SCREW,SOCHD,
-
155241927 CLIP,STATOR,WIRE SCLIP,STATOR,WIRE S
-
167517515 SCREW,SOCHD,M5X8SCREW,SOCHD,M5X8
-
174060654 STATORSTATOR
-
187517261 SCREW,SOCHD,M6X40SCREW,SOCHD,M6X40
-
155243078 CLIP,STATOR WIRECLIP,STATOR WIRE
