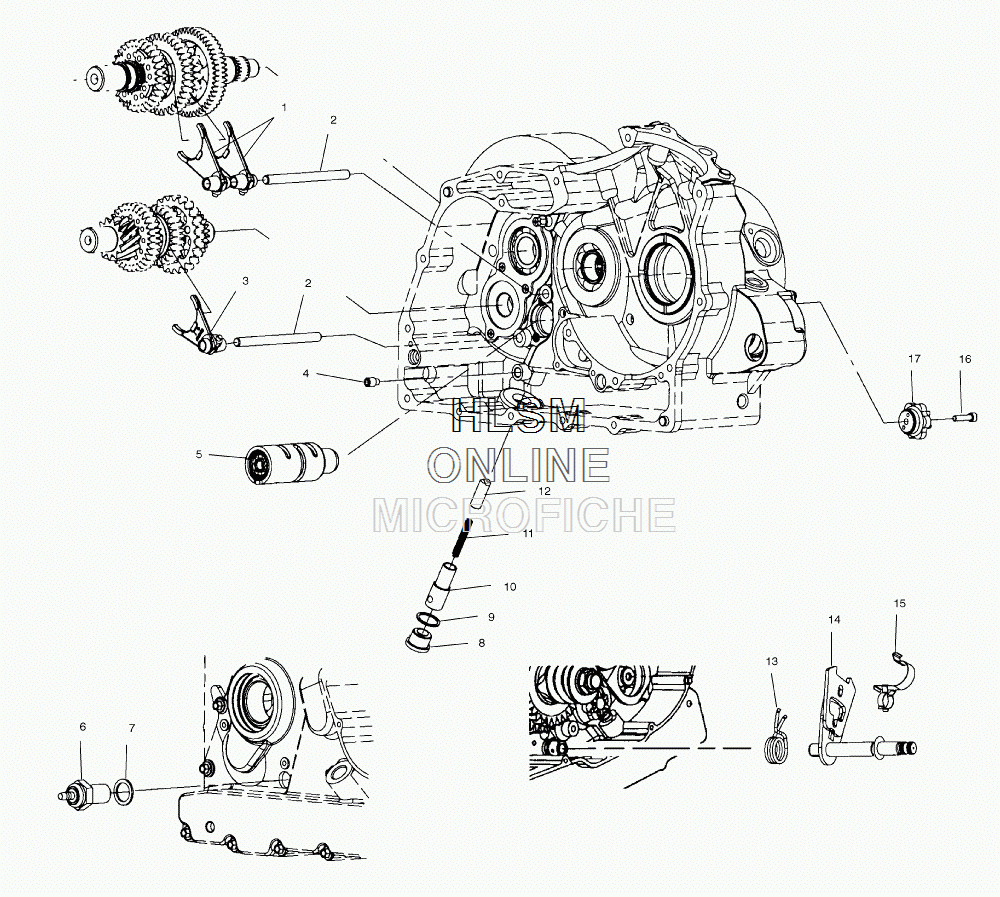

SHIFT FORKS/DRUM для Polaris STANDARD CRUISER (49 STATE) [V99CB15DA] - 1999 года выпуска
-
№АртикулНазвание
-
15131556 FORK,SHIFT,MAINSHAFT,MACH SFORK,SHIFT,MAINSHAFT,MACH S
-
25010423 RAIL,SHIFT FORKRAIL,SHIFT FORK
-
35131557 FORK,SHIFT,COUNTERSHAFT,MACH SFORK,SHIFT,COUNTERSHAFT,MACH S
-
47517449 SCREW,SET,M10X16SCREW,SET,M10X16
-
57661023 PIN,SOL,M4X8PIN,SOL,M4X8
-
55131555 DRUM,SHIFTERDRUM,SHIFTER
-
51341212 SHIFTER DRUM ASM. (INCL. BEARING, DRUM, PINS)SHIFTER DRUM ASM. (INCL. BEARING, DRUM, PINS)
-
53513518 BEARING,BALL,10X30X9BEARING,BALL,10X30X9
-
77556070 WSHR-FL,10.2X1.0,0600090 SWSHR-FL,10.2X1.0,0600090 S
-
85131488 PLUG,DRAINPLUG,DRAIN
-
97556039 WASHERWASHER
-
105010464 SLEEVE,DETENT PLUNGERSLEEVE,DETENT PLUNGER
-
117041581 SPRING,DETENTSPRING,DETENT
-
125131558 PLUNGER,DETENTPLUNGER,DETENT
-
137041583 SPRING,SHIFTERSPRING,SHIFTER
-
141341209 RATCHET ASM,SHIFTER S (INCL. 13,15,16)RATCHET ASM,SHIFTER S (INCL. 13,15,16)
-
157041582 SPRING,SHIFTER RATCHETSPRING,SHIFTER RATCHET
-
167556020 WASHER,THRUSTWASHER,THRUST
-
177517259 SCREW,SOCHD,SCREW,SOCHD,
-
185131565 STAR,SHIFTER,MACHSTAR,SHIFTER,MACH
-
141341209 RATCHET ASM,SHIFTER S (INCL. 13,15)RATCHET ASM,SHIFTER S (INCL. 13,15)
-
167517259 SCREW,SOCHD,SCREW,SOCHD,
-
175131565 STAR,SHIFTER,MACHSTAR,SHIFTER,MACH
