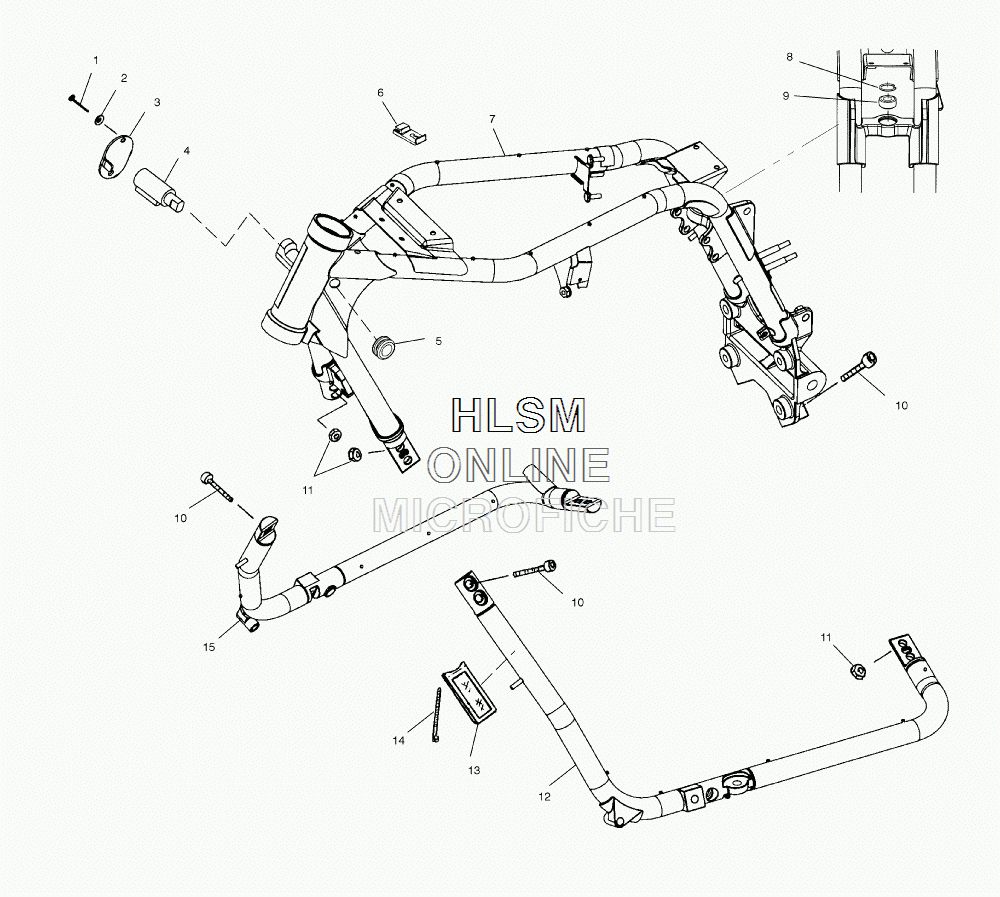

MAIN FRAME для Polaris STANDARD CRUISER (49 STATE) [V99CB15DA] - 1999 года выпуска
-
№АртикулНазвание
-
17661027 PIN,KNURLED,SS.PIN,KNURLED,SS.
-
27571637 WASHER,WAVE,SSWASHER,WAVE,SS
-
35242202 CAP,FORK LOCKCAP,FORK LOCK
-
47010085 LOCK,FR.FORK SLOCK,FR.FORK S
-
55411472 GROMMET,HEAD CASTINGGROMMET,HEAD CASTING
-
65433193 CLIP,POST,FRAMECLIP,POST,FRAME
-
71080005-067 FRAME,MAIN, BLACKFRAME,MAIN, BLACK
-
87710446 RING,SNAP,(FOX SP)RING,SNAP,(FOX SP)
-
93513506 BEARING,SPHERICALBEARING,SPHERICAL
-
107517358 SCREWSCREW
-
117547039 NUTNUT
-
121080008-067 TUBE, LEFT HAND,L0W.FR,CRADLE, BLACKTUBE, LEFT HAND,L0W.FR,CRADLE, BLACK
-
132670188 REFLECTOR ASM,FRONTREFLECTOR ASM,FRONT
-
147080138 STRAP PANDUITSTRAP PANDUIT
-
151080009-067 TUBE, RIGHT HAND,LOW.FR,CRADLE, BLACK.TUBE, RIGHT HAND,LOW.FR,CRADLE, BLACK.
