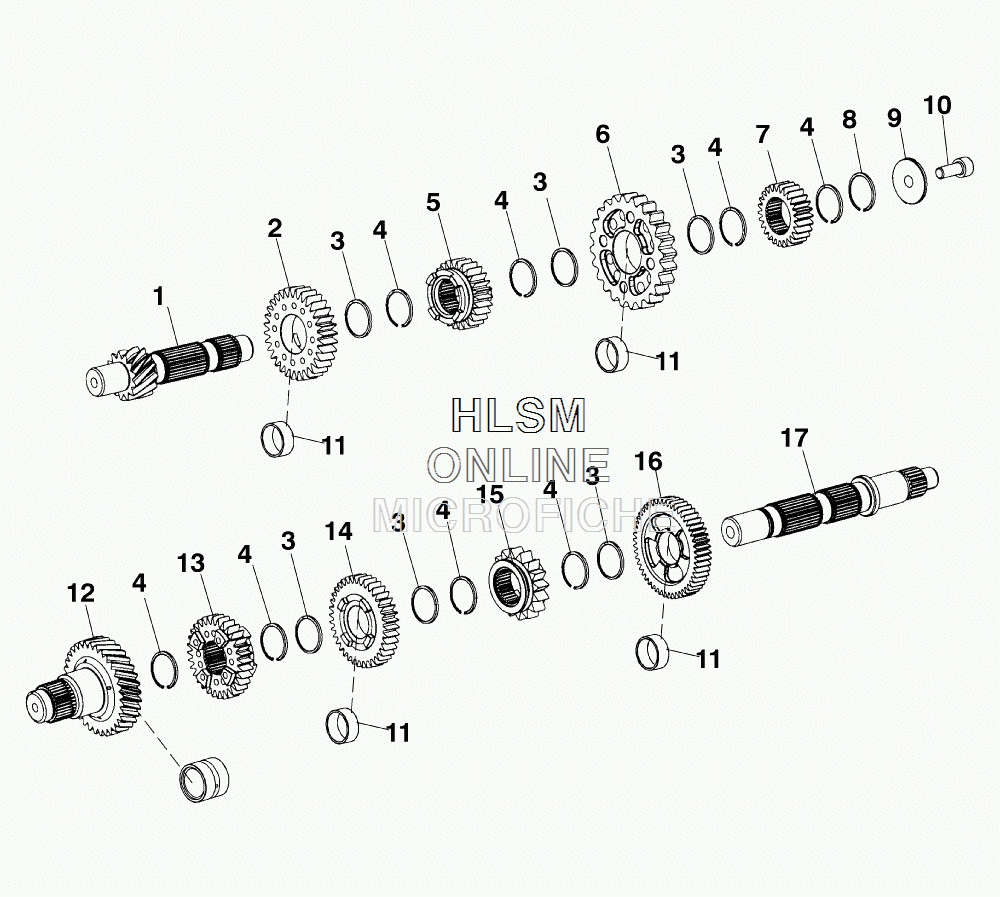

TRANSMISSION для Polaris STANDARD CRUISER (49 STATE) [V99CB15DA] - 1999 года выпуска
-
№АртикулНазвание
-
13230532 COUNTERSHAFT ASM. (INCL. 1-7,11)COUNTERSHAFT ASM. (INCL. 1-7,11)
-
16230117 SHAFT,COUNTER,13TSHAFT,COUNTER,13T
-
26230119 GEAR,2ND,32T,COUNTERSHAFTGEAR,2ND,32T,COUNTERSHAFT
-
35211756 WASHER,THRUSTWASHER,THRUST
-
47710455 RING,RETAINERRING,RETAINER
-
56230120 GEAR,3RD,26T,COUNTERSHAFTGEAR,3RD,26T,COUNTERSHAFT
-
66230118 GEAR,1ST,24T,COUNTERSHAFTGEAR,1ST,24T,COUNTERSHAFT
-
76230121 GEAR,4TH,26T,COUNTERSHAFTGEAR,4TH,26T,COUNTERSHAFT
-
87710476 RING,EXT (NO LONGER AVAILABLE)RING,EXT (NO LONGER AVAILABLE)
-
97556057 WASHER,FLATWASHER,FLAT
-
107517587 SCREWSCREW
-
113584006 BEARING,ROLLERBEARING,ROLLER
-
123584007 BEARING,ROLLER,28X37X30BEARING,ROLLER,28X37X30
-
121341213 GEAR ASM,5TH (INCL. BEARING)GEAR ASM,5TH (INCL. BEARING)
-
136230113 GEAR,2ND,32T,MAINSHAFTGEAR,2ND,32T,MAINSHAFT
-
146230114 GEAR,3RD,38T,MAINSHAFTGEAR,3RD,38T,MAINSHAFT
-
156230112 GEAR,1ST,16T,MAINSHAFTGEAR,1ST,16T,MAINSHAFT
-
166230115 GEAR,4TH,51T,MAINSHAFTGEAR,4TH,51T,MAINSHAFT
-
173230534 MAINSHAFT ASM. (INCL. 3,4,8,13,14,15,16,17)MAINSHAFT ASM. (INCL. 3,4,8,13,14,15,16,17)
-
176230111 SHAFT,MAINSHAFT,MAIN
