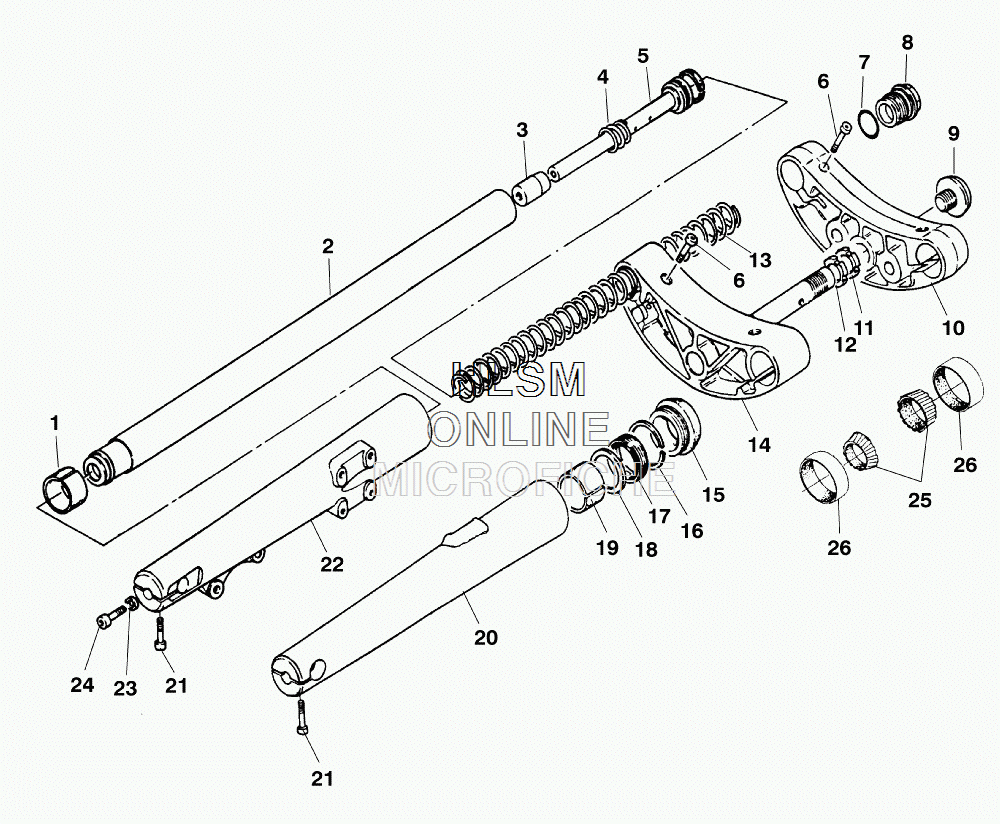

FRONT FORKS для Polaris STANDARD CRUISER (49 STATE) [V99CB15DA] - 1999 года выпуска
-
№АртикулНазвание
-
291843081 FORKLEG ASM, LEFT HAND,45MM. (INCL. 1-5,7-9,13-24)FORKLEG ASM, LEFT HAND,45MM. (INCL. 1-5,7-9,13-24)
-
291843082 FORKLEG ASM, RIGHT HAND,45MM. (INCL. 1-5,7-9,13-24)FORKLEG ASM, RIGHT HAND,45MM. (INCL. 1-5,7-9,13-24)
-
292871985 OIL,FORK,MARZOCCHI SAE7.5 SOIL,FORK,MARZOCCHI SAE7.5 S
-
13585714 BUSHING,LOWERBUSHING,LOWER
-
25131505 TUBE,STANCHION,45MMTUBE,STANCHION,45MM
-
35131498 FOOT,BUFFERFOOT,BUFFER
-
47041624 SPRING,REBOUNDSPRING,REBOUND
-
52201122 KIT,ROD DAMPERKIT,ROD DAMPER
-
51500171 SEGMENT,ROD DAMPERSEGMENT,ROD DAMPER
-
51500131 ROD,DAMPERROD,DAMPER
-
61500170 CLAMP,STAN.TUBE FASTENERCLAMP,STAN.TUBE FASTENER
-
75411330 O-RING,FORKO-RING,FORK
-
85131502 PLUG,FORKPLUG,FORK
-
95131497 BOLT,STEERING POST,CAPBOLT,STEERING POST,CAP
-
105131503 CLAMP,TRIPLE,UPPER SCLAMP,TRIPLE,UPPER S
-
115131953 NUT-STEERING POST,UPPERNUT-STEERING POST,UPPER
-
125131496 NUT,STEERING POSTNUT,STEERING POST
-
137041684 SPRING,COMP.SPRING,COMP.
-
141843096 CLAMP ASM,TRIPLE,LOWER S (INCL. 6,9,11,12)CLAMP ASM,TRIPLE,LOWER S (INCL. 6,9,11,12)
-
151500167 CAP,DUSTSEALCAP,DUSTSEAL
-
165211827 RING,STOPRING,STOP
-
173610068 SEAL,OILSEAL,OIL
-
185131504 CAP,OILSEALCAP,OILSEAL
-
193585715 BUSHING,UPPERBUSHING,UPPER
-
201843094 SLIDER UNIT, LEFT HAND SSLIDER UNIT, LEFT HAND S
-
211500168 CLAMP,AXLE FASTENERCLAMP,AXLE FASTENER
-
221843095 SLIDER UNIT, RIGHT HANDSLIDER UNIT, RIGHT HAND
-
233610069 WASHER,OILSEALWASHER,OILSEAL
-
241500169 RETAINER,DAMP.TUBE FASTENERRETAINER,DAMP.TUBE FASTENER
-
253554510 BEARING,TPR.RLR,SEALEDBEARING,TPR.RLR,SEALED
-
263554507 BRG,TAPER,ROLL CUPBRG,TAPER,ROLL CUP
