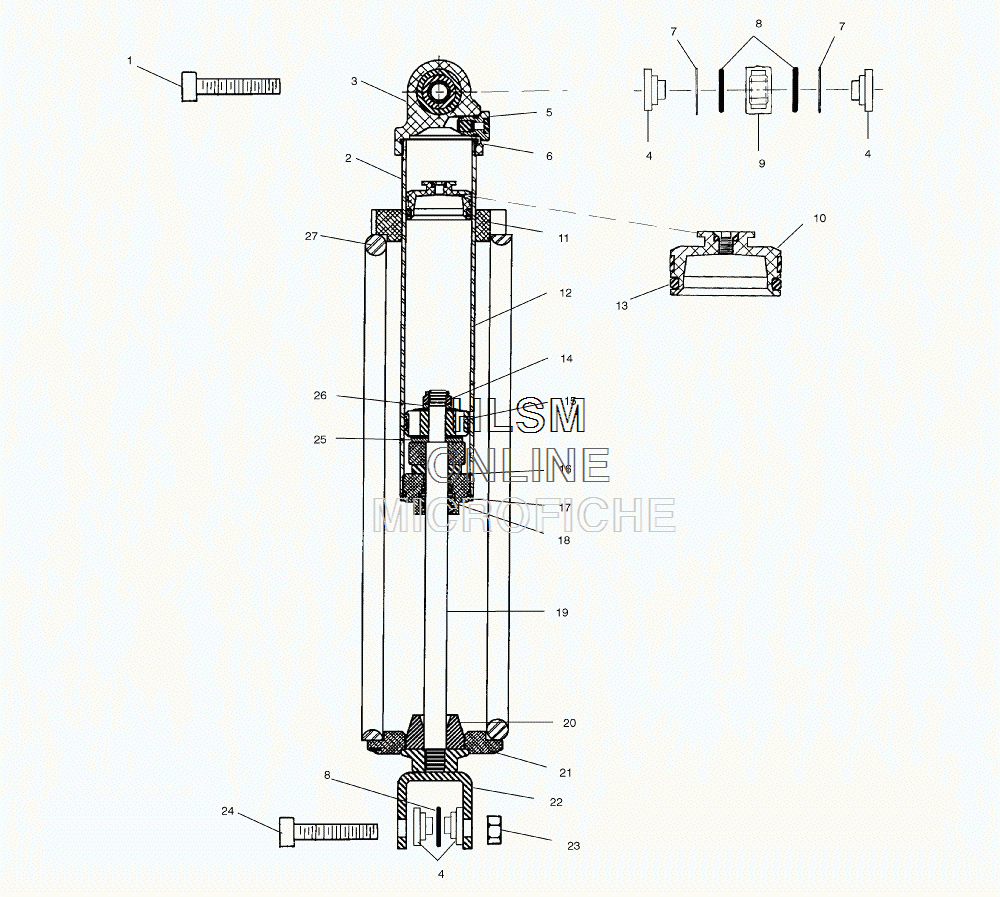

REAR SHOCK для Polaris STANDARD CRUISER (49 STATE) [V99CB15DA] - 1999 года выпуска
-
№АртикулНазвание
-
17517367 SCREW (REAR SHOCK MOUNTING)SCREW (REAR SHOCK MOUNTING)
-
21500174 SHOCKSHOCK
-
31500175 BODY CAP,V92CBODY CAP,V92C
-
41500173 REDUCER,STD.CRUISER SREDUCER,STD.CRUISER S
-
51500019 SCREWSCREW
-
61500004 O-RING,BODY,FOX,.139W-1.234IDO-RING,BODY,FOX,.139W-1.234ID
-
71500093 O-RING,(FOX),SPO-RING,(FOX),SP
-
83513506 BEARING,SPHERICALBEARING,SPHERICAL
-
97710446 RING,SNAP,(FOX SP)RING,SNAP,(FOX SP)
-
107547039 NUTNUT
-
111500011 PISTONPISTON
-
121500176 RING-SPRING PRELOAD SRING-SPRING PRELOAD S
-
131500181 BODY-1.459BORE,5.75OTLG,STEELBODY-1.459BORE,5.75OTLG,STEEL
-
141500180 O-RING-HIGH TEMP,IFPO-RING-HIGH TEMP,IFP
-
151500016 NUT,LOCKNUT,LOCK
-
161500002 DAMPER,PISTONRING,FOXDAMPER,PISTONRING,FOX
-
171500074 BUMPER,RUBBERBUMPER,RUBBER
-
181500020 O-RING,.103W-1.299IDO-RING,.103W-1.299ID
-
191500146 BRG.ASM,W/BLEEDANDDU. SBRG.ASM,W/BLEEDANDDU. S
-
201500177 SHAFT-0.498 OD X 5.85 TLGSHAFT-0.498 OD X 5.85 TLG
-
215410855 BUMPER,JOUNCEBUMPER,JOUNCE
-
221500178 RETAINER-SPRING,V92CRETAINER-SPRING,V92C
-
231500179 EYELET-CLEVIS,V92CEYELET-CLEVIS,V92C
-
247517358 SCREW (FRONT SHOCK MOUNTING)SCREW (FRONT SHOCK MOUNTING)
-
251500017 PLATE,TOP OUTPLATE,TOP OUT
-
261500015 BUSHING,BACKUPBUSHING,BACKUP
-
277041759 SPRING-SHOCK,V92C,460 LBSSPRING-SHOCK,V92C,460 LBS
-
17517364 SCREW S (REAR SHOCK MOUNTING)SCREW S (REAR SHOCK MOUNTING)
-
77710446 RING,SNAP,(FOX SP)RING,SNAP,(FOX SP)
-
81500093 O-RING,(FOX),SPO-RING,(FOX),SP
-
93513506 BEARING,SPHERICALBEARING,SPHERICAL
-
101500011 PISTONPISTON
-
111500176 RING-SPRING PRELOAD SRING-SPRING PRELOAD S
-
121500181 BODY-1.459BORE,5.75OTLG,STEELBODY-1.459BORE,5.75OTLG,STEEL
-
131500180 O-RING-HIGH TEMP,IFPO-RING-HIGH TEMP,IFP
-
141500016 NUT,LOCKNUT,LOCK
-
151500002 DAMPER,PISTONRING,FOXDAMPER,PISTONRING,FOX
-
161500074 BUMPER,RUBBERBUMPER,RUBBER
-
171500020 O-RING,.103W-1.299IDO-RING,.103W-1.299ID
-
181500146 BRG.ASM,W/BLEEDANDDU. SBRG.ASM,W/BLEEDANDDU. S
-
191500177 SHAFT-0.498 OD X 5.85 TLGSHAFT-0.498 OD X 5.85 TLG
-
205410855 BUMPER,JOUNCEBUMPER,JOUNCE
-
211500178 RETAINER-SPRING,V92CRETAINER-SPRING,V92C
-
221500179 EYELET-CLEVIS,V92CEYELET-CLEVIS,V92C
-
237547039 NUTNUT
-
231580108 SHOCK ASM,REARSHOCK ASM,REAR
