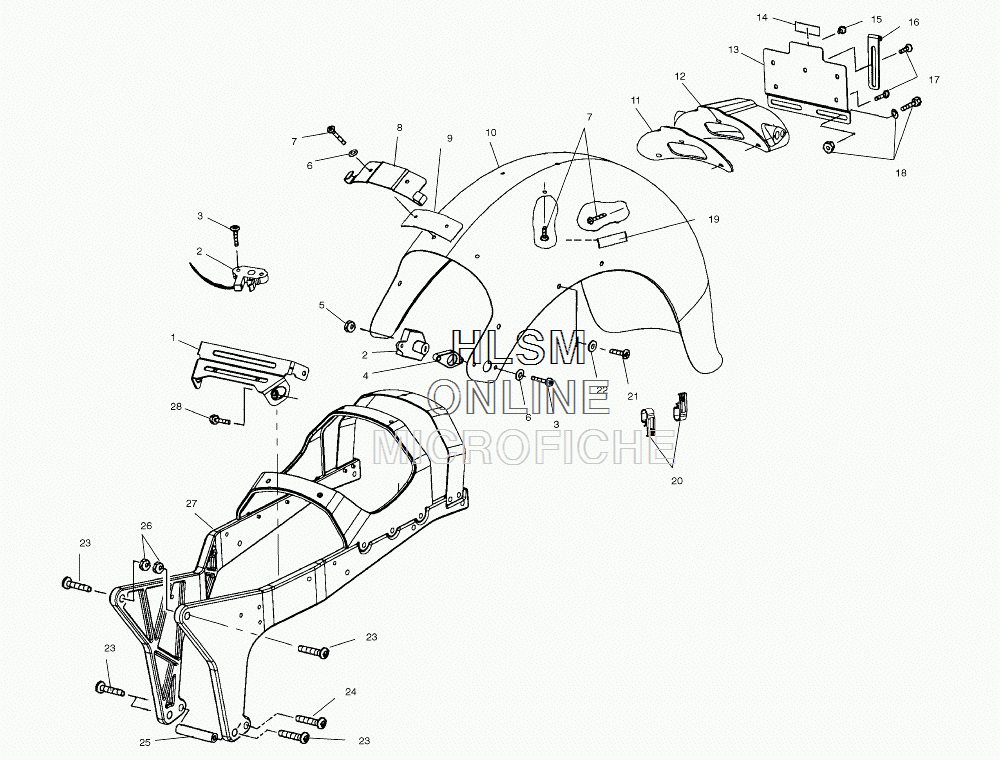

SUBFRAME & REAR FENDER для Polaris STANDARD CRUISER (49 STATE) [V99CB15DA] - 1999 года выпуска
-
№АртикулНазвание
-
11080025-067 LOCK,R.SEAT, BLACK.LOCK,R.SEAT, BLACK.
-
27010088 LOCK,SEAT (NO LONGER AVAILABLE)LOCK,SEAT (NO LONGER AVAILABLE)
-
37517355 SCREWSCREW
-
45131799-067 SPACER,SEATLOCK RELEASE, BLACKSPACER,SEATLOCK RELEASE, BLACK
-
57547041 NUT SNUT S
-
67556064 WASHERWASHER
-
77517370 SCREW SSCREW S
-
85241889 SUPPORT,HELMET HOOK,REAR (NO LONGER AVAILABLE)SUPPORT,HELMET HOOK,REAR (NO LONGER AVAILABLE)
-
95811649 PAD,SEAT LATCH (NO LONGER AVAILABLE)PAD,SEAT LATCH (NO LONGER AVAILABLE)
-
101013025-1088 FENDER,REAR (ANTARES RED)FENDER,REAR (ANTARES RED)
-
101013025-1084 FENDER,REAR (KYSO BLUE)FENDER,REAR (KYSO BLUE)
-
115811539 PAD,SIGNAL/LICENSE BRKT.PAD,SIGNAL/LICENSE BRKT.
-
125131819 BRKT,SIGNAL,MACHBRKT,SIGNAL,MACH
-
135242249 BRKT,LICENSE PLATEBRKT,LICENSE PLATE
-
145432992 REFLECTOR,REAR,REDREFLECTOR,REAR,RED
-
155411323 BUMPER,GROMMETBUMPER,GROMMET
-
165241885 RETAINER,LIC.PLATERETAINER,LIC.PLATE
-
177517494 SCREWSCREW
-
182201394 LICENSE PLATE HARDWARE,KITLICENSE PLATE HARDWARE,KIT
-
195432965 REFLECTOR,SIDE,REDREFLECTOR,SIDE,RED
-
207080737 CLIP,ELECTRICALCLIP,ELECTRICAL
-
217517484 SCREWSCREW
-
225131943 BUSHING,R.FENDERBUSHING,R.FENDER
-
237517367 SCREWSCREW
-
247517554 SCREWSCREW
-
255010465-067 SUPPORT,PASS PEG, BLACKSUPPORT,PASS PEG, BLACK
-
267547039 NUTNUT
-
271080006-067 SUBFRAME ASM,REAR, BLACK.SUBFRAME ASM,REAR, BLACK.
-
287517438 SCREWSCREW
