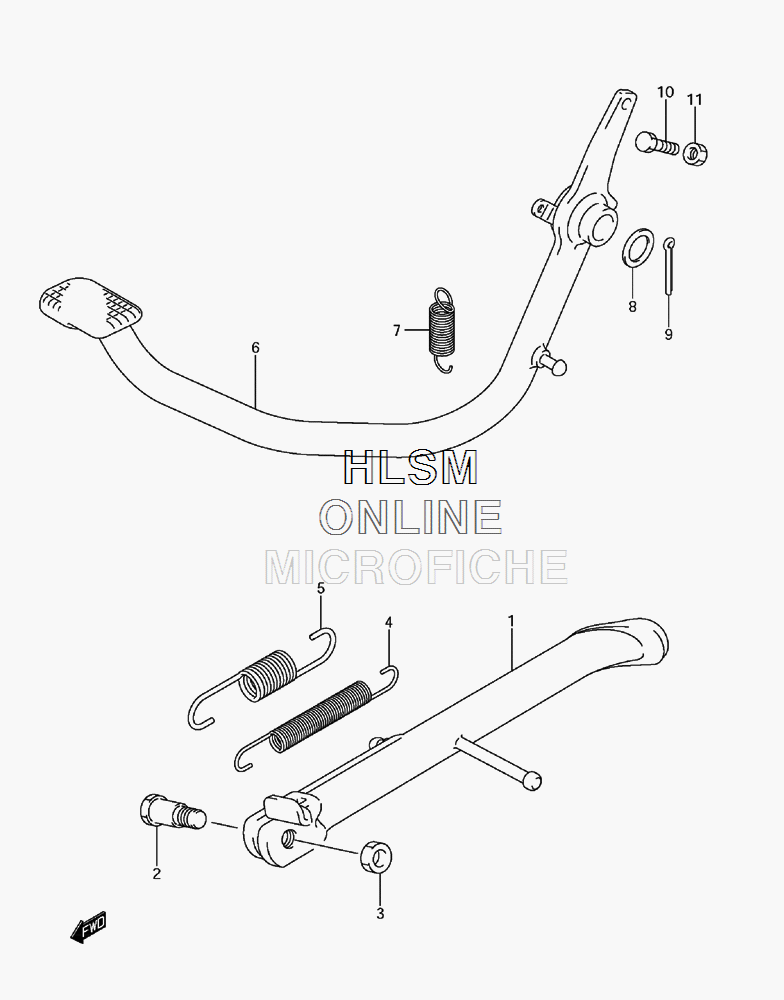

BRAKE PEDAL W/ STAND для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
142310-26G10 STAND, PROPSTAND, PROP
-
209111-10036 BOLTBOLT
-
308319-3110B NUTNUT
-
409443-12036 SPRING, INNERSPRING, INNER
-
509443-19010 SPRING, OUTERSPRING, OUTER
-
643110-26G00 PEDAL, BRAKEPEDAL, BRAKE
-
709443-14013 SPRINGSPRING
-
809160-15002 WASHERWASHER
-
904111-3025A COTTER PINCOTTER PIN
-
1009100-06009 BOLTBOLT
-
1108310-0006B NUTNUT
