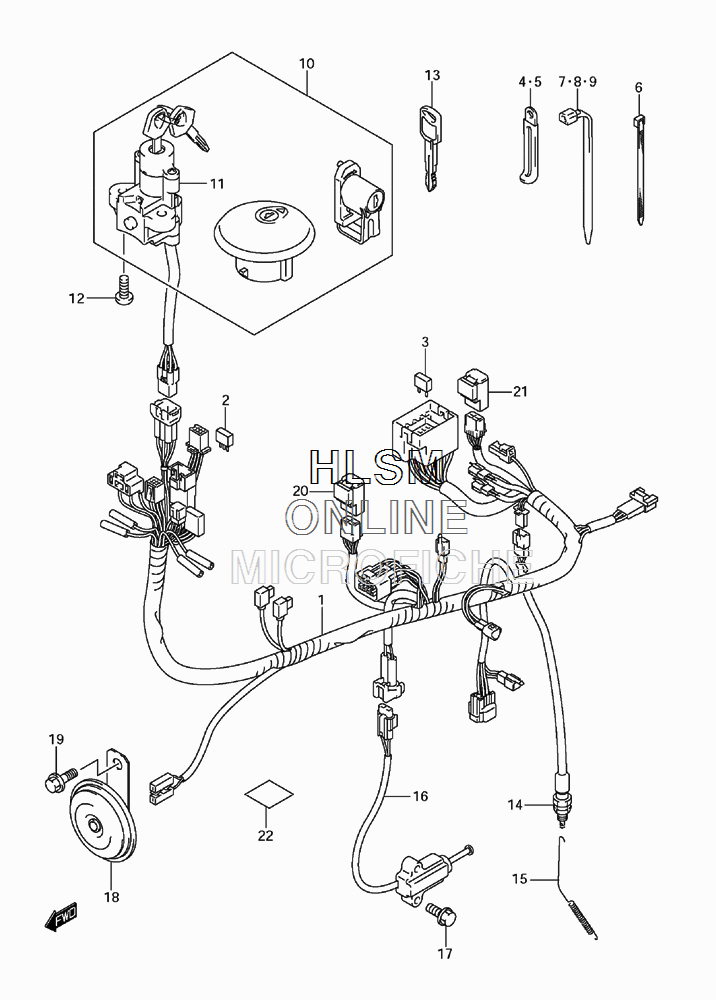

ELECTRICAL - WIRING HARNESS для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
136610-26G40 HARNESS, WIRING (INC 2-3)HARNESS, WIRING (INC 2-3)
-
236611-38A00 DIODEDIODE
-
309481-10501 FUSE (10A)FUSE (10A)
-
409404-06433 CLAMP (L:80)CLAMP (L:80)
-
509404-08419 CLAMP (L:80)CLAMP (L:80)
-
609407-10403 CLAMP (L:95)CLAMP (L:95)
-
709407-11401 CLAMP (L:95)CLAMP (L:95)
-
809407-14403 CLAMP (L:125)CLAMP (L:125)
-
909407-19401 CLAMP (L:190)CLAMP (L:190)
-
1037106-33890 LOCK SET (INC 11)LOCK SET (INC 11)
-
1137100-33EB0 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1209139-08016 BOLT (8X20)BOLT (8X20)
-
1337146-33E00 KEY, BLANKKEY, BLANK
-
1437740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1509443-06031 SPRINGSPRING
-
1637840-35F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1701550-0616B BOLTBOLT
-
1838500-26G10 HORN ASSYHORN ASSY
-
1901550-0812B BOLTBOLT
-
2038740-26E00 RELAY ASSY, CHECKRELAY ASSY, CHECK
-
2138740-26E00 RELAY ASSY, MAINRELAY ASSY, MAIN
-
2236611-41F00 PROTECTOR (35X35)PROTECTOR (35X35)
