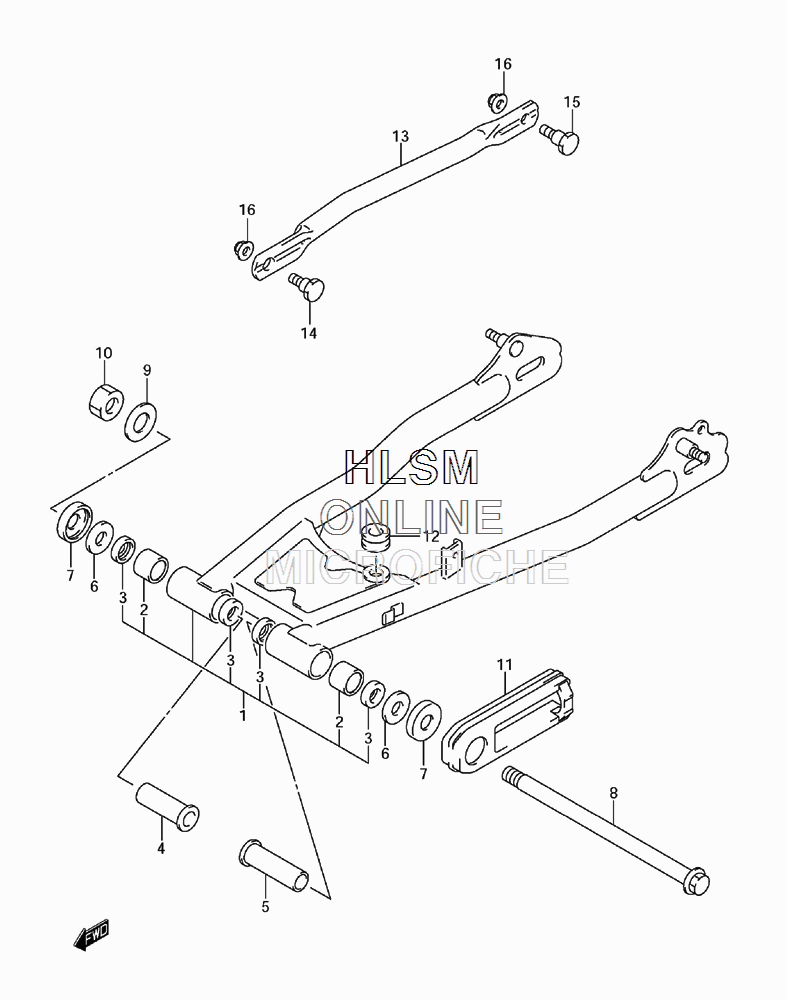

SUSPENSION - REAR SWING ARM для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
161000-25D80-YD8 SWINGINGARM ASSY, REAR (SILVER) (INC 2-3)SWINGINGARM ASSY, REAR (SILVER) (INC 2-3)
-
261261-13700 BUSH, REAR SWINGINGARM PIVOTBUSH, REAR SWINGINGARM PIVOT
-
309283-20031 SEAL, OIL (20X27X5)SEAL, OIL (20X27X5)
-
461251-38300 SPACER, SWINGINGARM PIVOT RIGHT HANDSPACER, SWINGINGARM PIVOT RIGHT HAND
-
561252-38300 SPACER, SWINGINGARM PIVOT LEFT HANDSPACER, SWINGINGARM PIVOT LEFT HAND
-
608211-15321 WASHERWASHER
-
761262-38300 COVER, SWINGINGARM PIVOT DUSTCOVER, SWINGINGARM PIVOT DUST
-
861211-38310 SHAFT, REAR SWINGINGARM PIVOTSHAFT, REAR SWINGINGARM PIVOT
-
908322-0114B WASHERWASHER
-
1008319-2114A NUTNUT
-
1161273-25D50 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1209320-08020 CUSHION, CHAIN CASE FRONTCUSHION, CHAIN CASE FRONT
-
1364310-26G00 TORQUELINK, REARTORQUELINK, REAR
-
1409111-08098 BOLT (8X21)BOLT (8X21)
-
1509111-08067 BOLT (8X24)BOLT (8X24)
-
1608319-3108A NUTNUT
