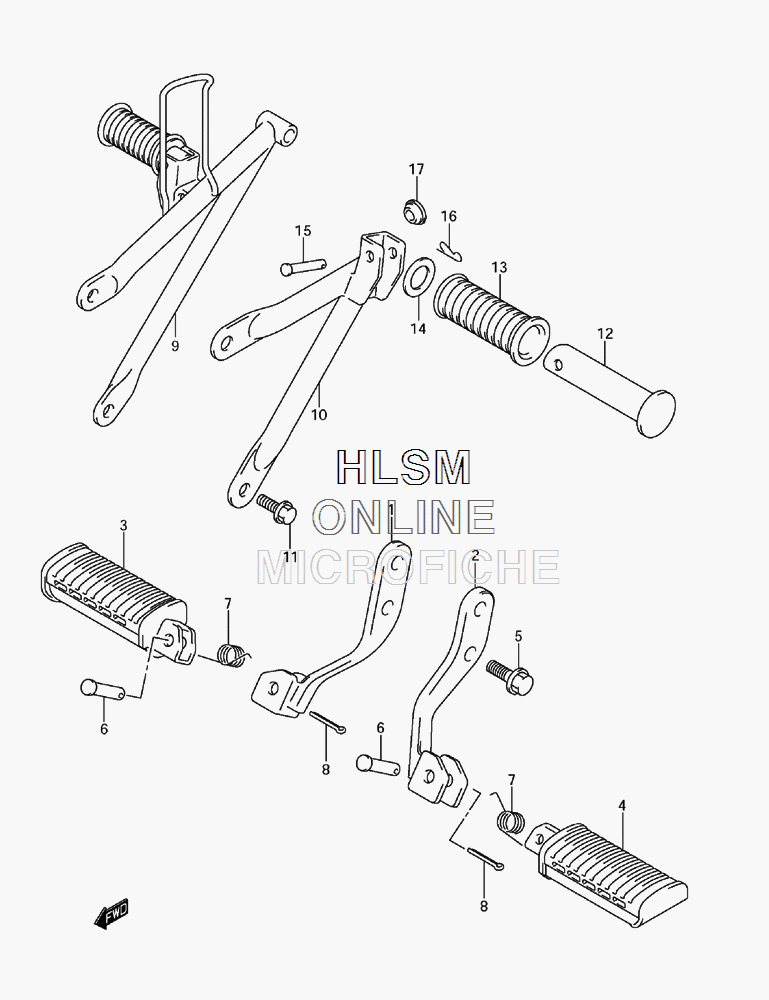

FOOTREST для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
143510-26G00 BAR, FRONT FOOTREST RIGHT HANDBAR, FRONT FOOTREST RIGHT HAND
-
243520-26G00 BAR, FRONT FOOTREST LEFT HANDBAR, FRONT FOOTREST LEFT HAND
-
343550-37301 RUBBER, RIGHT HANDRUBBER, RIGHT HAND
-
443560-37301 RUBBER, LEFT HANDRUBBER, LEFT HAND
-
501550-1025B BOLTBOLT
-
609200-08002 PINPIN
-
709448-14012 SPRINGSPRING
-
804111-2020A COTTER PINCOTTER PIN
-
943810-26G01-YD8 TUBE, PILLION RIGHT HAND (SILVER)TUBE, PILLION RIGHT HAND (SILVER)
-
1043820-26G01-YD8 TUBE, PILLION LEFT HAND (SILVER)TUBE, PILLION LEFT HAND (SILVER)
-
1101550-1020B BOLTBOLT
-
1243610-03001 BAR, PILLIONBAR, PILLION
-
1343612-33200 RUBBERRUBBER
-
1409160-19024 WASHERWASHER
-
1509200-06033 PINPIN
-
1609385-06012 CLIPCLIP
-
1709250-15010 PLUG, LEFT HANDPLUG, LEFT HAND
