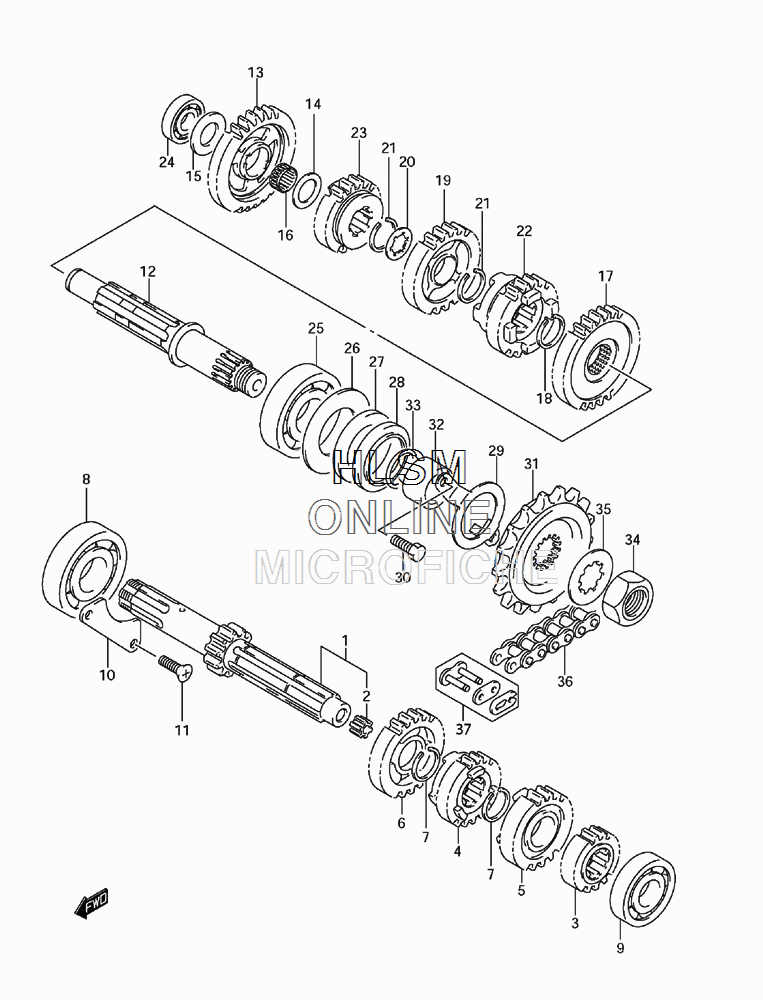

TRANSMISSION для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
124120-38203 SHAFT, COUNTER (NT:11) (INC 2)SHAFT, COUNTER (NT:11) (INC 2)
-
224125-38201 BUSHBUSH
-
324221-32412 GEAR, 2ND DRIVE (NT:16)GEAR, 2ND DRIVE (NT:16)
-
424231-38220 GEAR, 3RD DRIVE (NT:20)GEAR, 3RD DRIVE (NT:20)
-
524241-32420 GEAR, 4TH DRIVE (NT:21)GEAR, 4TH DRIVE (NT:21)
-
624251-32420 GEAR, 5TH DRIVE (NT:22)GEAR, 5TH DRIVE (NT:22)
-
709380-22006 CIRCLIP, 4TH/5TH DRIVE GEARCIRCLIP, 4TH/5TH DRIVE GEAR
-
809262-22025 BEARING (22X56X16)BEARING (22X56X16)
-
909262-17046 BEARING (17X40X12)BEARING (17X40X12)
-
1024741-38200 RETAINER, CNTR SHAFT BEARINGRETAINER, CNTR SHAFT BEARING
-
1109125-06110 BOLT (6X12)BOLT (6X12)
-
1224130-38301 SHAFT, DRIVESHAFT, DRIVE
-
1324311-32401 GEAR, 1ST DRIVEN (NT:29)GEAR, 1ST DRIVEN (NT:29)
-
1409181-17195 SHIM (17X28X1)SHIM (17X28X1)
-
1508211-17283 WASHER, 1ST DRIVENWASHER, 1ST DRIVEN
-
1609263-17004 BEARING (17X21X9.8)BEARING (17X21X9.8)
-
1724320-32411 GEAR, 2ND DRIVEN (NT:27)GEAR, 2ND DRIVEN (NT:27)
-
1809380-22006 CIRCLIPCIRCLIP
-
1924330-38202 GEAR, 3RD DRIVE (NT:24)GEAR, 3RD DRIVE (NT:24)
-
2009167-22011 WASHER, 3RD DRIVEN GEARWASHER, 3RD DRIVEN GEAR
-
2109380-22006 CIRCLIPCIRCLIP
-
2224341-38220 GEAR, 4TH DRIVEN (NT:20)GEAR, 4TH DRIVEN (NT:20)
-
2324351-38201 GEAR, 5TH DRIVEN (NT:18)GEAR, 5TH DRIVEN (NT:18)
-
2408110-62030 BEARING, DRIVE SHAFT, RBEARING, DRIVE SHAFT, R
-
2509262-22025 BEARING (22X56X16)BEARING (22X56X16)
-
2609160-35007 WASHER (35X55X1)WASHER (35X55X1)
-
2709282-30004 SEAL, DRIVE SHAFT (30X43X5)SEAL, DRIVE SHAFT (30X43X5)
-
2809283-30041 SEAL, DRIVE SHAFT (30X43X7)SEAL, DRIVE SHAFT (30X43X7)
-
2924751-38210 RETAINER, DRIVE SHAFT OIL SEALRETAINER, DRIVE SHAFT OIL SEAL
-
3001500-0612B SCREWSCREW
-
3127510-25D00 SPROCKET, ENGINE (NT:15)SPROCKET, ENGINE (NT:15)
-
3227531-38300 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
3309280-21008 O-RING (D:2.5,ID:21)O-RING (D:2.5,ID:21)
-
3409140-18008 NUT, ENGINE SPROCKETNUT, ENGINE SPROCKET
-
3509167-22012 WASHER, ENGINE SPROCKETWASHER, ENGINE SPROCKET
-
3627600-14A10-108 CHAIN ASSY, DRIVE (108LE)CHAIN ASSY, DRIVE (108LE)
-
3727620-14A10 JOINT SET, CHAINJOINT SET, CHAIN
