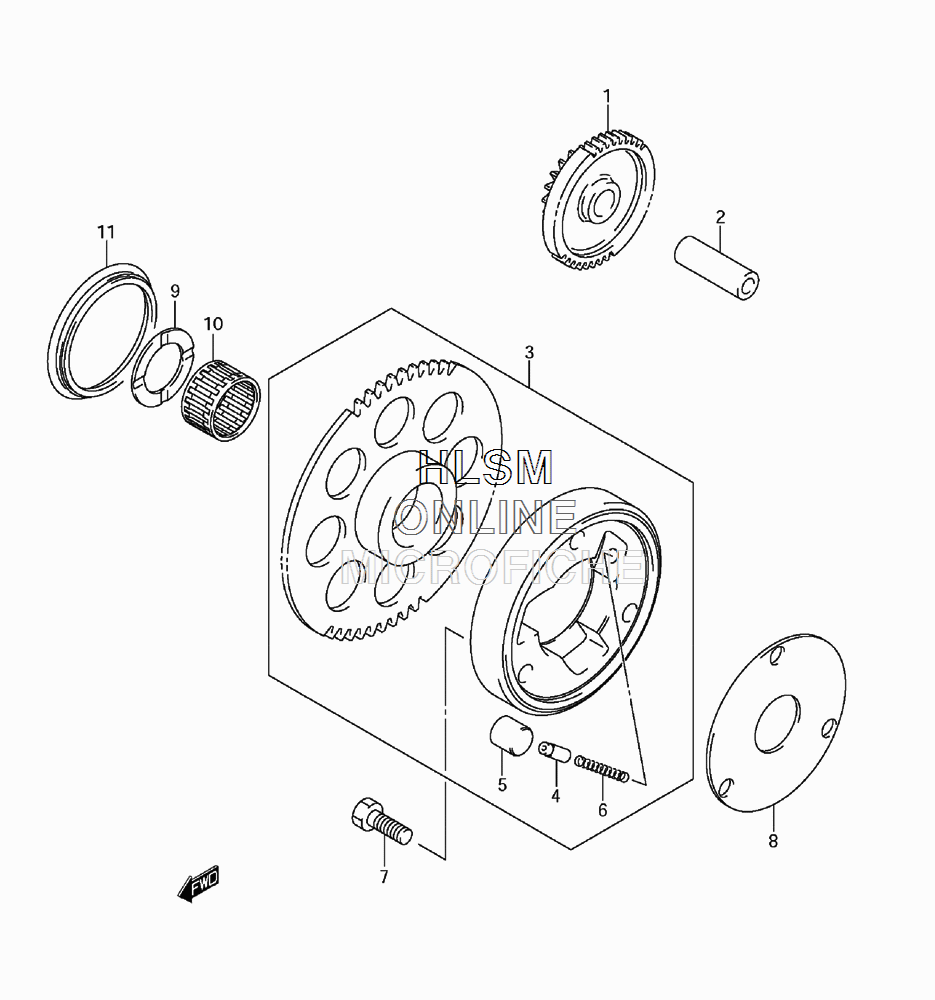

STARTER CLUTCH для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
112611-38301 GEAR, STARTER IDLEGEAR, STARTER IDLE
-
209206-13007 PINPIN
-
312600-38814 CLUTCH SET, STARTER (INC 4-6)CLUTCH SET, STARTER (INC 4-6)
-
412633-31000 PUSH PIECEPUSH PIECE
-
509261-14001 ROLLERROLLER
-
609440-04015 SPRINGSPRING
-
709100-08299 BOLT (8X20)BOLT (8X20)
-
812649-49300 SHIMSHIM
-
909160-27005 WASHERWASHER
-
1009263-27004 BEARINGBEARING
-
1109289-52002 SEALSEAL
