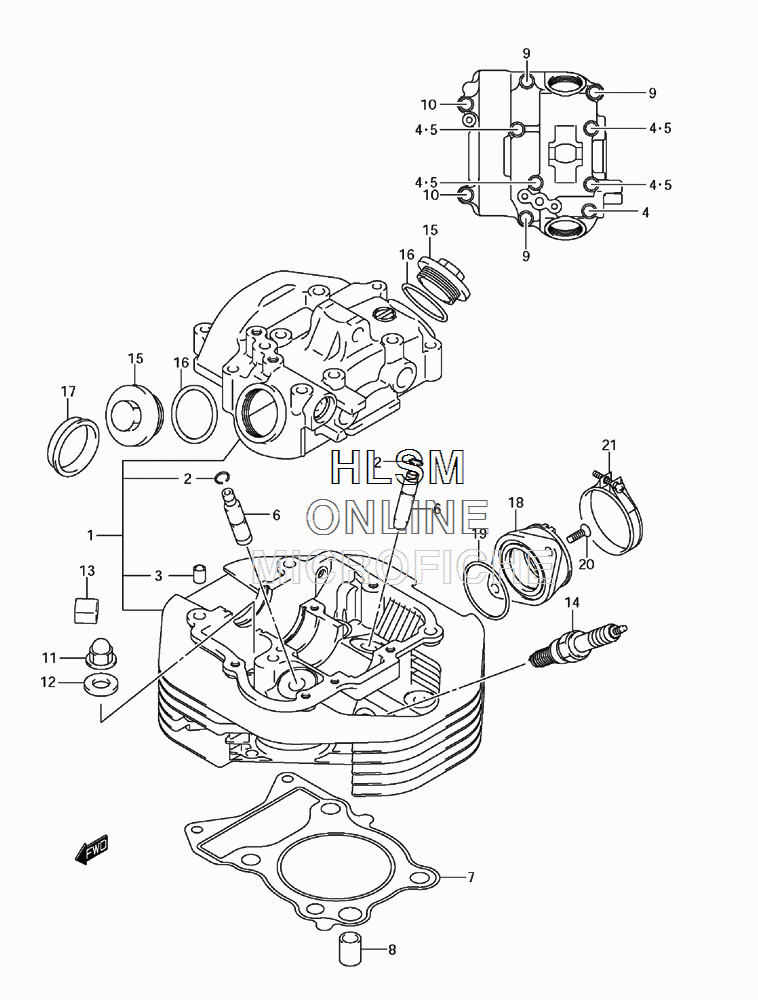

CYLINDER HEAD для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
111100-26G00 HEAD ASSY, CYLINDER (INC 2-5)HEAD ASSY, CYLINDER (INC 2-5)
-
209381-10004 RING, VALVE GUIDE SNAPRING, VALVE GUIDE SNAP
-
309206-08001 PINPIN
-
409103-06064 BOLT (6X60)BOLT (6X60)
-
509168-06023 GASKETGASKET
-
611115-05270 GUIDE, VALVE (OS 0.3)GUIDE, VALVE (OS 0.3)
-
711141-26G00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
804211-13189 PINPIN
-
901550-06457 BOLTBOLT
-
1008313-20067 NUTNUT
-
1109159-10026 NUTNUT
-
1209168-10017 GASKETGASKET
-
1311151-39300 PAD, RUBBERPAD, RUBBER
-
1409482-00223 PLUG, SPARK (DENSO,X24ESR-U)PLUG, SPARK (DENSO,X24ESR-U)
-
1409482-00399 PLUG, SPARK (NGK,DR8EA)PLUG, SPARK (NGK,DR8EA)
-
1511175-18900 CAP, INSPECTIONCAP, INSPECTION
-
1609280-30001 O RINGO RING
-
1709241-38001 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
1813110-26GA0 PIPE, INTAKEPIPE, INTAKE
-
1909280-40010 O RINGO RING
-
2002122-0616B SCREWSCREW
-
2109402-56901 CLAMPCLAMP
