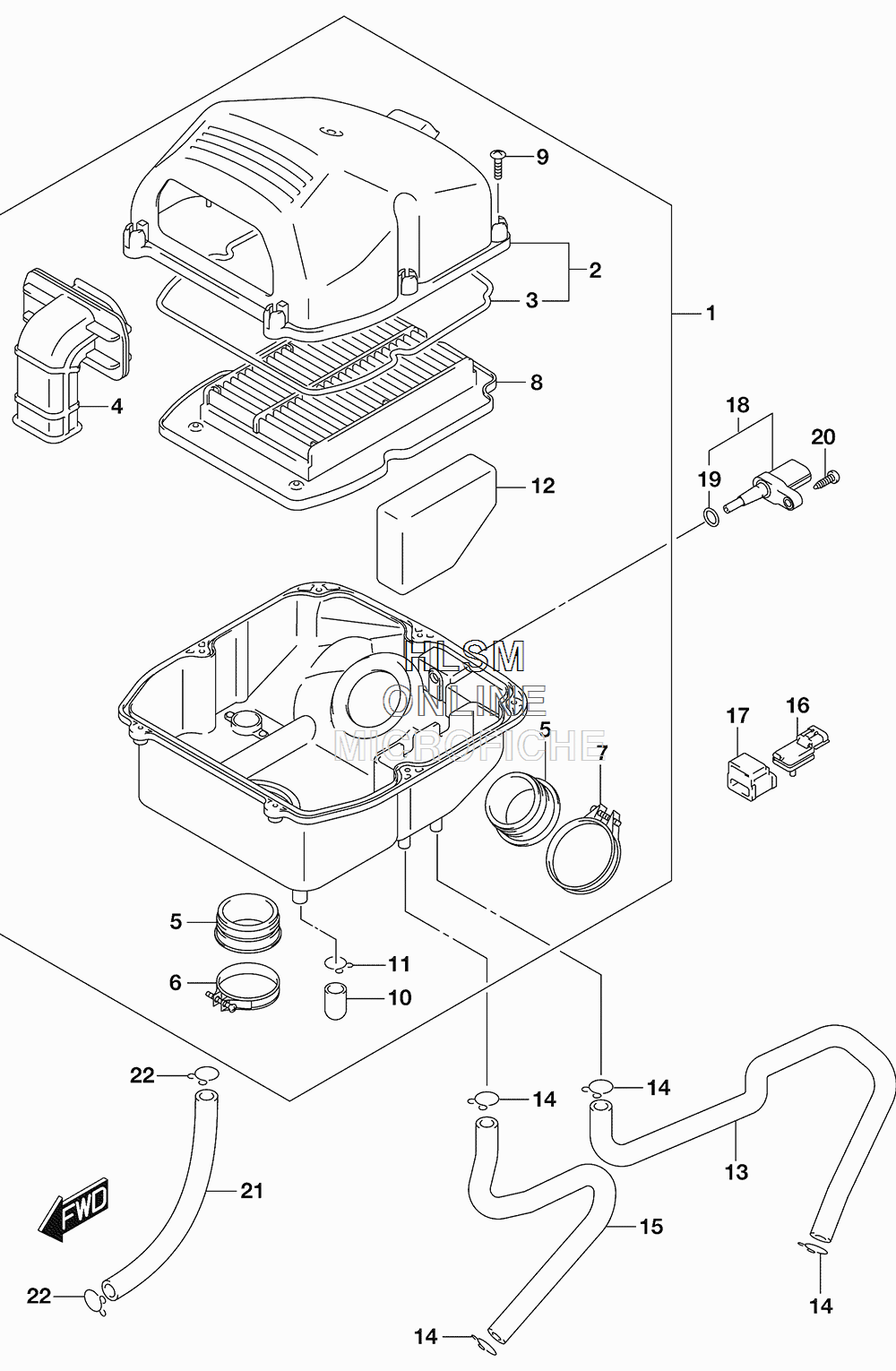

AIR CLEANER для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
113700-17G10 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213740-16G00 CAP, AIR CLEANERCAP, AIR CLEANER
-
313746-16G00 GASKETGASKET
-
413891-17G00 TUBE, INLETTUBE, INLET
-
513881-17G00 TUBE, OUTLETTUBE, OUTLET
-
613826-17G00 CLAMPCLAMP
-
713826-17G00 CLAMPCLAMP
-
813780-16G00 FILTERFILTER
-
903541-0520A SCREWSCREW
-
1013859-41B10 PLUGPLUG
-
1109401-14301 CLIPCLIP
-
1213788-17G00 FILTER, BREATHERFILTER, BREATHER
-
1313851-17G00 TUBE, BREATHER CRANKCASETUBE, BREATHER CRANKCASE
-
1409401-15101 CLIPCLIP
-
1513851-17G10 TUBE, BREATHER CYLINDERTUBE, BREATHER CYLINDER
-
1618591-41F00 SENSOR, PRESSURESENSOR, PRESSURE
-
1718595-41F00 HOLDER, SENSORHOLDER, SENSOR
-
1813650-41F10 SENSOR AIR TEMPSENSOR AIR TEMP
-
1913655-41F10 O RINGO RING
-
2003511-0516A SCREWSCREW
-
2113865-17G00 HOSE, ISC VALVEHOSE, ISC VALVE
-
2209401-15101 CLIPCLIP
