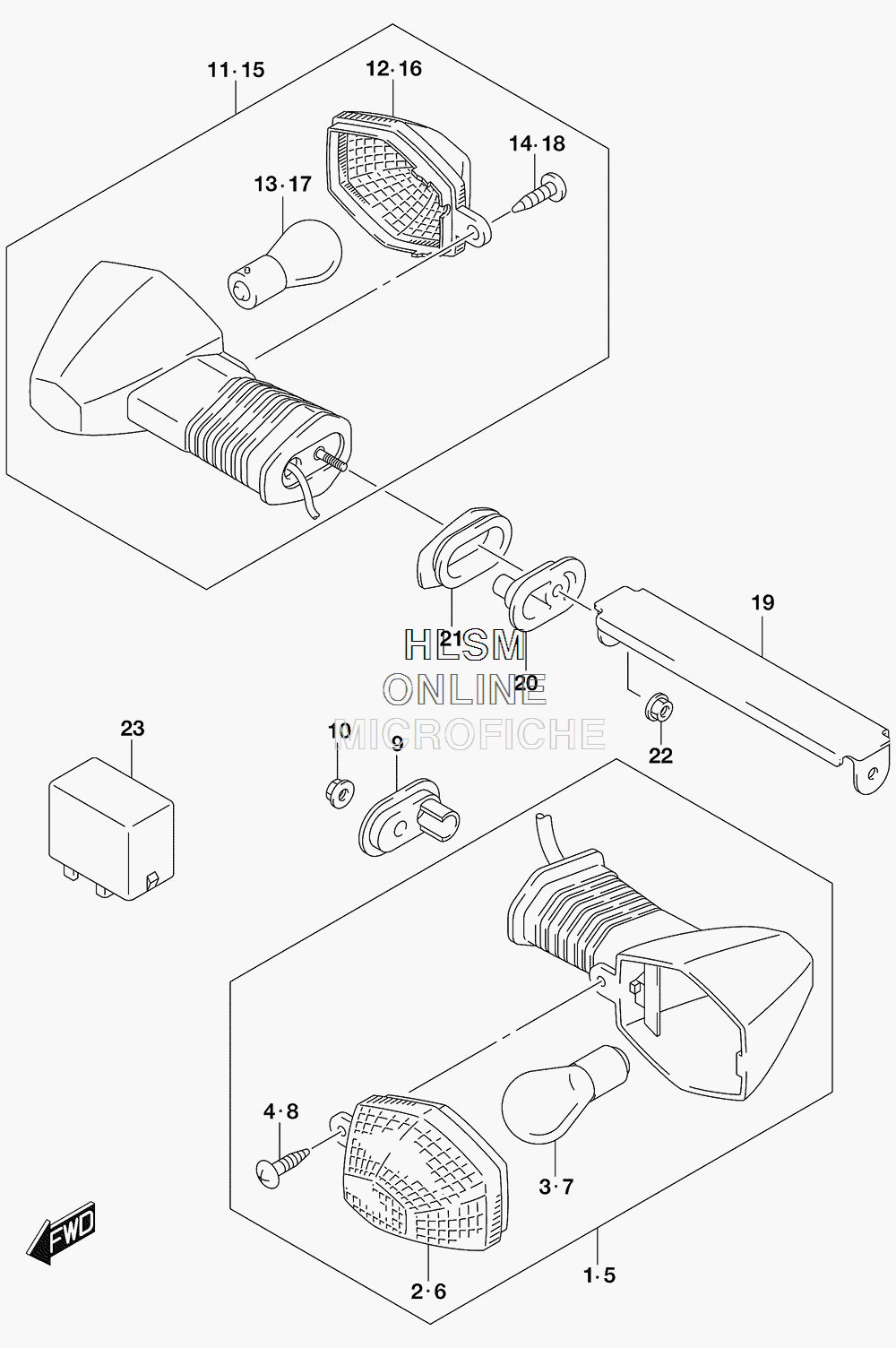

TURN SIGNAL ASSY. для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
135601-29FC0 LAMP ASSY, FRONT TURNSIGNAL RIGHT HANDLAMP ASSY, FRONT TURNSIGNAL RIGHT HAND
-
235612-29FA0 LENSLENS
-
309471-12186 BULB (12V,21W) (AMBER)BULB (12V,21W) (AMBER)
-
403241-0416B SCREWSCREW
-
535602-29FC0 LAMP ASSY, FRONT TURNSIGNAL LEFT HANDLAMP ASSY, FRONT TURNSIGNAL LEFT HAND
-
635632-29FA0 LENSLENS
-
709471-12186 BULB (12V,21W) (AMBER)BULB (12V,21W) (AMBER)
-
803241-0416B SCREWSCREW
-
935629-31F40 PLATE, FRONT TURNSIGNALPLATE, FRONT TURNSIGNAL
-
1008316-1005A NUTNUT
-
1135603-16GD0 LAMP ASSY, REAR TURNSIGNAL RIGHT HANDLAMP ASSY, REAR TURNSIGNAL RIGHT HAND
-
1235632-29FA0 LENS, RIGHT HANDLENS, RIGHT HAND
-
1309471-12186 BULB (12V,21W) (AMBER)BULB (12V,21W) (AMBER)
-
1403242-0416B SCREWSCREW
-
1535604-16GD0 LAMP ASSY, REAR TURNSIGNAL LEFT HANDLAMP ASSY, REAR TURNSIGNAL LEFT HAND
-
1635612-29FA0 LENS, LEFT HANDLENS, LEFT HAND
-
1709471-12186 BULB (12V,21W) (AMBER)BULB (12V,21W) (AMBER)
-
1803242-0416B SCREWSCREW
-
1935620-16G00 BRACKET, REAR TURNSIGNALBRACKET, REAR TURNSIGNAL
-
2035629-16G00 PLATE, REAR TURNSIGNALPLATE, REAR TURNSIGNAL
-
2135647-16G00 CUSHION, REARCUSHION, REAR
-
2208316-1005A NUTNUT
-
2338610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
