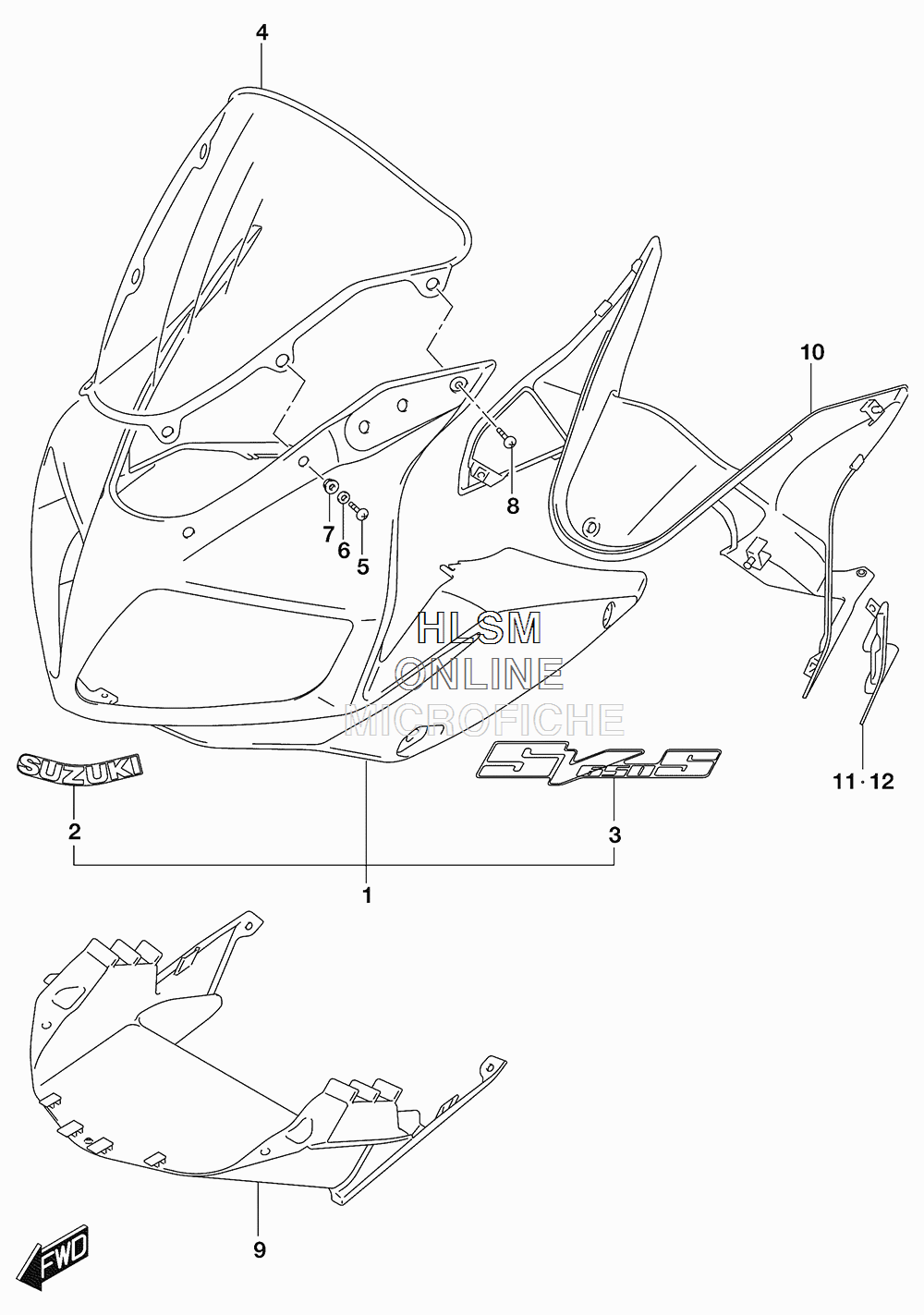

COWLING BODY (YAY) для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
194401-17G00-4EX COWLING, BODY (BLACK)COWLING, BODY (BLACK)
-
268280-04F00-YD8 EMBLEM, ''SUZUKI'' (SILVER)EMBLEM, ''SUZUKI'' (SILVER)
-
368281-17G00-GLU EMBLEM, BODY COWLEMBLEM, BODY COWL
-
494610-16G01 WINDSCREENWINDSCREEN
-
509139-05025 SCREW (5X14)SCREW (5X14)
-
608322-0105B WASHERWASHER
-
709159-05019 NUTNUT
-
809132-05053 SCREW (5X16)SCREW (5X16)
-
994461-16G00 COVER, INNERCOVER, INNER
-
1094630-16G00 PANEL, METERPANEL, METER
-
1194641-16G00 LID, METER PANEL RIGHT HANDLID, METER PANEL RIGHT HAND
-
1294651-16G00 LID, METER PANEL LEFT HANDLID, METER PANEL LEFT HAND
