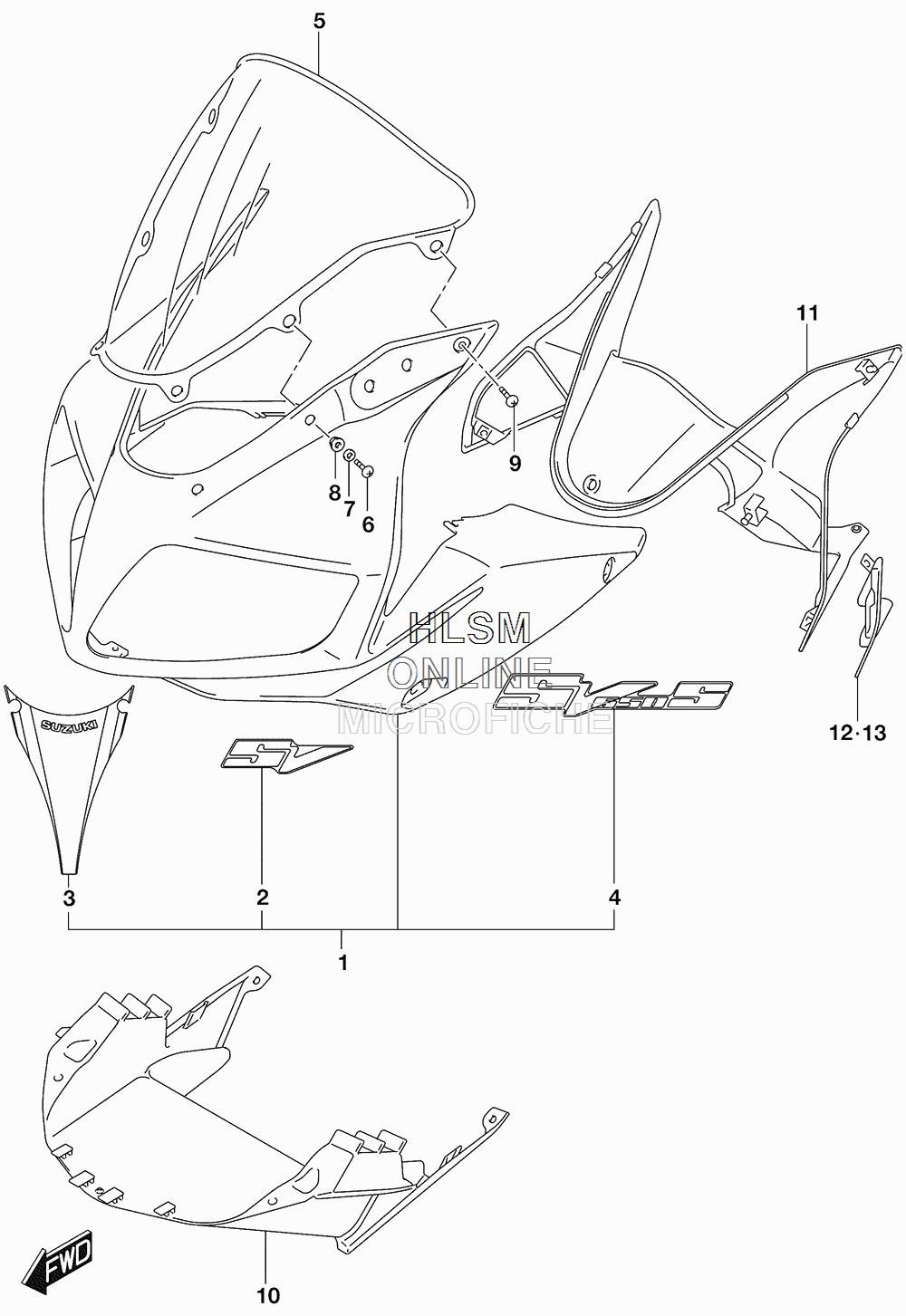

COWLING BODY (YBD) для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
194401-17G20-YBD COWLING, BODY (WHITE)COWLING, BODY (WHITE)
-
268281-17G20-LR5 EMBLEM, BODY COWL FRONT (BLUE/WHITE)EMBLEM, BODY COWL FRONT (BLUE/WHITE)
-
368285-17G00-CYW TAPE, FRONTTAPE, FRONT
-
468281-17G00-HSH EMBLEM, BODY COWLEMBLEM, BODY COWL
-
594610-16G01 WINDSCREENWINDSCREEN
-
609139-05025 SCREW (5X14)SCREW (5X14)
-
708322-0105B WASHERWASHER
-
809159-05019 NUTNUT
-
909132-05053 SCREW (5X16)SCREW (5X16)
-
1094461-16G00 COVER, INNERCOVER, INNER
-
1194630-16G00 PANEL, METERPANEL, METER
-
1294641-16G00 LID, METER PANEL RIGHT HANDLID, METER PANEL RIGHT HAND
-
1394651-16G00 LID, METER PANEL LEFT HANDLID, METER PANEL LEFT HAND
