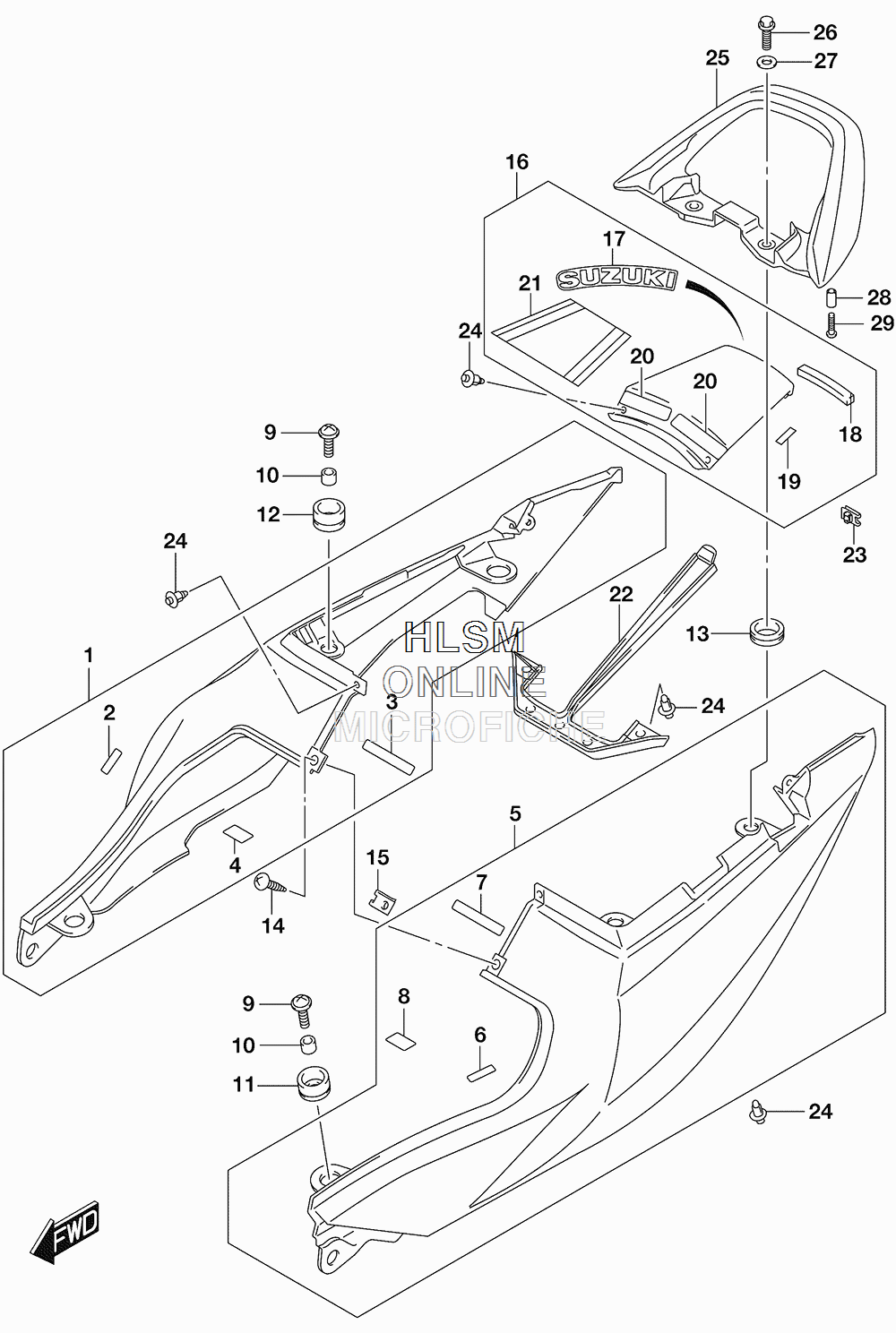

SEAT TAIL COVER (YBD) для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
145501-16G21-YBD COVER SET, SEAT TAIL RIGHT HAND (WHITE)COVER SET, SEAT TAIL RIGHT HAND (WHITE)
-
245516-42F00 TAPE, SEAT TAIL COVER FRTAPE, SEAT TAIL COVER FR
-
345517-16G10 TAPE, SEAT TAIL COVER FR NO.2TAPE, SEAT TAIL COVER FR NO.2
-
447161-10D00 TAPE, SEAT TAIL COVER FR NO.3TAPE, SEAT TAIL COVER FR NO.3
-
545502-16G21-YBD COVER SET, SEAT TAIL LEFT HAND (WHITE)COVER SET, SEAT TAIL LEFT HAND (WHITE)
-
645516-42F00 TAPE, SEAT TAIL COVER FRTAPE, SEAT TAIL COVER FR
-
745517-16G10 TAPE, SEAT TAIL COVER FR NO.2TAPE, SEAT TAIL COVER FR NO.2
-
847161-10D00 TAPE, SEAT TAIL COVER FR NO.3TAPE, SEAT TAIL COVER FR NO.3
-
909136-06082 SCREW (6X25)SCREW (6X25)
-
1009180-06286 SPACER (6.5X10X9.4)SPACER (6.5X10X9.4)
-
1109320-10052 CUSHIONCUSHION
-
1247115-16G00 CUSHIONCUSHION
-
1309320-20010 CUSHIONCUSHION
-
1403241-1512B SCREWSCREW
-
1509148-05038 NUTNUT
-
1645503-17G00-YBD COVER, SEAT TAIL, CENTER (WHITE)COVER, SEAT TAIL, CENTER (WHITE)
-
1768161-16G00-17U EMBLEM, ''SUZUKI'' (GRAY)EMBLEM, ''SUZUKI'' (GRAY)
-
1845518-16G00 CUSHION, SEAT TAIL COVER CTRCUSHION, SEAT TAIL COVER CTR
-
1945517-16G00 TAPE, SEAT TAIL COVERTAPE, SEAT TAIL COVER
-
2045516-42F00 TAPE, SEAT TAIL COVER CTRTAPE, SEAT TAIL COVER CTR
-
2168165-17G00-LR5 TAPE, SEAT TAIL COVER CTR (BLUE/WHITE)TAPE, SEAT TAIL COVER CTR (BLUE/WHITE)
-
2245514-16G00-YBD COVER, SEAT TAIL, REAR (WHITE)COVER, SEAT TAIL, REAR (WHITE)
-
2309148-06018 NUTNUT
-
2409409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
2546211-16G00-YBD HANDLE, PILLION RIDER (WHITE)HANDLE, PILLION RIDER (WHITE)
-
2601551-0840B BOLTBOLT
-
2709160-08158 WASHER (8.5X24X2.3)WASHER (8.5X24X2.3)
-
2809180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
2909139-06112 SCREW (6X25)SCREW (6X25)
