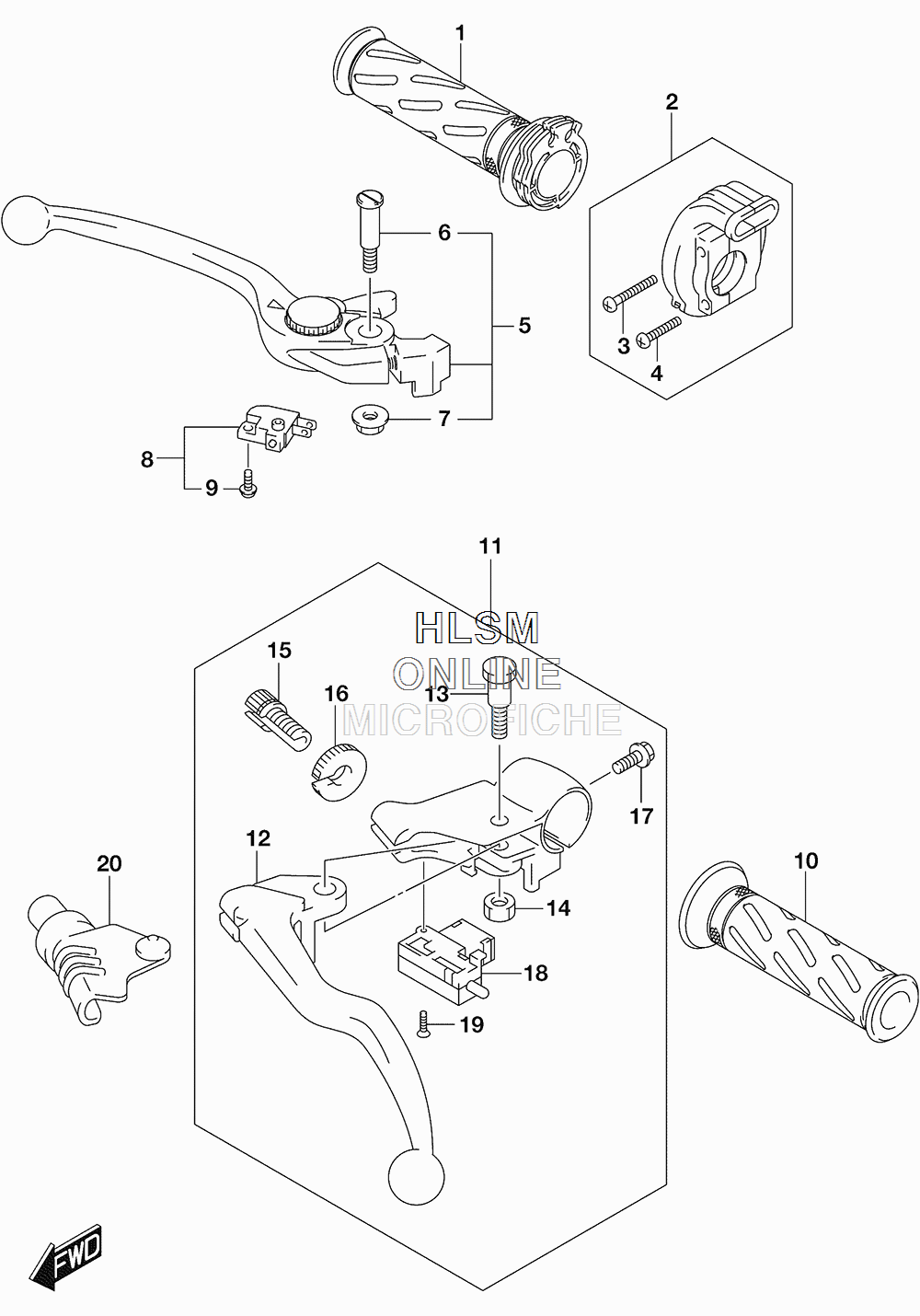

HANDLEBAR - LEVERS для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
157110-45D02 GRIP, THROTTLEGRIP, THROTTLE
-
257100-14D00 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
302112-0525B SCREWSCREW
-
402112-0520B SCREWSCREW
-
557300-10G32 LEVER ASSY, BRAKELEVER ASSY, BRAKE
-
657431-17H02 BOLT, PIVOTBOLT, PIVOT
-
708319-2106A NUTNUT
-
857460-14J01 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
957465-17C00 SCREWSCREW
-
1057211-22D01-291 GRIP, LEFT HAND (BLACK)GRIP, LEFT HAND (BLACK)
-
1157500-10D90 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
1257620-45C00 LEVER, CLUTCHLEVER, CLUTCH
-
1357431-45C01 BOLT, LEVER PIVOTBOLT, LEVER PIVOT
-
1408319-2106A NUTNUT
-
1557441-45C00 ADJUSTER, WIREADJUSTER, WIRE
-
1657442-45C00 NUT, LOCKNUT, LOCK
-
1701547-0620B BOLTBOLT
-
1857560-05A10 SWITCH ASSY, CLUTCHSWITCH ASSY, CLUTCH
-
1957562-41G00 SCREWSCREW
-
2057661-45C00 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
