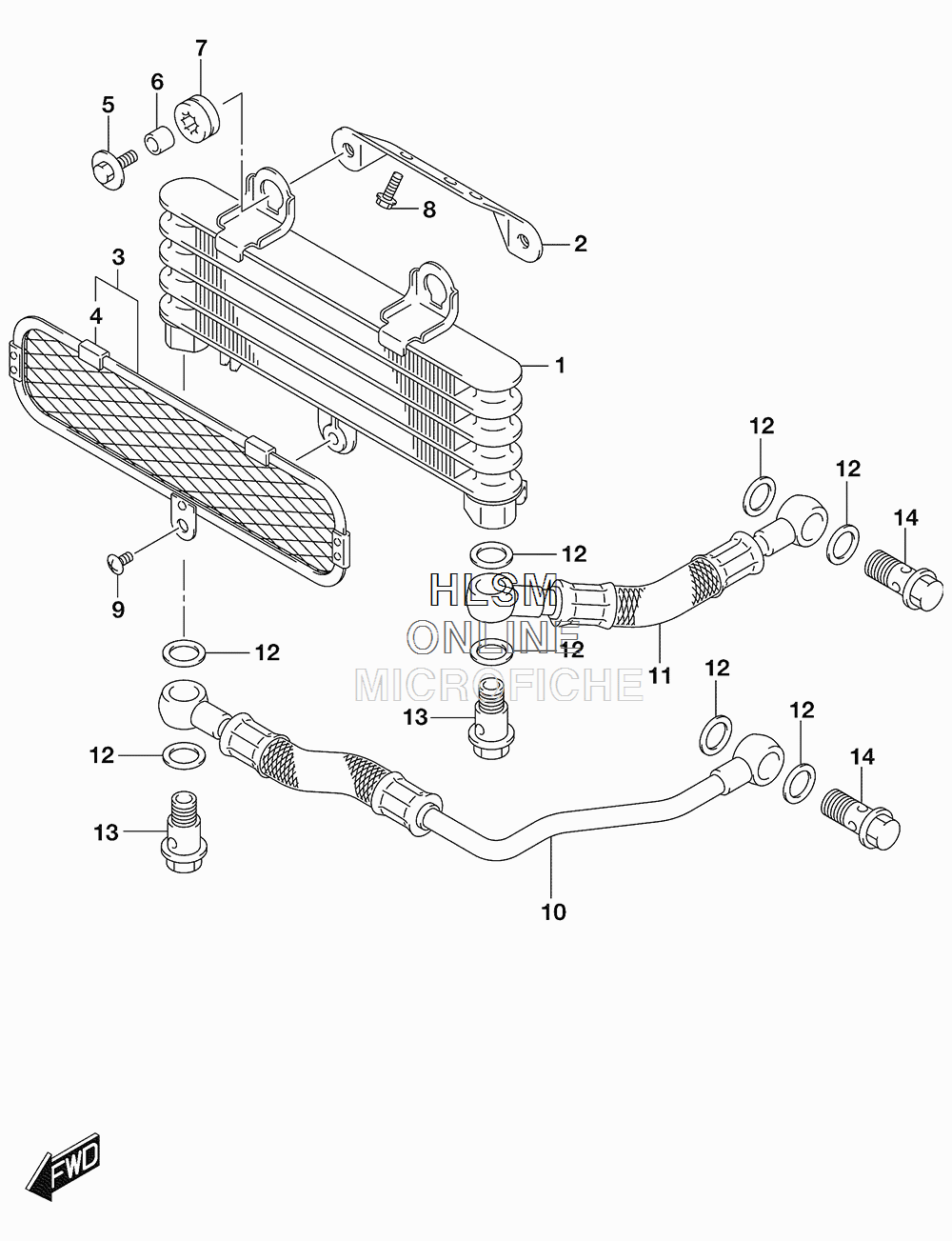

OIL COOLER для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
116600-27G00 COOLER ASSY, OILCOOLER ASSY, OIL
-
216620-27G00 BRACKET, OIL COOLERBRACKET, OIL COOLER
-
316650-27G01 GUARD, OIL COOLERGUARD, OIL COOLER
-
417765-09F00 PROTECTORPROTECTOR
-
509116-06167 BOLT (6X20)BOLT (6X20)
-
609180-06310 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
709320-09009 CUSHIONCUSHION
-
801550-0616A BOLTBOLT
-
902142-0510A SCREWSCREW
-
1016460-17G00 HOSE, OIL COOLER RIGHT HANDHOSE, OIL COOLER RIGHT HAND
-
1116470-17G00 HOSE, OIL COOLER LEFT HANDHOSE, OIL COOLER LEFT HAND
-
1209168-14015 GASKET (14X20X1.5)GASKET (14X20X1.5)
-
1309360-12012 UNIONUNION
-
1409360-14012 UNIONUNION
