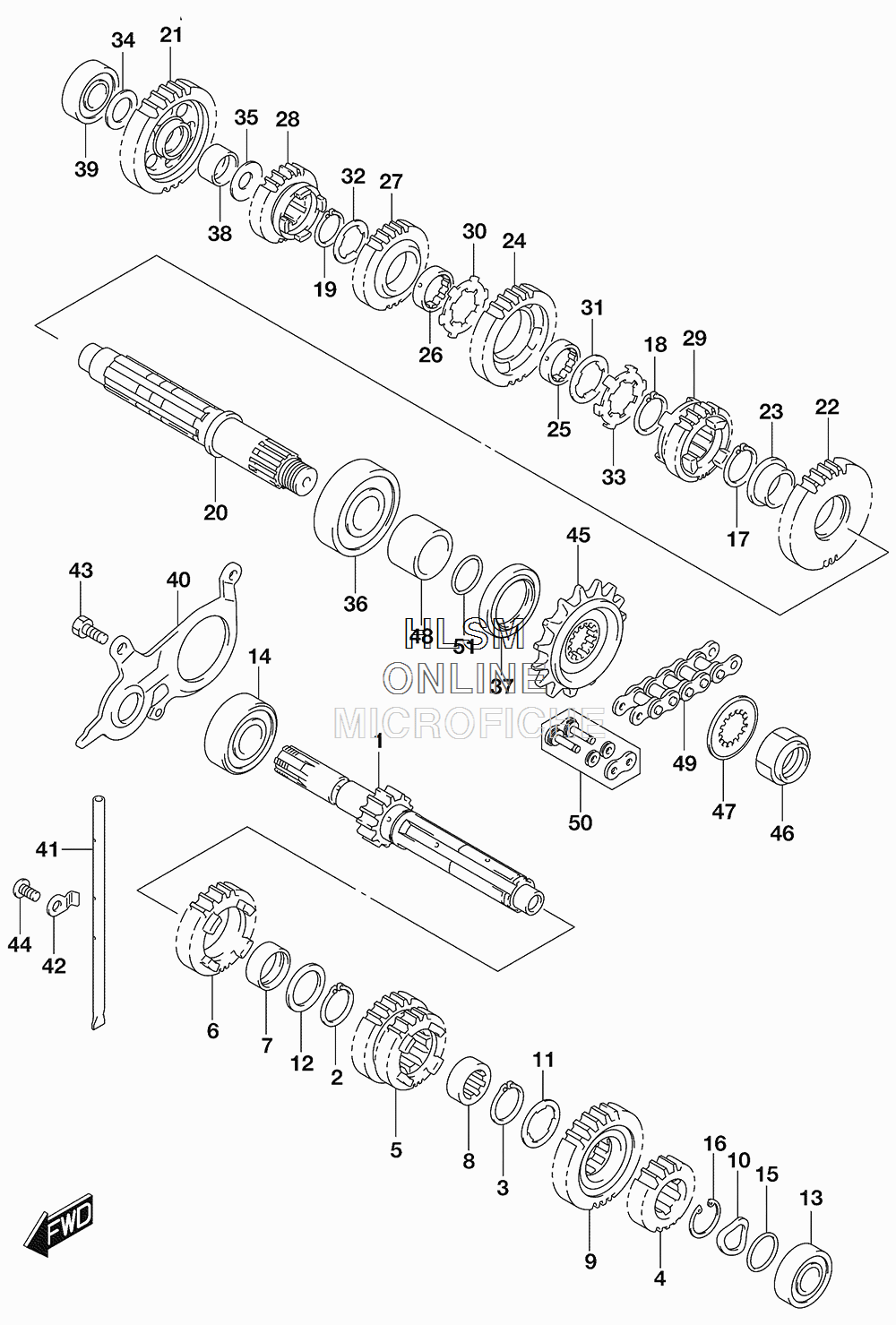

TRANSMISSION для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
124120-27G00 SHAFT, COUNTER (NT:13)SHAFT, COUNTER (NT:13)
-
224127-19F00 CIRCLIP, 5TH DRIVE GEARCIRCLIP, 5TH DRIVE GEAR
-
324127-19F00 CIRCLIP, 6TH DRIVE GEARCIRCLIP, 6TH DRIVE GEAR
-
424221-20F10 GEAR, 2ND DRIVE (NT:18)GEAR, 2ND DRIVE (NT:18)
-
524231-20F10 GEAR, 3RD AND 4TH DRIVE (NT:21/29)GEAR, 3RD AND 4TH DRIVE (NT:21/29)
-
624251-20F02 GEAR, 5TH DRIVE (NT:26)GEAR, 5TH DRIVE (NT:26)
-
724252-19F00 BUSH, 5TH DRIVE GEARBUSH, 5TH DRIVE GEAR
-
824252-38A10 BUSH, 6TH DRIVE GEARBUSH, 6TH DRIVE GEAR
-
924261-20F00 GEAR, 6TH DRIVE (NT:27)GEAR, 6TH DRIVE (NT:27)
-
1009164-17007 WASHERWASHER
-
1109167-25021 LOCK WASHERLOCK WASHER
-
1209181-25167 SHIM (25X34X1)SHIM (25X34X1)
-
1309262-17046 BEARING (17X40X12) (LEFT HAND)BEARING (17X40X12) (LEFT HAND)
-
1409262-20145 BEARING (20X52X15) (RIGHT HAND)BEARING (20X52X15) (RIGHT HAND)
-
1509280-17001 O RING (D:1,ID:16.8)O RING (D:1,ID:16.8)
-
1609380-25012 CIRCLIPCIRCLIP
-
1724127-19F00 CIRCLIP, 2ND DRIVENCIRCLIP, 2ND DRIVEN
-
1824127-19F00 CIRCLIP, 3RD DRIVENCIRCLIP, 3RD DRIVEN
-
1924127-19F00 CIRCLIP, 4TH DRIVENCIRCLIP, 4TH DRIVEN
-
2024130-19F01 SHAFT, DRIVESHAFT, DRIVE
-
2124311-20F00 GEAR, 1ST DRIVEN (NT:32)GEAR, 1ST DRIVEN (NT:32)
-
2224321-20F01 GEAR, 2ND DRIVEN (NT:32)GEAR, 2ND DRIVEN (NT:32)
-
2324322-19F00 BUSH, 2ND DRIVEN GEARBUSH, 2ND DRIVEN GEAR
-
2424331-20F00 GEAR, 3RD DRIVEN (NT:29)GEAR, 3RD DRIVEN (NT:29)
-
2524332-24510 BUSH, 3RD, DRIVEN GEARBUSH, 3RD, DRIVEN GEAR
-
2624332-24510 BUSH, 4TH DRIVEN GEARBUSH, 4TH DRIVEN GEAR
-
2724341-20F00 GEAR, 4TH DRIVEN (NT:27)GEAR, 4TH DRIVEN (NT:27)
-
2824351-20F02 GEAR, 5TH DRIVEN (NT:25)GEAR, 5TH DRIVEN (NT:25)
-
2924361-20F01 GEAR, 6TH DRIVEN (NT:23)GEAR, 6TH DRIVEN (NT:23)
-
3009167-25013 LOCK WASHERLOCK WASHER
-
3109167-25021 LOCK WASHERLOCK WASHER
-
3209167-25021 LOCK WASHERLOCK WASHER
-
3309169-25001 WASHERWASHER
-
3409181-17195 SHIM (17X28X1)SHIM (17X28X1)
-
3509181-20195 SHIM (20X30X1)SHIM (20X30X1)
-
3609262-25125 BEARING (25X62X17) (LEFT HAND)BEARING (25X62X17) (LEFT HAND)
-
3709283-36003 OIL SEAL (36X50X6)OIL SEAL (36X50X6)
-
3809300-20032 BUSH (20X24X13)BUSH (20X24X13)
-
3909262-17023 BEARING (17X40X12) (RIGHT HAND)BEARING (17X40X12) (RIGHT HAND)
-
4024751-19F10 RETAINER, DRIVE SHAFT OIL SEALRETAINER, DRIVE SHAFT OIL SEAL
-
4124881-12C20 GUIDE, T/M OILGUIDE, T/M OIL
-
4224885-12C10 RETAINER, TRANSMISSION OILRETAINER, TRANSMISSION OIL
-
4301500-0612A BOLTBOLT
-
4402112-0612A SCREWSCREW
-
4527510-20F00 SPROCKET, ENGINE (NT:15)SPROCKET, ENGINE (NT:15)
-
4609159-20004 NUTNUT
-
4709167-25028 LOCK WASHERLOCK WASHER
-
4827531-19F01 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
4927600-32C10-114 CHAIN ASSY (DID525V8)CHAIN ASSY (DID525V8)
-
5027620-32C10 JOINT SET, CHAIN (OPT)JOINT SET, CHAIN (OPT)
-
5109280-24010 O RING (D:2.4,ID:23.7)O RING (D:2.4,ID:23.7)
