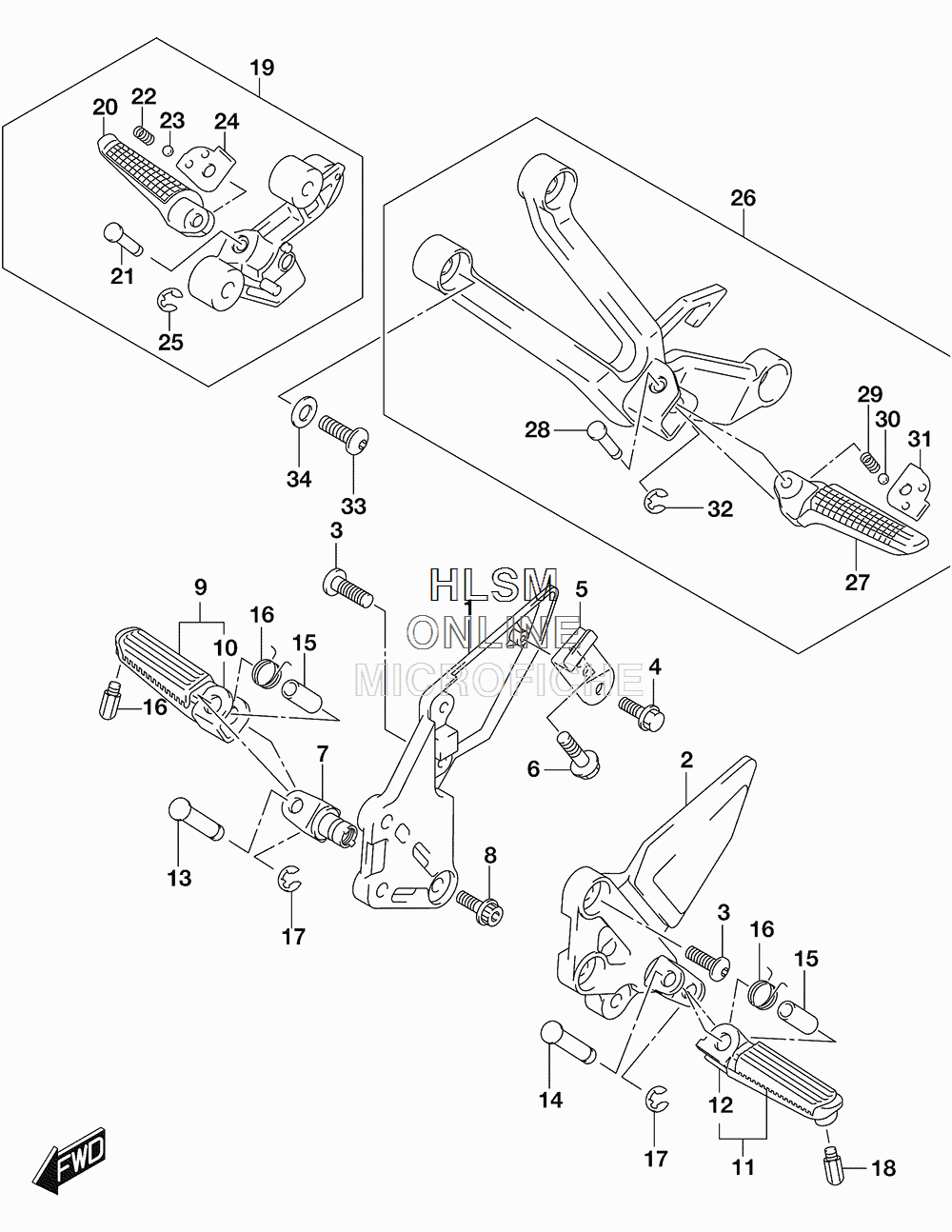

FOOTREST для Suzuki SFV650SA L5 - 2015 года выпуска
-
№АртикулНазвание
-
143511-16G21 BRACKET, FRONT FOOTREST RIGHT HANDBRACKET, FRONT FOOTREST RIGHT HAND
-
243521-16G21 BRACKET, FRONT FOOTREST LEFT HANDBRACKET, FRONT FOOTREST LEFT HAND
-
309106-08167 BOLT (8X20)BOLT (8X20)
-
401550-0610B BOLT (RIGHT HAND)BOLT (RIGHT HAND)
-
543571-17G20 REINF, FOOTREST BRKT (RIGHT HAND)REINF, FOOTREST BRKT (RIGHT HAND)
-
601550-0820B BOLTBOLT
-
743530-16G00 HOLDER, FOOTREST RIGHT HANDHOLDER, FOOTREST RIGHT HAND
-
809106-10064 BOLT (10X28)BOLT (10X28)
-
943510-02F11 BAR, FRONT FOOTREST RIGHT HANDBAR, FRONT FOOTREST RIGHT HAND
-
1043531-33D01 BAR, FRONT FOOTREST RIGHT HANDBAR, FRONT FOOTREST RIGHT HAND
-
1143520-02F11 BAR, FRONT FOOTREST LEFT HANDBAR, FRONT FOOTREST LEFT HAND
-
1243591-02F01 BAR, FRONT FOOTREST LEFT HANDBAR, FRONT FOOTREST LEFT HAND
-
1309208-08014 PIN (RIGHT HAND)PIN (RIGHT HAND)
-
1409208-08019 PIN (LEFT HAND)PIN (LEFT HAND)
-
1509180-08149 SPACER (8.1X12X22)SPACER (8.1X12X22)
-
1609448-18022 SPRINGSPRING
-
1708332-1106B E RINGE RING
-
1843576-48B02 BOLT, BANK SENSORBOLT, BANK SENSOR
-
1943600-17G20 FOOTREST ASSY, PILLION, RIGHT HANDFOOTREST ASSY, PILLION, RIGHT HAND
-
2043611-35F01 BAR, PILLION FOOTREST, RIGHT HANDBAR, PILLION FOOTREST, RIGHT HAND
-
2187259-85510 PIN, PILLION FOOTRESTPIN, PILLION FOOTREST
-
2209440-05005 SPRINGSPRING
-
2306111-07004 BALLBALL
-
2443816-33E21 PLATE, , PILLION FOOTREST, RIGHT HANDPLATE, , PILLION FOOTREST, RIGHT HAND
-
2508332-1104B E RINGE RING
-
2643700-17G20 FOOTREST ASSY, PILLION, LEFT HANDFOOTREST ASSY, PILLION, LEFT HAND
-
2743621-35F01 BAR, , PILLION FOOTREST, LEFT HANDBAR, , PILLION FOOTREST, LEFT HAND
-
2887259-85510 PIN, PILLION FOOTRESTPIN, PILLION FOOTREST
-
2909440-05005 SPRINGSPRING
-
3006111-07004 BALLBALL
-
3143826-33E22 PLATE, , PILLION FOOTREST, LEFT HANDPLATE, , PILLION FOOTREST, LEFT HAND
-
3208332-1104B E RINGE RING
-
3309106-08150 BOLT (8X23)BOLT (8X23)
-
3409164-08020 WASHERWASHER
