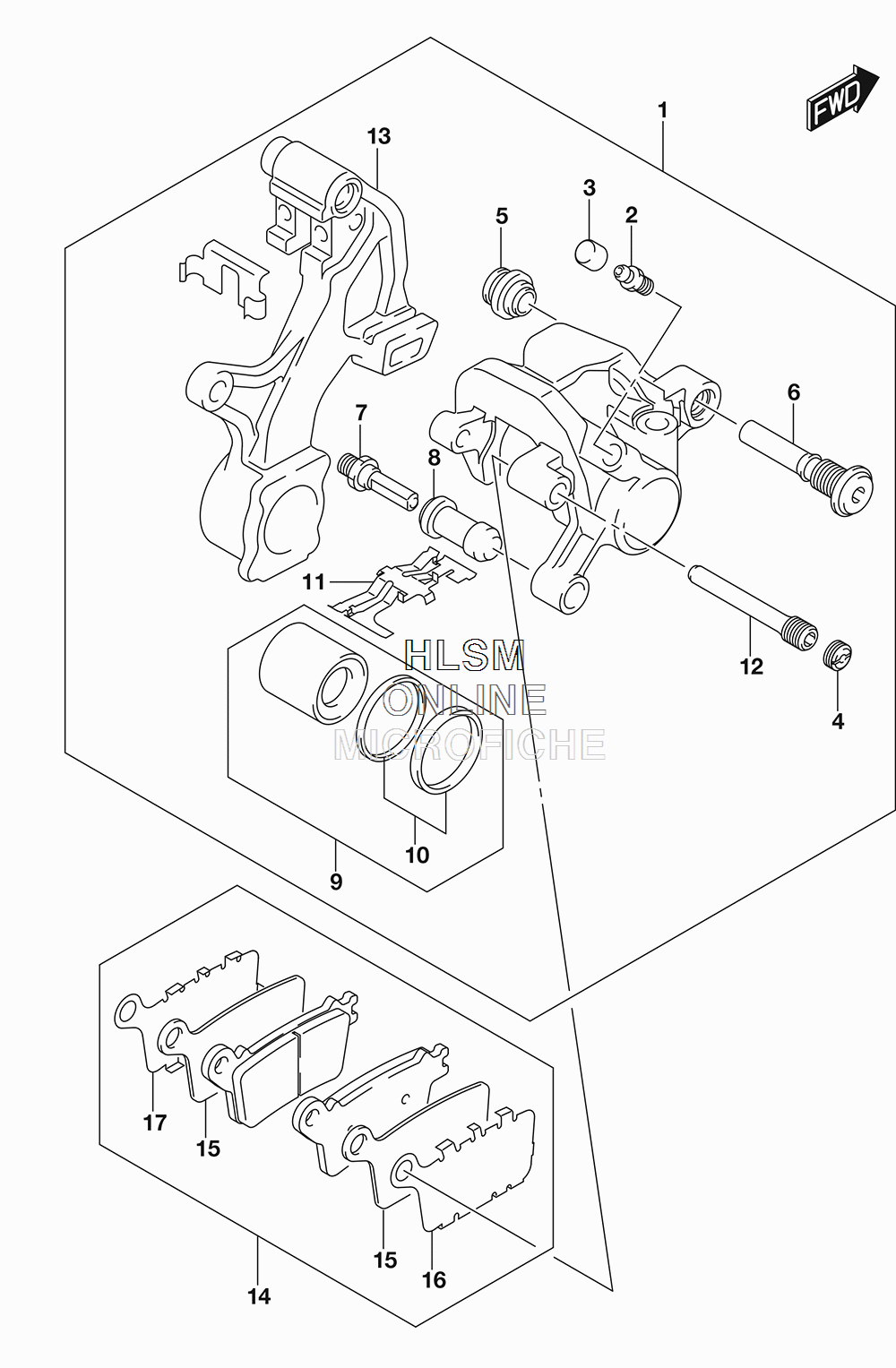

BRAKE - REAR CALIPER для Suzuki GSX-R750 - 2017 года выпуска
-
№АртикулНазвание
-
169100-47H10-999 CALIPER ASSY, REARCALIPER ASSY, REAR
-
259121-01A00 ...BLEEDER...BLEEDER
-
359122-46H00 ...CAP, BLEEDER...CAP, BLEEDER
-
459146-21E10 ...PLUG, PIN...PLUG, PIN
-
559303-14500 ...BOOT...BOOT
-
659305-36E00 ...PIN, BOLT...PIN, BOLT
-
759382-14500 ...PIN...PIN
-
859386-13A00 ...BOOT...BOOT
-
969100-47810 ...PISTON SET...PISTON SET
-
1069100-13810 ......SEAL SET, PISTON......SEAL SET, PISTON
-
1169115-47H00 ...SPRING, PAD...SPRING, PAD
-
1269141-40F00 ...PIN, PAD...PIN, PAD
-
1369150-47H10 ...BRACKET, REAR...BRACKET, REAR
-
1469100-47820 PAD & SHIM SETPAD & SHIM SET
-
1569132-47H00 ...INSULATOR...INSULATOR
-
1669133-47H00 ...RETAINER, PAD...RETAINER, PAD
-
1769134-47H00 ...RETAINER, PAD...RETAINER, PAD
