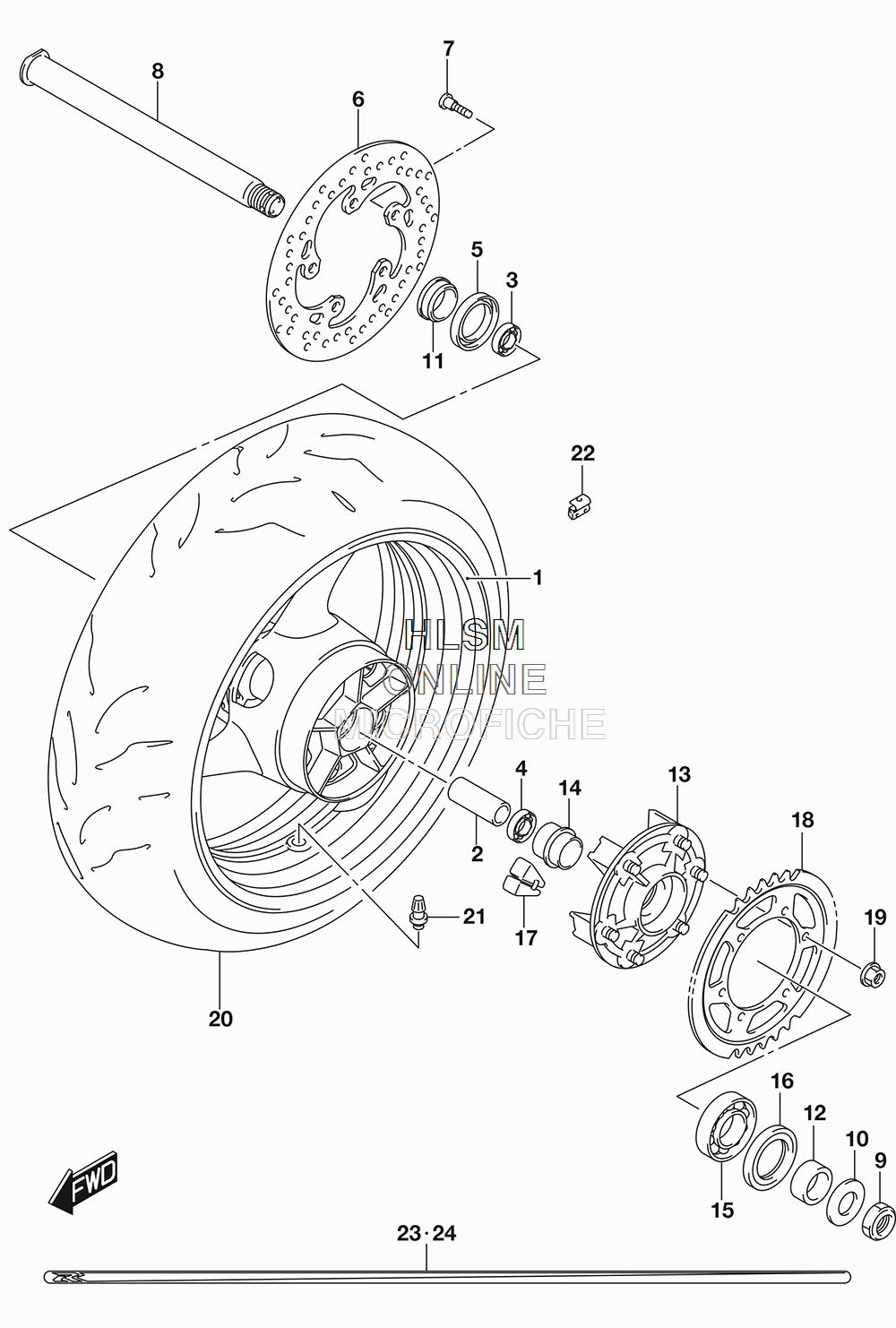

WHEEL - REAR для Suzuki GSX-R750 - 2017 года выпуска
-
№АртикулНазвание
-
1-164111-14J00-019 WHEEL, REAR (17M/CXMT5.50) (019 - BLACK FOR YSF,KGK)WHEEL, REAR (17M/CXMT5.50) (019 - BLACK FOR YSF,KGK)
-
1-264111-14J00-QGY WHEEL, REAR (17M/CXMT5.50) (QGY - RED FOR YWW)WHEEL, REAR (17M/CXMT5.50) (QGY - RED FOR YWW)
-
264731-14J00 SPACER, HUB BEARINGSPACER, HUB BEARING
-
309262-25061 BEARING (25X52X15) (RH)BEARING (25X52X15) (RH)
-
408123-60057 BEARING (LH)BEARING (LH)
-
509285-32004 OIL SEAL (32X52X7)OIL SEAL (32X52X7)
-
669211-18G00 DISC, REAR BRAKEDISC, REAR BRAKE
-
709106-08160 BOLT (8X21)BOLT (8X21)
-
864711-14J00 AXLE, REARAXLE, REAR
-
909159-22007 NUTNUT
-
1009160-22081 WASHER (22X35X2)WASHER (22X35X2)
-
1154751-41G10 SPACER, AXLE (RH)SPACER, AXLE (RH)
-
1264751-44G00 SPACER, AXLE (LH)SPACER, AXLE (LH)
-
1364610-47H00 DRUM, REAR SPROCKETDRUM, REAR SPROCKET
-
1464733-44G00 RETAINER, SPROCKET DRUMRETAINER, SPROCKET DRUM
-
1509262-32022 BEARING (32X65X17)BEARING (32X65X17)
-
1609285-39001 OIL SEAL (39X65X7)OIL SEAL (39X65X7)
-
1764651-47H10 ABSORBER, HUB SHOCKABSORBER, HUB SHOCK
-
1864511-15J00 SPROCKET, REAR (NT:45)SPROCKET, REAR (NT:45)
-
1908319-3110A NUTNUT
-
2065110-15J00 TIRE, REAR (180/55ZR17M/C, 73W BATTLAX BT016R G BRIDGESTONE)TIRE, REAR (180/55ZR17M/C, 73W BATTLAX BT016R G BRIDGESTONE)
-
2143130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
22-155411-22H00 BALANCER, WHEEL NO.1 (10G)BALANCER, WHEEL NO.1 (10G)
-
22-255412-22H00 BALANCER, WHEEL NO.2 (20G)BALANCER, WHEEL NO.2 (20G)
-
22-355413-22H00 BALANCER, WHEEL NO.3 (30G)BALANCER, WHEEL NO.3 (30G)
-
2368251-17K00-A29 TAPE, RH (A29 - BLACK/ORANGE/YELLOW FOR YSF)TAPE, RH (A29 - BLACK/ORANGE/YELLOW FOR YSF)
-
2468252-17K00-A29 TAPE, LH (A29 - BLACK/ORANGE/YELLOW FOR YSF)TAPE, LH (A29 - BLACK/ORANGE/YELLOW FOR YSF)
