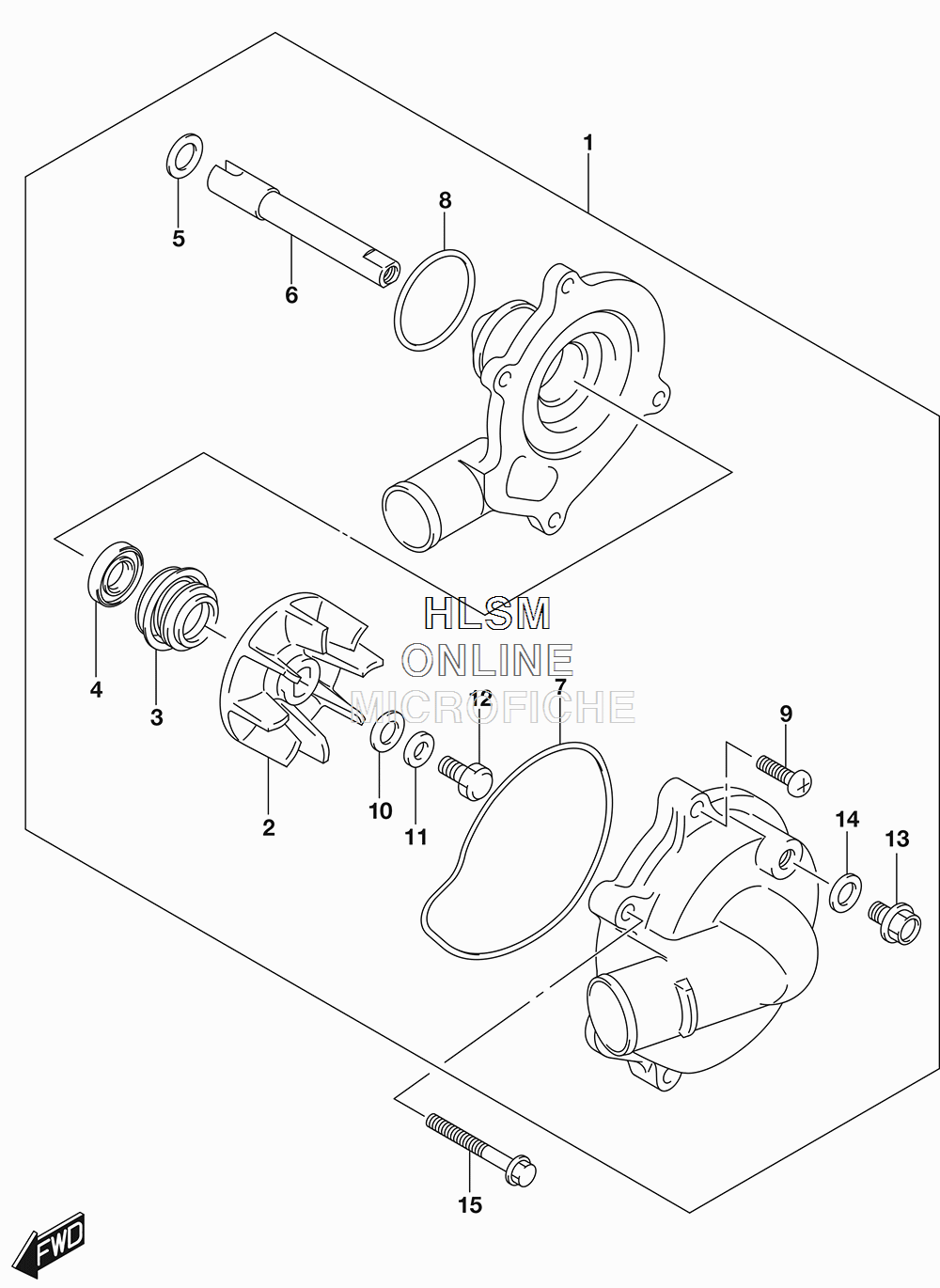

WATER PUMP для Suzuki GSX-R750 - 2017 года выпуска
-
№АртикулНазвание
-
117400-01H10 PUMP ASSY, WATERPUMP ASSY, WATER
-
217491-01H00 ...IMPELLER...IMPELLER
-
317470-02F10 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
417461-01H00 ...SEAL, OIL...SEAL, OIL
-
517432-07G00 ...WASHER...WASHER
-
617511-01H00 ...SHAFT...SHAFT
-
717418-33400 ...O RING...O RING
-
817435-33400 ...O RING...O RING
-
902112-0616A ...SCREW...SCREW
-
1009168-06025 ...GASKET (6X15X2.2)...GASKET (6X15X2.2)
-
1109164-06006 ...WASHER...WASHER
-
1209100-06099 ...BOLT (6X13)...BOLT (6X13)
-
1317415-20920 ...BOLT, DRAIN...BOLT, DRAIN
-
1409168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
1501547-0635A BOLTBOLT
