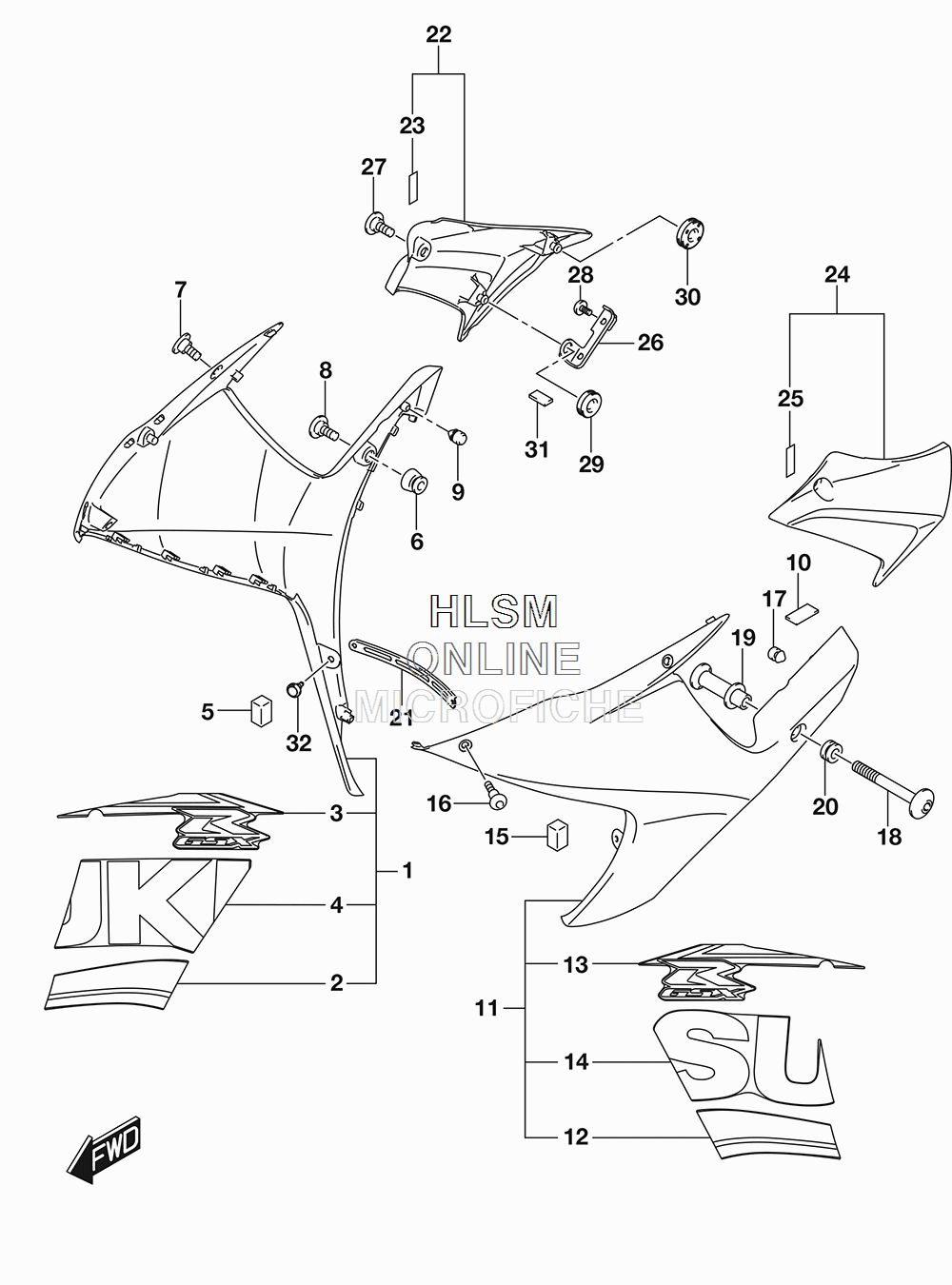

COWLING - SIDE (YSF - BLUE) для Suzuki GSX-R750 - 2017 года выпуска
-
№АртикулНазвание
-
194450-14J90-YSF COWLING, SIDE (RH) (YSF - BLUE)COWLING, SIDE (RH) (YSF - BLUE)
-
268685-14JA0-BDH ...TAPE, SIDE COWLING LOWER (RH) (BDH - BLUE/WHITE FOR YSF)...TAPE, SIDE COWLING LOWER (RH) (BDH - BLUE/WHITE FOR YSF)
-
368685-14J80-BDJ ...TAPE, SIDE COWLING UPPER (RH) (BDJ - BLUE/WHITE FOR YSF)...TAPE, SIDE COWLING UPPER (RH) (BDJ - BLUE/WHITE FOR YSF)
-
468685-14J90-AGQ ...TAPE, SIDE COWLING (RH) (AGQ - BLUE/WHITE FOR YSF)...TAPE, SIDE COWLING (RH) (AGQ - BLUE/WHITE FOR YSF)
-
594477-14J01 CUSHIONCUSHION
-
694479-15H00 CUSHION, SIDE COWLING (RH)CUSHION, SIDE COWLING (RH)
-
709139-05064 SCREW (5X13)SCREW (5X13)
-
809139-06190 BOLT (6X20)BOLT (6X20)
-
909321-06013 CUSHIONCUSHION
-
1044543-10G00 PROTECTOR, SIDE COWLING (LH) (CUT AS REQUIRED)PROTECTOR, SIDE COWLING (LH) (CUT AS REQUIRED)
-
1194460-14J90-YSF COWLING, SIDE (LH) (YSF - BLUE)COWLING, SIDE (LH) (YSF - BLUE)
-
1268695-14JA0-BDH ...TAPE, SIDE COWLING LOWER (LH) (BDH - BLUE/WHITE FOR YSF)...TAPE, SIDE COWLING LOWER (LH) (BDH - BLUE/WHITE FOR YSF)
-
1368695-14J80-BDJ ...TAPE, SIDE COWLING UPPER (LH) (BDJ - BLUE/WHITE FOR YSF)...TAPE, SIDE COWLING UPPER (LH) (BDJ - BLUE/WHITE FOR YSF)
-
1468695-14J90-AGQ ...TAPE, SIDE COWLING (LH) (AGQ - BLUE/WHITE FOR YSF)...TAPE, SIDE COWLING (LH) (AGQ - BLUE/WHITE FOR YSF)
-
1594477-14J01 CUSHIONCUSHION
-
1609139-05064 SCREW (5X13)SCREW (5X13)
-
1709321-06013 CUSHIONCUSHION
-
1894488-14J00 SCREW, SIDE COWLING (LH)SCREW, SIDE COWLING (LH)
-
1994489-14J00 SPACER, SIDE COWLING (LH)SPACER, SIDE COWLING (LH)
-
2009320-09016 CUSHION (LH)CUSHION (LH)
-
2194498-14J00 PLATE, UNDER COWLING CENTERPLATE, UNDER COWLING CENTER
-
2294570-14J00 COVER, SIDE COWLING (RH)COVER, SIDE COWLING (RH)
-
2394443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
2494580-14J00 COVER, SIDE COWLING (LH)COVER, SIDE COWLING (LH)
-
2594443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
2694491-14J00 BRACKET, COVER SIDE (RH)BRACKET, COVER SIDE (RH)
-
2709139-05064 SCREW (5X13)SCREW (5X13)
-
2809139-06062 SCREW (6X12)SCREW (6X12)
-
2909320-08013 CUSHIONCUSHION
-
3009320-08028 CUSHIONCUSHION
-
3194612-31F00 CUSHION, BRACKET COVER (RH)CUSHION, BRACKET COVER (RH)
-
3294479-35F00 CLIP, UNDER CTRCLIP, UNDER CTR
