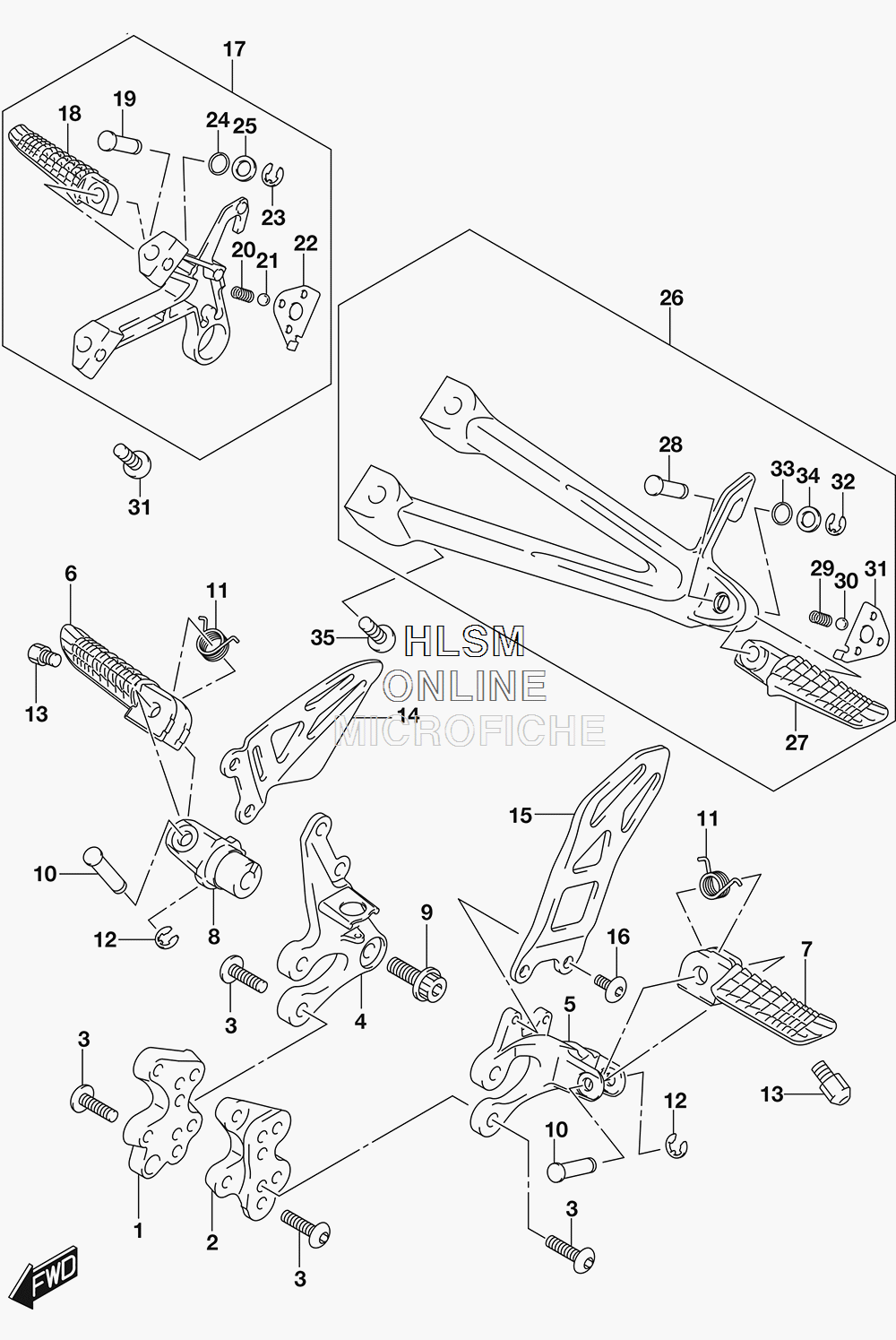

FOOTREST для Suzuki GSX-R750 - 2017 года выпуска
-
№АртикулНазвание
-
143541-14J10 BRACKET, FOOTREST NO.1 (RH)BRACKET, FOOTREST NO.1 (RH)
-
243551-14J10 BRACKET, FOOTREST NO.1 (LH)BRACKET, FOOTREST NO.1 (LH)
-
309106-08186 BOLT (8X23)BOLT (8X23)
-
443511-14J10 BRACKET, FOOTREST NO.2 (RH)BRACKET, FOOTREST NO.2 (RH)
-
543521-47H20 BRACKET, FOOTREST NO.2 (LH)BRACKET, FOOTREST NO.2 (LH)
-
643516-37H10 BAR, FOOTREST (RH)BAR, FOOTREST (RH)
-
743526-37H10 BAR, FOOTREST (LH)BAR, FOOTREST (LH)
-
843531-41G20 HOLDER, FOOTRESTHOLDER, FOOTREST
-
909106-10064 BOLT (10X28) (RH)BOLT (10X28) (RH)
-
1009208-08018 PINPIN
-
1143581-47H00 SPRINGSPRING
-
1208332-1106A E RINGE RING
-
1343576-07D10 BOLT, BANK SENSORBOLT, BANK SENSOR
-
1443571-47H30 GUARD, FOOTREST (RH)GUARD, FOOTREST (RH)
-
1543576-47H40 GUARD, FOOTREST (LH)GUARD, FOOTREST (LH)
-
1643577-35F00 SCREW (LH)SCREW (LH)
-
1743600-14J30 FOOTREST, PILLION (RH) (SILVER)FOOTREST, PILLION (RH) (SILVER)
-
1843611-37H30 ...BAR (RH)...BAR (RH)
-
1909208-08020 ...PIN...PIN
-
2009440-05003 ...SPRING...SPRING
-
2106111-07004 ...BALL...BALL
-
2243816-47H00 ...PLATE...PLATE
-
2308332-1106A ...E RING...E RING
-
2409280-08013 ...O RING (D:2.4,ID:6.9)...O RING (D:2.4,ID:6.9)
-
2509160-08091 ...WASHER (8.5X14X1.0)...WASHER (8.5X14X1.0)
-
2643700-14J30 FOOTREST, PILLION (LH) (SILVER)FOOTREST, PILLION (LH) (SILVER)
-
2743621-37H30 ...BAR (LH)...BAR (LH)
-
2809208-08020 ...PIN...PIN
-
2909440-05003 ...SPRING...SPRING
-
3006111-07004 ...BALL...BALL
-
3143826-47H00 ...PLATE...PLATE
-
3208332-1106A ...E RING...E RING
-
3309280-08013 ...O RING (D:2.4,ID:6.9)...O RING (D:2.4,ID:6.9)
-
3409160-08091 ...WASHER (8.5X14X1.0)...WASHER (8.5X14X1.0)
-
3509106-08186 BOLT (8X23)BOLT (8X23)
