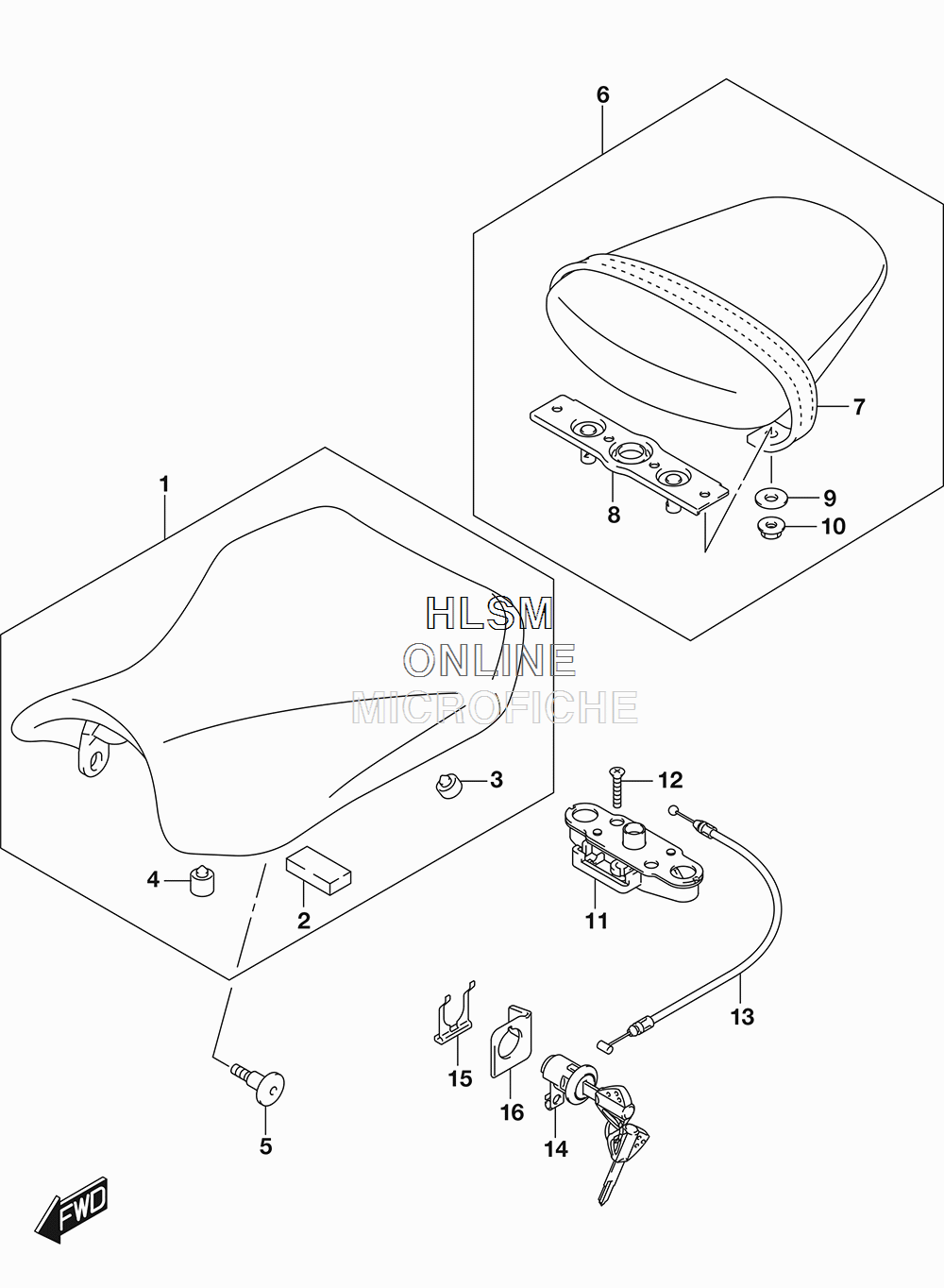

SEAT для Suzuki GSX-R750 - 2017 года выпуска
-
№АртикулНазвание
-
145100-14J10-DW2 SEAT ASSY (DW2 - BLACK)SEAT ASSY (DW2 - BLACK)
-
245149-37H00 ...CUSHION...CUSHION
-
309321-10011 ...CUSHION...CUSHION
-
409321-10034 ...CUSHION...CUSHION
-
509139-06193 SCREW (6X20)SCREW (6X20)
-
645300-14J10-P3H SEAT ASSY, PILLION (P3H - BLACK)SEAT ASSY, PILLION (P3H - BLACK)
-
745180-14J10-P3H ...BAND ASSY, SEAT (P3H - BLACK)...BAND ASSY, SEAT (P3H - BLACK)
-
845290-47H01 ...STRIKER...STRIKER
-
909160-06088 ...WASHER (6.5X20X1.6)...WASHER (6.5X20X1.6)
-
1008316-1006A ...NUT...NUT
-
1145220-47H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
1202122-0630A SCREWSCREW
-
1345280-14J00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1495700-14810 LOCK SET, SEATLOCK SET, SEAT
-
1545289-11F00 PLATE, SEAT LOCK ASSYPLATE, SEAT LOCK ASSY
-
1645288-14F00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
